High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARA200A05RELAY RF DPDT 1A 5V |
1,767 | - |
|
Datasheet | ARA | Tube | Active | Non Latching | 28.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
ARS14Y4HRELAY RF SPDT 500MA 4.5V |
506 | - |
|
Datasheet | ARS | Tube | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-T DC5RELAY RF DPDT 1A 5V |
3,583 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
1462050-2RELAY RF SPDT 2A 5V |
9,101 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
1462051-2RELAY RF SPDT 2A 5V |
239 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-T-TR03 DC12RELAY RF DPDT 1A 12V |
107 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2P-RF DC5RELAY RF DPDT 1A 5V |
868 |
1+：$21.28800 10+：$18.96000 30+：$17.93946 60+：$17.32320 120+：$16.72786 270+：$16.05683 510+：$15.54908 |
|
Datasheet | G6K-RF | Tube | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K-2F-RF-T DC12RELAY RF DPDT 1A 12V |
3,290 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-S-TR03 DC3RELAY RF DPDT 1A 3V |
444 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC12RELAY RF DPDT 1A 12V |
5,964 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC5RELAY RF DPDT 1A 5V |
3,803 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC3RELAY RF DPDT 1A 3V |
250 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

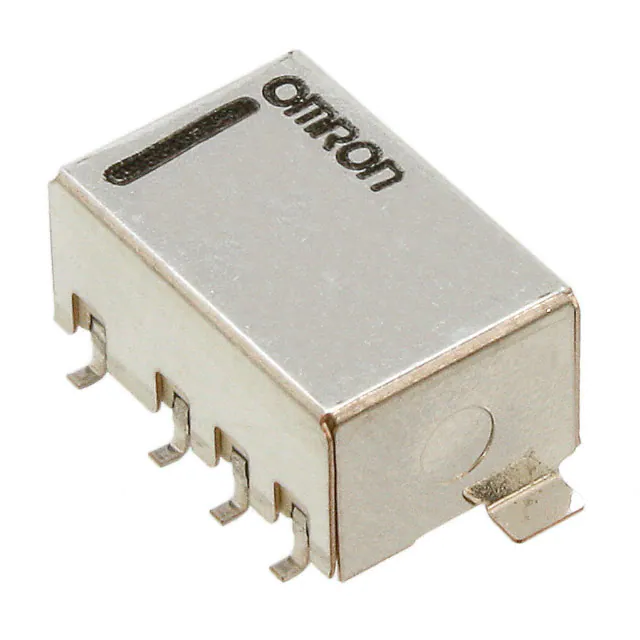

G6K-2F-RF DC5RELAY RF DPDT 1A 5V |
8,327 |
1+：$20.04800 10+：$17.85920 25+：$17.05376 50+：$16.46816 100+：$15.90232 300+：$15.04434 |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S-TR03 DC5RELAY RF DPDT 1A 5V |
2,621 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF DC5RELAY RF DPDT 1A 5V |
1,193 | - |
|
Datasheet | G6K-RF | Tray | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
1-1462051-4RELAY RF SPDT 2A 12V |
1,231 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 3 ms | 2 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
2341-05-020RELAY RF SPDT 500MA 5V |
3,358 | - |
|
Datasheet | 2300 | Tube | Active | Non Latching | 21.7 mA | 5VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2341-12-020RELAY RF SPDT 500MA 12V |
1,484 | - |
|
Datasheet | 2300 | Tube | Active | Non Latching | 12 mA | 12VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2-1462051-3RELAY RF SPDT 2A 5V |
819 | - |
|
Datasheet | HF3S, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6KU-2F-RF-T DC5RELAY RF DPDT 1A 5V |
275 | - |
|
Datasheet | G6K-RF | Tray | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
