IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-GT180DA120UIGBT MODULE 1200V 281A SOT-227 |
555 |
1+：$40.54400 10+：$30.57760 100+：$27.00000 |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 281 A | 1087 W | 2.05V @ 15V, 100A | 100 µA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT100DA120UFIGBT MOD 1200V 187A 890W SOT227 |
160 | - |
|
Datasheet | HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | Trench | Single | 1200 V | 187 A | 890 W | 2.55V @ 15V, 100A | 100 µA | 6.15 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
VS-40MT120PHAPBFMTP - HALF BRIDGE IGBT |
105 | - |
|
Datasheet | - | 12-MTP Module | Tube | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 305 W | 2.65V @ 15V, 40A | 50 µA | 3.2 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | 12-MTP |
|
VS-ENY050C60POWER MODULE |
20 |
1+：$40.53600 10+：$35.72800 |
|
Datasheet | * | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-ENZ025C60NPOWER MODULE |
110 | - |
|
Datasheet | * | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

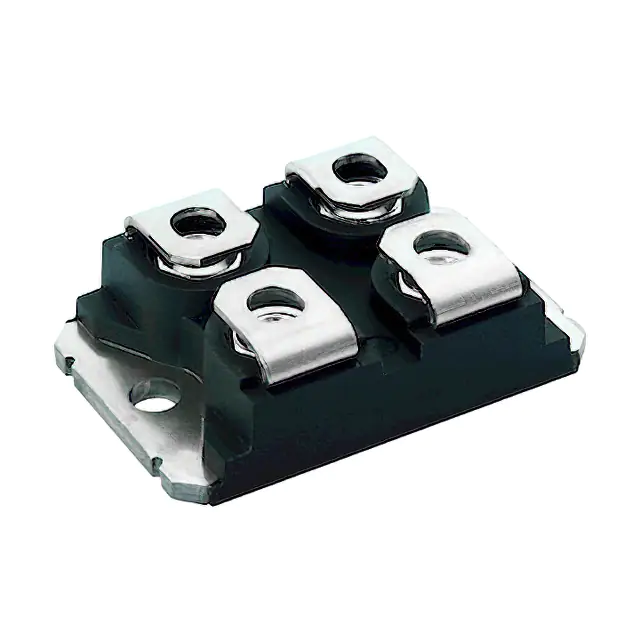

VS-GT90SA120UIGBT MOD 1200V 169A 781W SOT-227 |
127 |
1+：$33.60000 10+：$28.33600 |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single | 1200 V | 169 A | 781 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT55NA120UXSOT-227 - HIGH SIDE CHOPPER IGBT |
129 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT55LA120UXSOT-227 - LOW SIDE CHOPPER IGBT |
212 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
VS-GT50YF120NTECONO - 4 PACK IGBT |
108 | - |
|
Datasheet | - | Module | Box | Active | Trench Field Stop | Full Bridge | 1200 V | 64 A | 231 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
VS-GT75YF120NTECONO - 4 PACK IGBT |
105 | - |
|
Datasheet | - | Module | Box | Active | Trench Field Stop | Full Bridge | 1200 V | 118 A | 431 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
