Interlock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

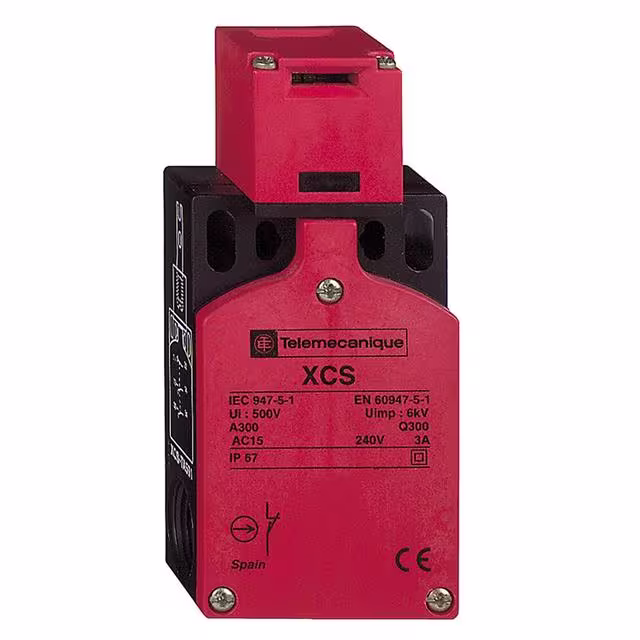

XCSTA791INTERLOCK NON-LOCKING 3PST |
3,742 | - |
|
Datasheet | XCSTA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

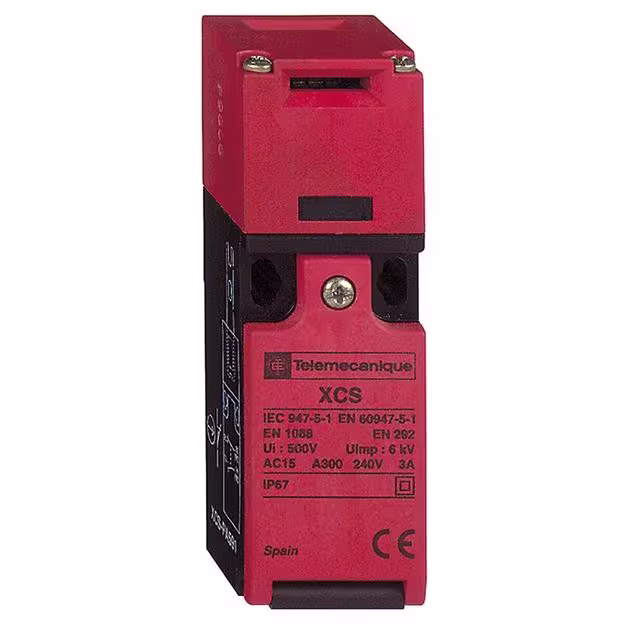

XCSPA692INTERLOCK NON-LOCKING DPST |
1,921 | - |
|
Datasheet | XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSPL781INTERLOCK NON-LOCKING DPST |
4,268 | - |
|
Datasheet | XCSPL | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPL791INTERLOCK NON-LOCKING DPST |
3,779 | - |
|
Datasheet | XCSPL | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPL771INTERLOCK NON-LOCKING DPST |
1,094 | - |
|
Datasheet | XCSPL | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPL761INTERLOCK NON-LOCKING DPST |
1,135 | - |
|
Datasheet | XCSPL | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPL561INTERLOCK NON-LOCKING DPST |
1,390 | - |
|
Datasheet | XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPA991INTERLOCK KEY LOCKING 3PST |
2,546 | - |
|
Datasheet | XCSPA | Box | Active | Key Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSPR552INTERLOCK NON-LOCKING DPST |
4,479 | - |
|
Datasheet | Telemecanique XCS | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
XCSPR752INTERLOCK NON-LOCKING DPST |
3,141 | - |
|
Datasheet | Telemecanique XCS | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
