Interlock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSTE5311INTERLOCK SOLENOID LOCKING DPST |
2,901 | - |
|
Datasheet | XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 3A (AC) | 120VAC, 125VDC | - | 1.5kgf | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTE7312INTERLOCK SOLENOID LOCKING DPST |
2,102 | - |
|
Datasheet | XCSTE | Box | Active | Solenoid Locking | DPST-NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSE7513INTERLOCK SOLENOID LOCKING 3PST |
3,307 | - |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

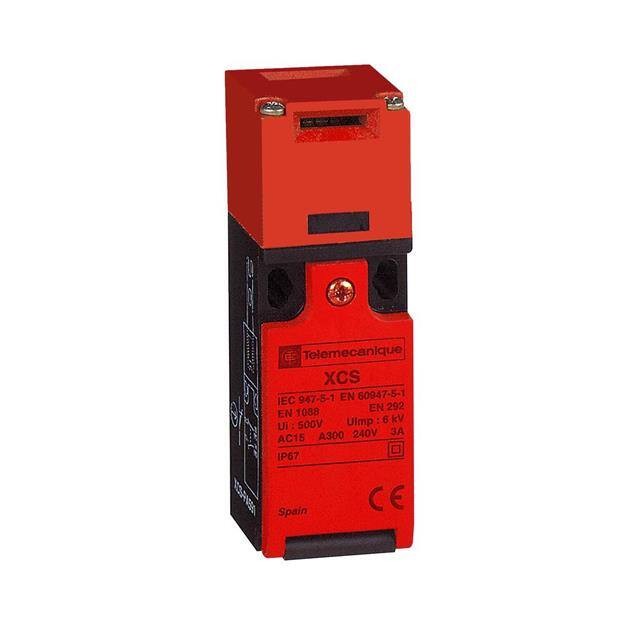

XCSPA591INTERLOCK NON-LOCKING DPST |
1,625 | - |
|
Datasheet | XCSP | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSPA791INTERLOCK NON-LOCKING DPST |
3,767 | - |
|
Datasheet | XCSP | Box | Active | Non-Locking | DPST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTA793INTERLOCK NON-LOCKING 3PST |
4,960 | - |
|
Datasheet | XCST | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

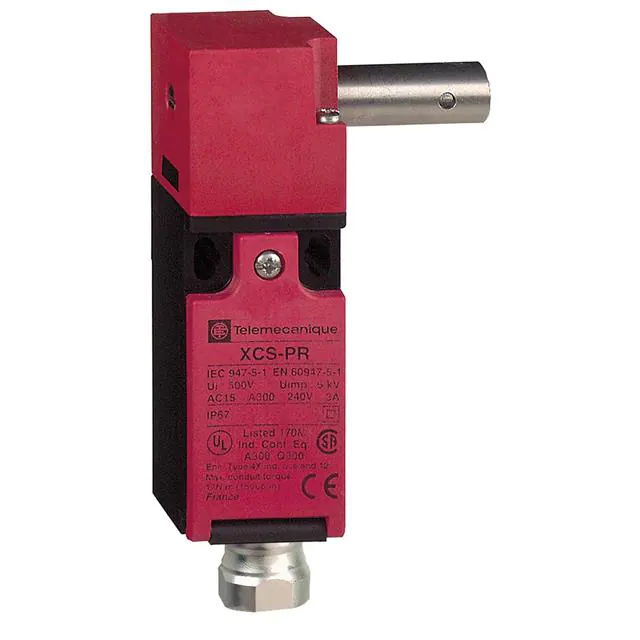

XCSPR753INTERLOCK NON-LOCKING DPST |
4,049 | - |
|
Datasheet | XCSP | Box | Active | Non-Locking | DPST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSDMC5912INTERLOCK MAGNETIC DPST |
1,155 | - |
|
Datasheet | XCSD | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSDMC7912INTERLOCK MAGNETIC DPST |
2,828 | - |
|
Datasheet | XCSDMC | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMR5902INTERLOCK MAGNETIC DPST |
1,211 | - |
|
Datasheet | XCSDMR | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | - | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
