Interlock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

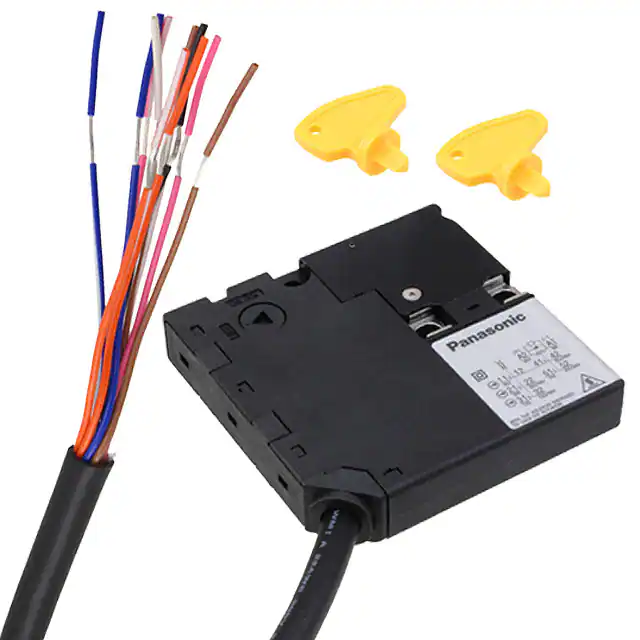

SG-B1-MA-G5INTERLOCK SOLENOID RELEASE DPST |
2,448 | - |
|
Datasheet | SG-B1 | Bulk | Active | Solenoid Release | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

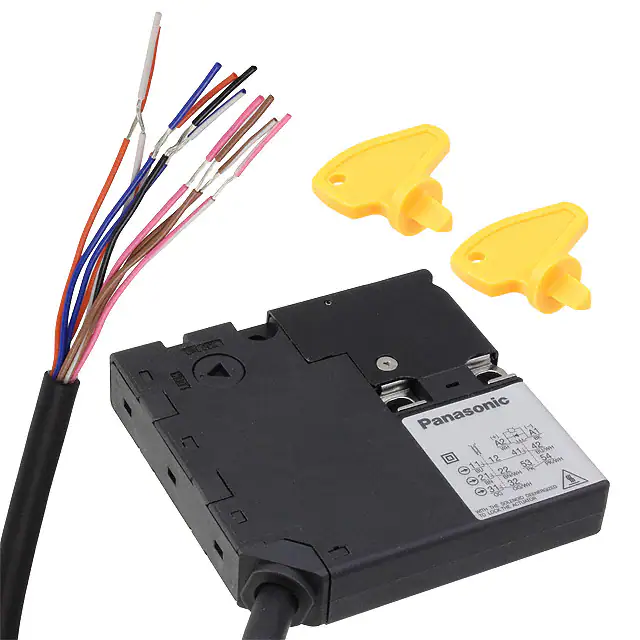

SG-B1-SB-G5INTERLOCK SOLENOID LOCKING DPST |
2,164 | - |
|
Datasheet | SG-B1 | Bulk | Active | Solenoid Locking | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

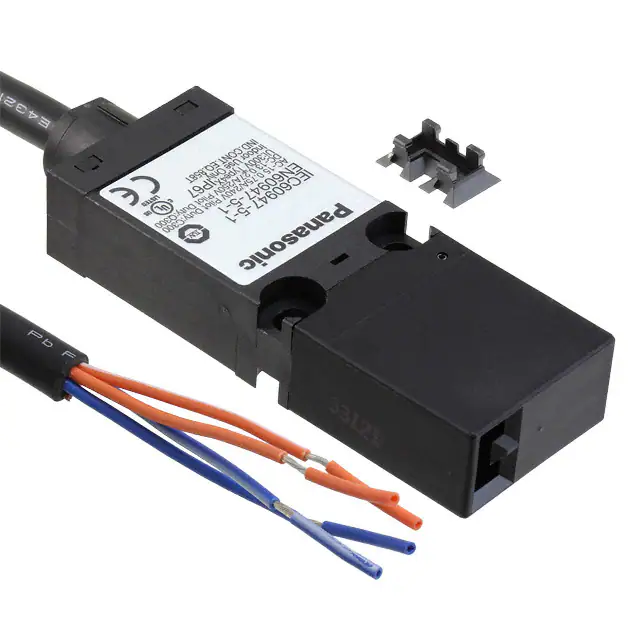

SG-A1-02-1INTERLOCK NON-LOCKING DPST |
2,381 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

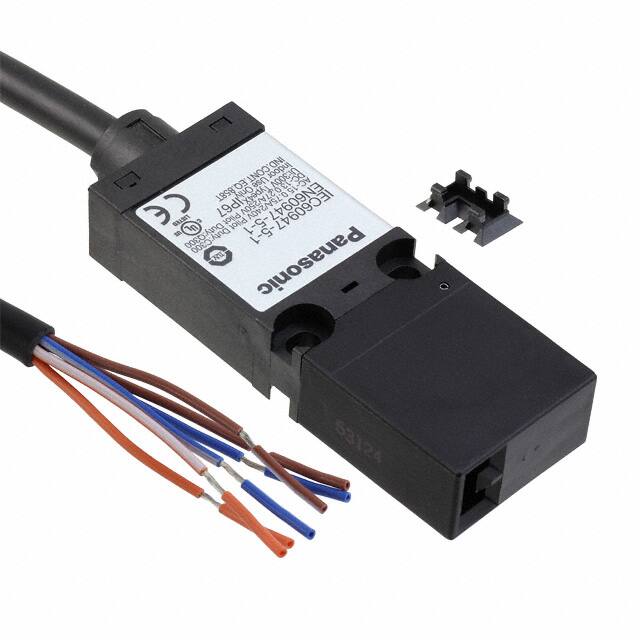

SG-A1-03-1INTERLOCK NON-LOCKING 3PST |
3,729 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | 3PST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
SG-A1-12-1INTERLOCK NON-LOCKING DPST |
2,505 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | DPST-NC + SPST-NO | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

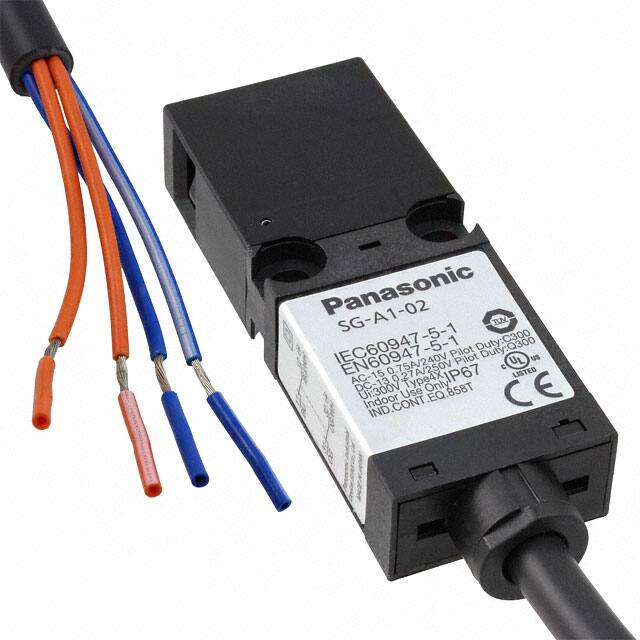

SG-A1-02-5INTERLOCK NON-LOCKING DPST |
1,586 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

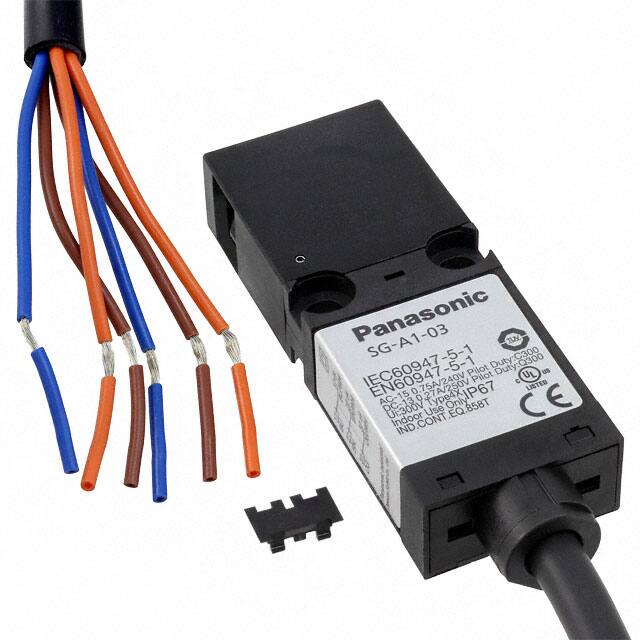

SG-A1-03-5INTERLOCK NON-LOCKING 3PST |
3,438 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | 3PST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

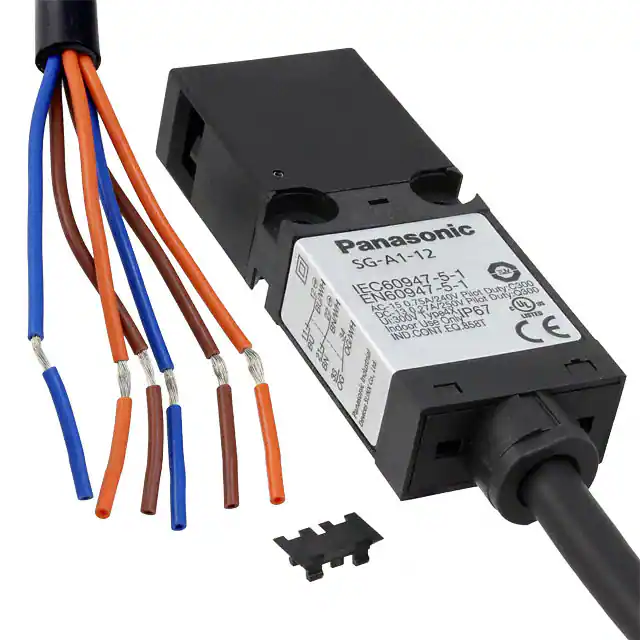

SG-A1-12-5INTERLOCK NON-LOCKING DPST |
3,434 | - |
|
Datasheet | SG-A1 | Bulk | Active | Non-Locking | DPST-NC + SPST-NO | 2.5A (AC/DC) | 125VAC, 30VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

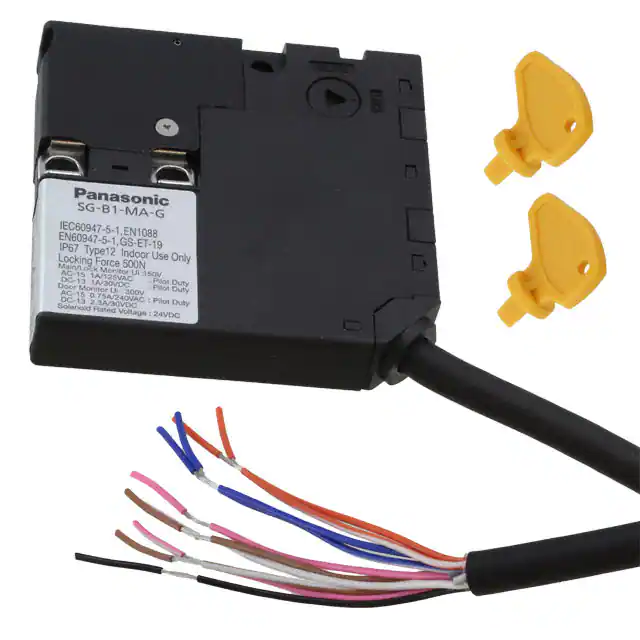

SG-B1-MA-G1INTERLOCK SOLENOID RELEASE DPST |
2,973 | - |
|
Datasheet | SG-B1 | Bulk | Active | Solenoid Release | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
SG-B1-MB-G1INTERLOCK SOLENOID RELEASE DPST |
3,968 | - |
|
Datasheet | SG-B1 | Bulk | Active | Solenoid Release | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
