Keylock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SK12AG13SWITCH KEYLK 2POS SPDT 0.4VA 28V |
251 | - |
|
Datasheet | SK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
CKL12BFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
169 | - |
|
Datasheet | CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BTW01-001SWITCH KEYLOCK 2POS SPDT 3A 250V |
236 |
1+：$24.27200 10+：$20.94160 25+：$19.74336 50+：$18.88080 100+：$18.05448 250+：$17.01494 |
|
Datasheet | CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK22BG30SWITCH KEYLK 2POS DPDT 0.4VA 28V |
307 | - |
|
Datasheet | SK | Box | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 1 only | 90° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
|
CKL12ATW01-040SWITCH KEYLOCK 2POS SPDT 3A 250V |
160 | - |
|
Datasheet | CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

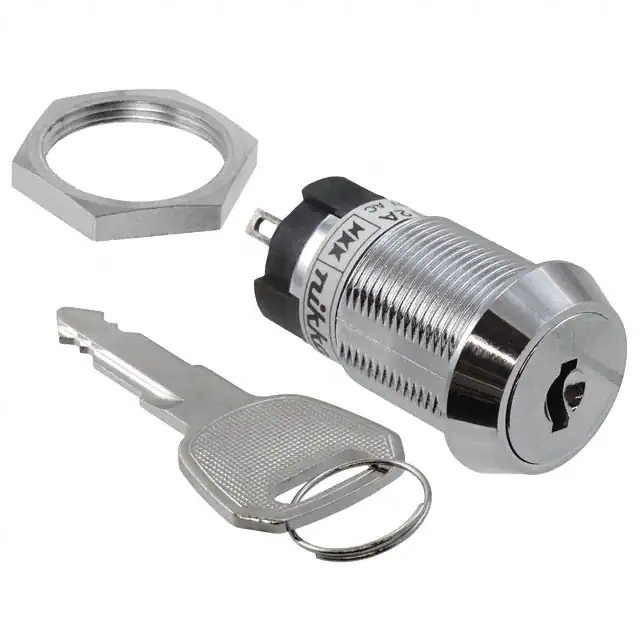

CKL12AFW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
387 | - |
|
Datasheet | CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK14DGMG01SWITCH KEYLK 3POS SP3T 0.4VA 28V |
138 |
1+：$22.45600 10+：$19.37360 25+：$18.26592 50+：$17.46816 100+：$16.70384 250+：$15.74266 500+：$15.05075 |
|
Datasheet | SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Gold | Panel Mount, Snap-In | Solder Lug | Circular - 14.50mm Dia | Antistatic | -40°C ~ 85°C |
|

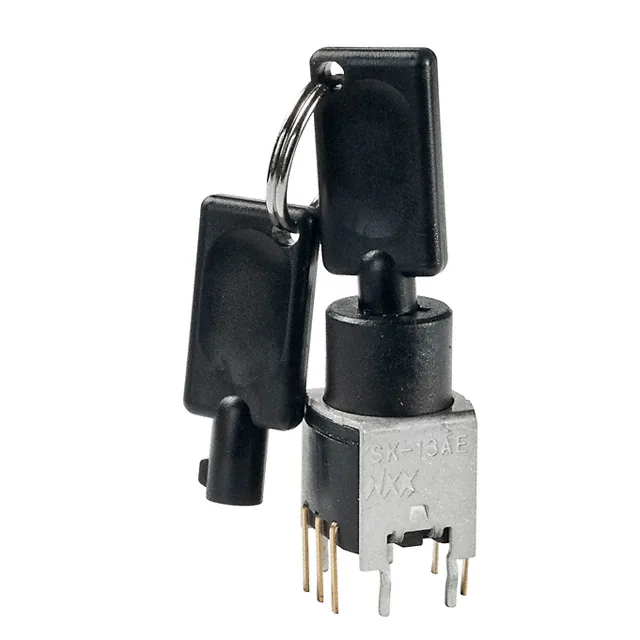

SK13AEG13SWITCH KEYLK 3POS SP3T 0.4VA 28V |
127 | - |
|
Datasheet | SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 45° | Beryllium Copper | Tin | Through Hole | PC Pin | - | Antistatic, Process Sealed | -25°C ~ 70°C |
|
CKM13ETW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,014 | - |
|
Datasheet | CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

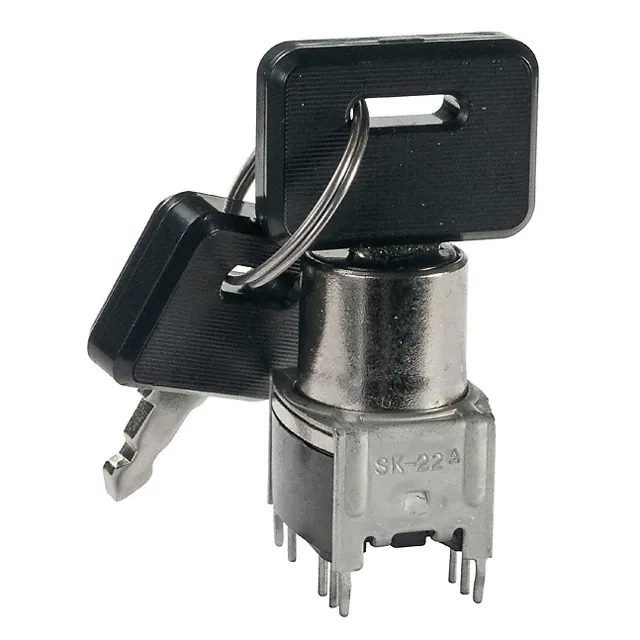

SK22AG13SWITCH KEYLK 2POS DPDT 0.4VA 28V |
249 | - |
|
Datasheet | SK | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | All | 90° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
