Keylock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

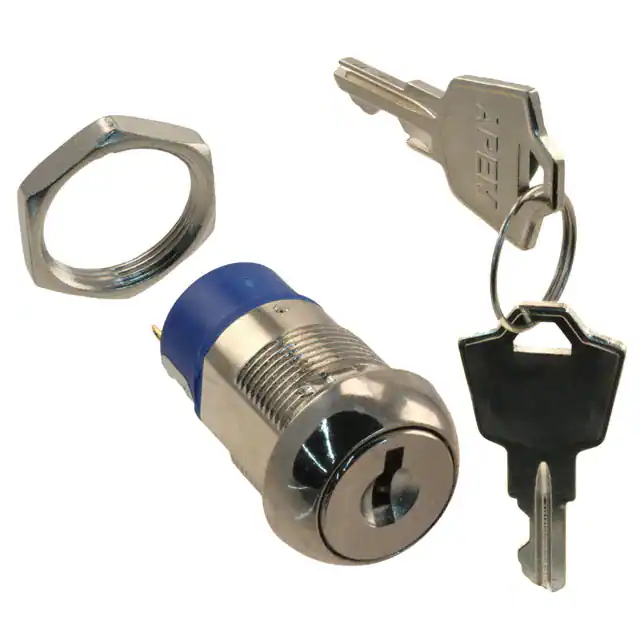

JD7510ASWITCH KEYLOCK 2POS SPDT 4A 125V |
3,908 | - |
|
Datasheet | JD | Bulk | Obsolete | SPDT | 2 | On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7510ESWITCH KEYLOCK 3POS SP3T 4A 125V |
4,233 | - |
|
Datasheet | JD | Tray | Obsolete | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7510ISWITCH KEYLOCK 3POS SP3T 4A 125V |
4,442 | - |
|
Datasheet | JD | Tray | Obsolete | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7510JSWITCH KEYLOCK 3POS DP3T 4A 125V |
4,509 | - |
|
Datasheet | JD | Bulk | Obsolete | DP3T | 3 | On-On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7510FSWITCH KEYLOCK 3POS DP3T 4A 125V |
4,223 | - |
|
Datasheet | JD | Tray | Obsolete | DP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7510BSWITCH KEYLOCK 2POS DPDT 4A 125V |
2,585 | - |
|
Datasheet | JD | Tray | Obsolete | DPDT | 2 | On-Mom | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7509PSWITCH KEYLOCK 2POS SPDT 4A 125V |
3,259 | - |
|
Datasheet | JD | Tray | Obsolete | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 2 only | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7509ISWITCH KEYLOCK 3POS SP3T 4A 125V |
3,538 | - |
|
Datasheet | JD | Tray | Obsolete | SP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7509FSWITCH KEYLOCK 3POS DP3T 4A 125V |
2,913 | - |
|
Datasheet | JD | Tray | Obsolete | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 and 3 | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
JD7509GSWITCH KEYLOCK 3POS SP3T 4A 125V |
2,952 | - |
|
Datasheet | JD | Tray | Obsolete | SP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
