Keylock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-R-K1-ASWITCH KEYLOCK 2POS SPST 1A 125V |
245 | - |
|
Datasheet | SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 11.80mm Dia | - | -25°C ~ 85°C |
|
SW-R-K5-ASWITCH KEYLOCK 2POS SPST 1A 125V |
4,285 | - |
|
Datasheet | SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder Lug | Circular - 11.80mm Dia | - | -25°C ~ 85°C |
|
SW-R-K10-ASWITCH KEYLOCK 2POS SPST 4A 125V |
4,737 | - |
|
Datasheet | SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
SW-R-K11B-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
2,727 | - |
|
Datasheet | SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
SW-R-K13A-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
1,686 | - |
|
Datasheet | SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | - | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 85°C |
|
SW-R-K7A-ASWITCH KEYLOCK 2POS SPST 2A 250V |
4,747 | - |
|
Datasheet | SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 2A (AC), 4A (DC) | 250 V | 28 V | Flat Key | All | 60° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -25°C ~ 85°C |
|

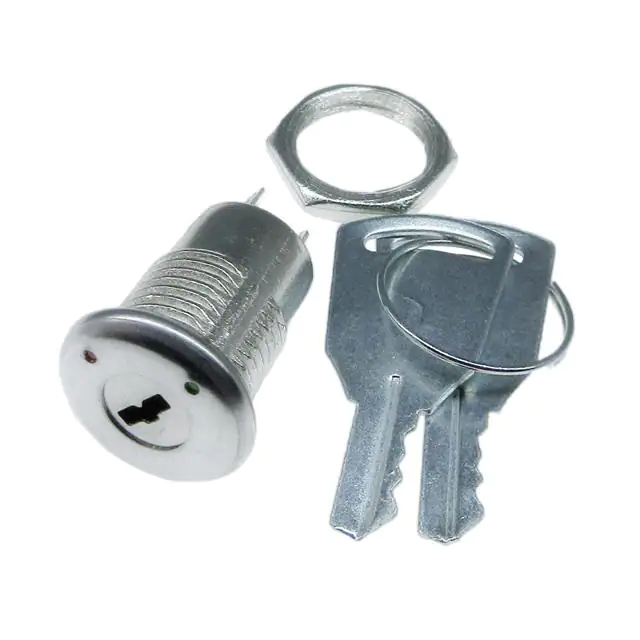

SW-R-K4-ASWITCH KEY 2POS SPST 500MA 250V |
9 |
1+：$2.76000 10+：$2.38480 25+：$2.24864 50+：$2.15120 100+：$2.05760 300+：$1.91738 500+：$1.85534 1000+：$1.77425 |
|
Datasheet | SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 500mA (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
SW-R-K9-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
3,527 | - |
|
Datasheet | SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 60° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -25°C ~ 85°C |
|
SW-R-K8-ASWITCH KEYLOCK 2POS SPDT 2A 125V |
1,016 | - |
|
Datasheet | SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 2A (AC/DC) | 125 V | 28 V | Flat Key | All | - | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -20°C ~ 85°C |
