Keylock Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

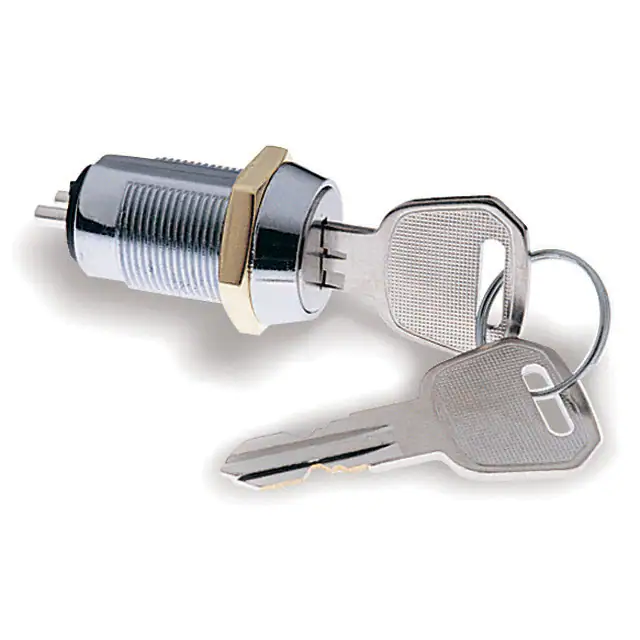

KO117A125SWITCH KEYLOCK 2POS SPST 4A 125V |
474 |
1+:$8.28000 10+:$7.14720 25+:$6.73952 50+:$6.44592 100+:$6.16480 300+:$5.74322 600+:$5.49154 1200+:$5.25046 |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO128A2007SWITCH KEYLOCK 2POS SPST 4A 125V |
846 | - |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Screw Terminal | Circular - 19.00mm Dia | - | - |
|
|
KO130RA126SWITCH KEYLOCK 2POS SPDT 4A 125V |
504 | - |
|
Datasheet | KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO130QA126SWITCH KEYLOCK 2POS DPDT 4A 125V |
370 | - |
|
Datasheet | KO | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 5 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO130BA126SWITCH KEYLOCK 3POS DP3T 4A 125V |
156 |
1+:$9.89600 10+:$8.54160 25+:$8.05376 50+:$7.70288 100+:$7.36672 250+:$6.94390 500+:$6.63958 1000+:$6.34804 |
|
Datasheet | KO | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 3 only | 45° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO129CA126SWITCH KEYLOCK 3POS SP3T 4A 125V |
292 | - |
|
Datasheet | KO | Bulk | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 3 only | 45° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO131A102SWITCH KEYLOCK 2POS SPST 1A 125V |
221 | - |
|
Datasheet | KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
KO129BA126SWITCH KEYLOCK 3POS SP3T 4A 125V |
334 | - |
|
Datasheet | KO | Bulk | Active | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45°, 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO129B606SWITCH KEYLOCK 3POS SP3T 4A 125V |
198 | - |
|
Datasheet | KO | Bulk | Active | SP3T | 3 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45°, 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | - |
|
KO105B1001SWITCH KEYLOCK 2POS SPDT 1A 125V |
996 | - |
|
Datasheet | KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
