LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWH2HDNE07YHU3C1LED COB LC040C WM WH RECT 3500K |
1,950 | - |
|
Datasheet | LC040C | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Rectangle | 3700lm (Typ) | 1.08A | 85°C | 34.5V | 99 lm/W | 1.62A | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 11.00mm Dia | Flat |
|
|
SPHWH2HDNE07YHV3C1LED COB LC040C WM WH RECT 3000K |
2,144 | - |
|
Datasheet | LC040C | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 3470lm (Typ) | 1.08A | 85°C | 34.5V | 93 lm/W | 1.62A | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 11.00mm Dia | Flat |
|
|
SPHWH2HDNE07YHW3C1LED COB LC040C WM WH RECT 2700K |
3,867 | - |
|
Datasheet | LC040C | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 3190lm (Typ) | 1.08A | 85°C | 34.5V | 86 lm/W | 1.62A | 90 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 11.00mm Dia | Flat |
|
|
SPHWH2HDNE05YHQTC1LED COB LC040C CL WH RECT 5700K |
3,907 | - |
|
Datasheet | LC040C | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5700K | - | Rectangle | 5030lm (Typ) | 1.08A | 85°C | 34.5V | 135 lm/W | 1.62A | 80 | 115° | - | 19.00mm L x 16.00mm W | 1.50mm | 11.00mm Dia | Flat |
|
|
SPHWW1HDNC27YHT32GLED COB LC026B GEN2 WHT SQ 4000K |
2,182 | - |
|
Datasheet | LC026B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3325lm (3035lm ~ 3615lm) | 720mA | 25°C | 35.5V | 130 lm/W | 1.3A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC27YHU32GLED COB LC026B GEN2 WHT SQ 3500K |
2,554 | - |
|
Datasheet | LC026B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3243lm (2955lm ~ 3530lm) | 720mA | 25°C | 35.5V | 127 lm/W | 1.3A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC27YHV32GLED COB LC026B GEN2 WH SQ 3000K |
1,224 | - |
|
Datasheet | LC026B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3155lm (2870lm ~ 3440lm) | 720mA | 25°C | 35.5V | 123 lm/W | 1.3A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC27YHW32GLED COB LC026B GEN2 WHT SQ 2700K |
1,459 | - |
|
Datasheet | LC026B Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3098lm (2815lm ~ 3380lm) | 720mA | 25°C | 35.5V | 121 lm/W | 1.3A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|

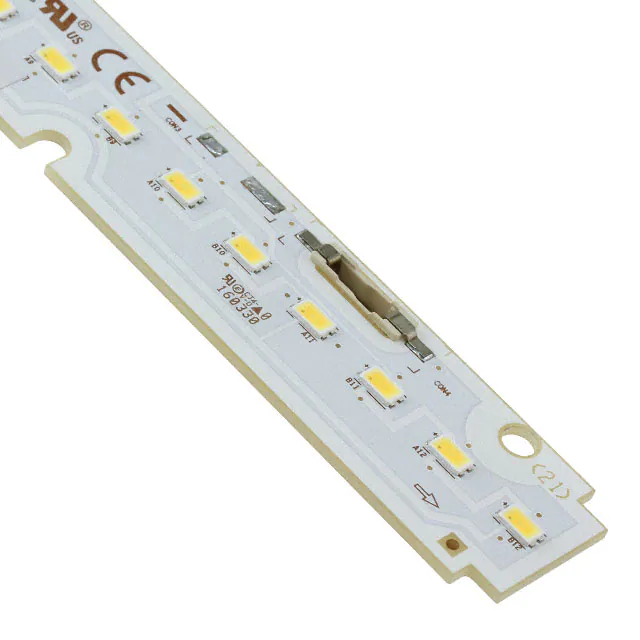

SI-B8R07228HWWLED MOD LT-S282H LNR STRP 5000K |
2,623 | - |
|
Datasheet | LT-S282H | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1140lm (Typ) | 300mA | 50°C | 23.4V | 162 lm/W | 540mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 7.40mm | - | Flat |
|
|
SI-B8T07228HWWLED MOD LT-S282H LNR STRP 4000K |
3,740 | - |
|
Datasheet | LT-S282H | Tray | Not For New Designs | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1120lm (Typ) | 300mA | 50°C | 23.4V | 160 lm/W | 540mA | 80 | 115° | With Connector | 279.70mm L x 23.80mm W | 7.40mm | - | Flat |
