LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB2530-0000-000N0HU440GLED COB XLAMP NEUT WHT SQU 4000K |
1,982 | - |
|
Datasheet | XLamp® CXB2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA2540-0000-000N00V430GLED COB XLAMP WARM WHT SQ 3000K |
100 | - |
|
Datasheet | XLamp® CXA2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 36V | 119 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXB2540-0000-000N0HW230GLED COB XLAMP WARM WHT SQ 3000K |
4,380 | - |
|
Datasheet | XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXB2540-0000-000N0HW240HLED COB XLAMP NEUT WHT SQU 4000K |
1,678 | - |
|
Datasheet | XLamp® CXB2540 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5043lm (4860lm ~ 5225lm) | 1.1A | 85°C | 36V | 127 lm/W | 2.1A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CMA3090-0000-000Q0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,666 | - |
|
Datasheet | XLamp® CMA3090 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12372lm (Typ) | 1.8A | 85°C | 45V | 153 lm/W | 3.6A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
CXA1304-0000-000C00C20E3LED COB XLAMP COOL WHT SQ 5000K |
1,837 | - |
|
Datasheet | XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B240FLED COB XLAMP NEUT WHT SQU 4000K |
2,869 | - |
|
Datasheet | XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C0HC265FLED COB XLAMP COOL WHT SQU 6500K |
3,078 | - |
|
Datasheet | XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000F0HC250FLED COB XLAMP COOL WHT SQU 5000K |
2,225 | - |
|
Datasheet | XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 200mA | 85°C | 18V | 127 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|

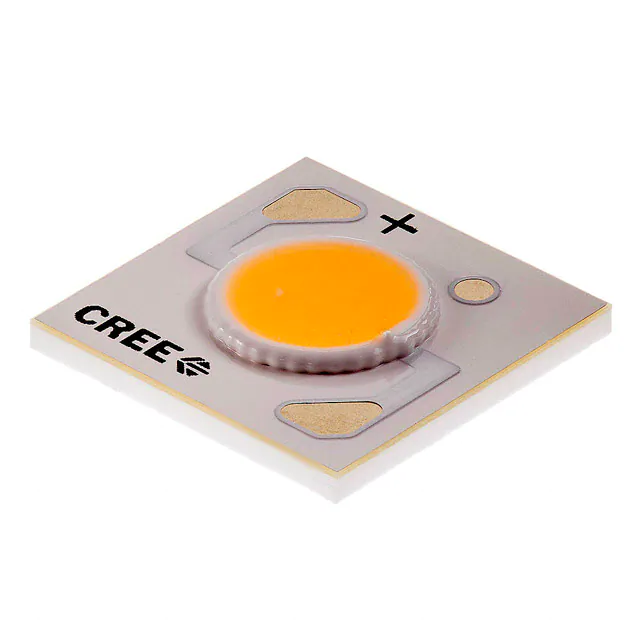

CXA1304-0000-000C00C450FLED COB XLAMP COOL WHT SQU 5000K |
1,410 | - |
|
Datasheet | XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 493lm (475lm ~ 510lm) | 400mA | 85°C | 9V | 137 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
