LED Emitters - Infrared, UV, Visible
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Current - DC Forward (If) (Max) | Radiant Intensity (Ie) Min @ If | Wavelength | Voltage - Forward (Vf) (Typ) | Viewing Angle | Orientation | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LED55BFEMITTER IR 940NM 100MA TO-46 |
2,360 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 80° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|
LN54EMITTER IR 950NM 50MA RADIAL |
1,667 | - |
|
Datasheet | - | Radial | - | Obsolete | Infrared (IR) | 50mA | 2.5mW/sr @ 50mA | 950nm | 1.5V | 34° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN64EMITTER IR 950NM 100MA T 1 3/4 |
4,256 | - |
|
Datasheet | - | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 3.5mW/sr @ 50mA | 950nm | 1.3V | 90° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN175EMITTER IR 900NM 100MA RADIAL |
3,277 | - |
|
Datasheet | - | Radial | - | Obsolete | Infrared (IR) | 100mA | 7mW/sr @ 100mA | 900nm | 1.4V | 120° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN660000REMITTER IR 950NM 100MA T 1 3/4 |
2,617 | - |
|
Datasheet | - | T 1 3/4 | - | Obsolete | Infrared (IR) | 100mA | 5mW/sr @ 50mA | 950nm | 1.3V | 50° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LED55BEMITTER IR 940NM 100MA TO-46 |
2,257 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 940nm | 1.7V | 16° | Top View | -65°C ~ 125°C (TA) | - | - | Through Hole |
|
QEC113EMITTER IR 940NM 50MA RADIAL |
2,435 | - |
|
Datasheet | - | Radial, 3mm Dia (T-1) | Bulk | Obsolete | Infrared (IR) | 50mA | 14mW/sr @ 100mA | 940nm | 1.5V | 18° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
QED233EMITTER IR 940NM 100MA RADIAL |
4,401 | - |
|
Datasheet | - | Radial, 5mm Dia (T 1 3/4) | Bulk | Obsolete | Infrared (IR) | 100mA | 10mW/sr @ 100mA | 940nm | 1.6V | 40° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

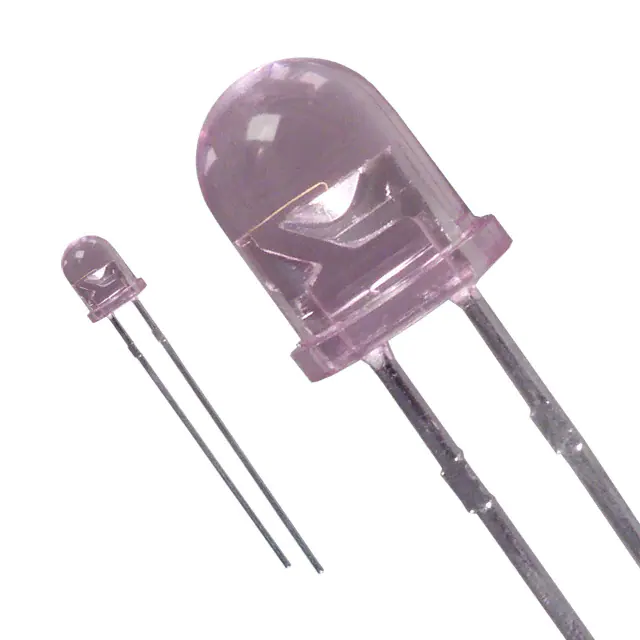

QED423EMITTER IR 880NM 100MA TO-46 |
1,704 | - |
|
Datasheet | - | TO-46-2 | - | Obsolete | Infrared (IR) | 100mA | 20mW/sr @ 100mA | 880nm | 1.8V | 30° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
PDI-E805EMITTER IR 880NM 100MA TO-46 |
2,316 | - |
|
Datasheet | - | TO-46-2 Lens Top Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | - | 880nm | 1.5V | - | Top View | -20°C ~ 90°C (TA) | - | - | Through Hole |
|
LN77LEMITTER IR 860NM 100MA T 1 3/4 |
1,469 | - |
|
Datasheet | - | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 10mW/sr @ 50mA | 860nm | 1.6V | 40° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN66FEMITTER IR 950NM 50MA |
3,396 | - |
|
Datasheet | - | - | Bulk | Obsolete | Infrared (IR) | 50mA | 13mW/sr @ 50mA | 950nm | 1.35V | 30° | - | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
|
LTE-3271TEMITTER IR 940NM 100MA T 3/4 |
3,575 | - |
|
Datasheet | - | T 3/4 | Tape & Reel (TR) | Active | Infrared (IR) | 100mA | 6mW/sr @ 20mA | 940nm | 1.25V | 50° | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
LNA2904LEMITTER IR 950NM 100MA T 1 3/4 |
2,686 | - |
|
Datasheet | - | T 1 3/4 | - | Obsolete | Infrared (IR) | 100mA | 10mW/sr @ 50mA | 950nm | 1.35V | 40° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN51LEMITTER IR 950NM 100MA TO-18 |
1,704 | - |
|
Datasheet | - | TO-18-2 Metal Can | Bulk | Obsolete | Infrared (IR) | 100mA | 6mW/sr @ 100mA | 950nm | 1.25V | 16° | Top View | -25°C ~ 100°C (TA) | - | - | Through Hole |
|
LN52EMITTER IR 950NM 100MA TO-18 |
3,466 | - |
|
Datasheet | - | TO-18-2 Metal Can | - | Obsolete | Infrared (IR) | 100mA | 5mW/sr @ 50mA | 950nm | 1.25V | 100° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LN55EMITTER IR 950NM 50MA RADIAL |
3,217 | - |
|
Datasheet | - | Radial | - | Obsolete | Infrared (IR) | 50mA | 1.8mW/sr @ 50mA | 950nm | 1.5V | 70° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|

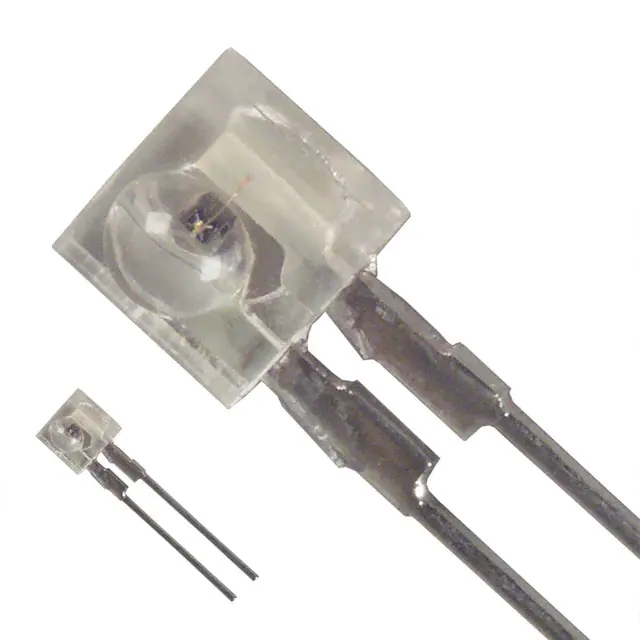

LN58EMITTER IR 950NM 50MA RADIAL |
4,687 | - |
|
Datasheet | - | Radial | - | Obsolete | Infrared (IR) | 50mA | 1.8mW/sr @ 50mA | 950nm | 1.5V | 70° | Side View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|

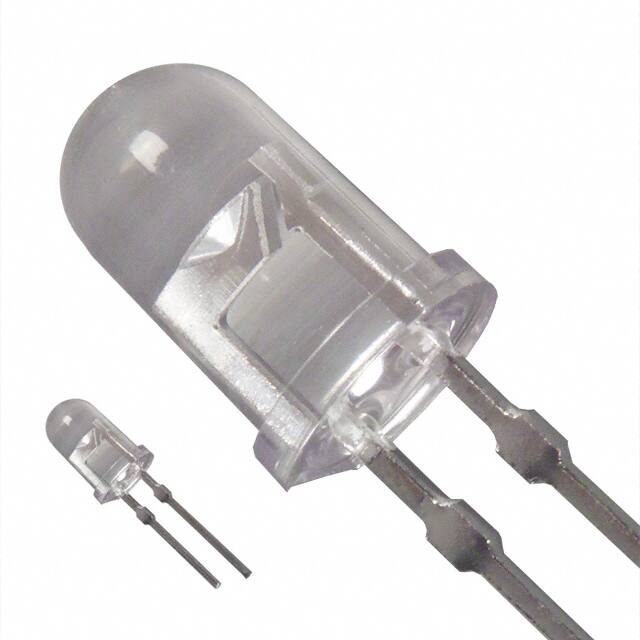

LNA2903LEMITTER IR 950NM 100MA T 1 3/4 |
4,786 | - |
|
Datasheet | - | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 9mW/sr @ 50mA | 950nm | 1.4V | 40° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
LNA2802LEMITTER IR 940NM 50MA T-1 |
4,869 | - |
|
Datasheet | - | T-1 | Bulk | Obsolete | Infrared (IR) | 50mA | 2.5mW/sr @ 50mA | 940nm | 1.3V | 40° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
