LED Emitters - Infrared, UV, Visible
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Current - DC Forward (If) (Max) | Radiant Intensity (Ie) Min @ If | Wavelength | Voltage - Forward (Vf) (Typ) | Viewing Angle | Orientation | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ4-40R708-0000EMITTER IR 940NM 1A STAR |
1,114 | - |
|
Datasheet | LuxiGen™ LZ4 | Star Array | Tray | Active | Infrared (IR) | 1A | - | 940nm | 11.6V | 100° | Top View | 145°C (TJ) | - | - | Screw Mount |
|
SU CULFP1.VC-CBCF-45-V3V4-350-R18EMITTER UV 265NM 3535 |
4,029 | - |
|
Datasheet | OSLON® UV 3535 | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 500mA | - | 265nm (260nm ~ 270nm) | 6.2V | 120° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
|
LZ4-04UVH0-0000LED ENGIN LUXIGENILLUMINATIONSPE |
3,804 | - |
|
Datasheet | LuxiGen™ LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 900mA | - | 367nm (365nm ~ 370nm) | 15.2V | 110° | Top View | -30°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 4111EMITTER IR 950NM 50MA MODULE |
2,310 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Infrared (IR) | 50mA | - | 950nm | 1.25V | 60°/120° | Top View | -40°C ~ 85°C (TA) | - | - | Chassis Mount |
|

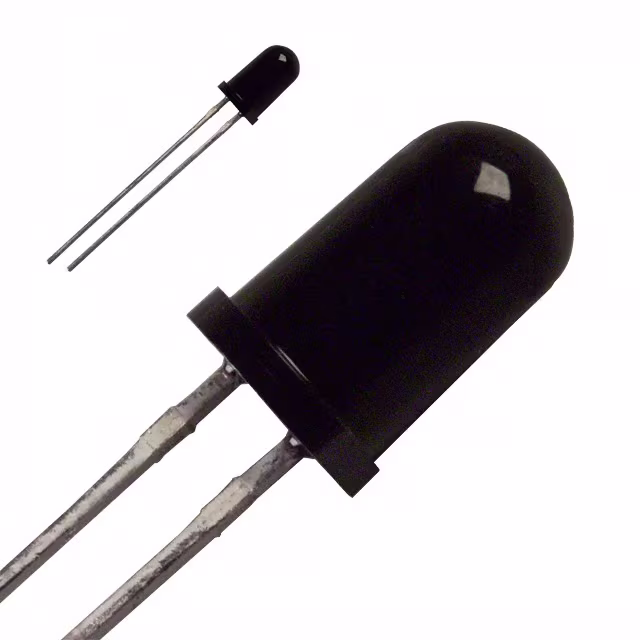

SFH 415EMITTER IR 950NM 100MA T 1 3/4 |
3,937 | - |
|
Datasheet | - | T 1 3/4 | Bulk | Obsolete | Infrared (IR) | 100mA | 25mW/sr @ 100mA | 950nm | 1.3V | 34° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

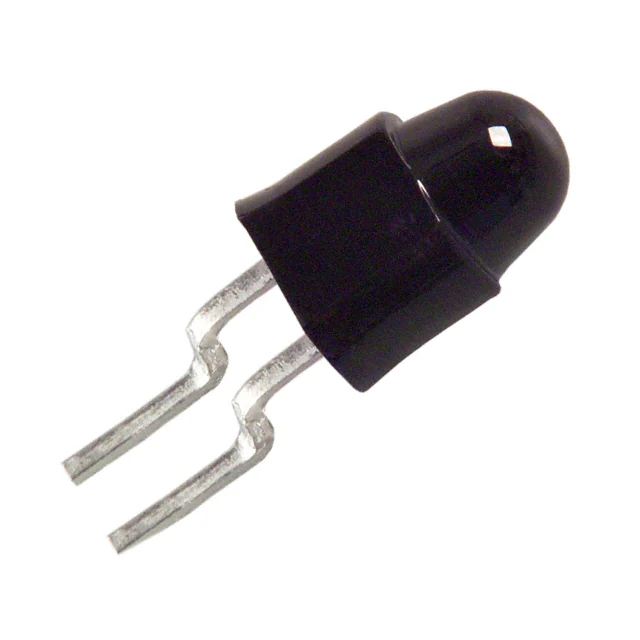

SFH 4510EMITTER IR 950NM 100MA T 1 3/4 |
4,617 | - |
|
Datasheet | - | T 1 3/4 | Tape & Reel (TR) | Obsolete | Infrared (IR) | 100mA | 25mW/sr @ 100mA | 950nm | 1.3V | 28° | Side View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|

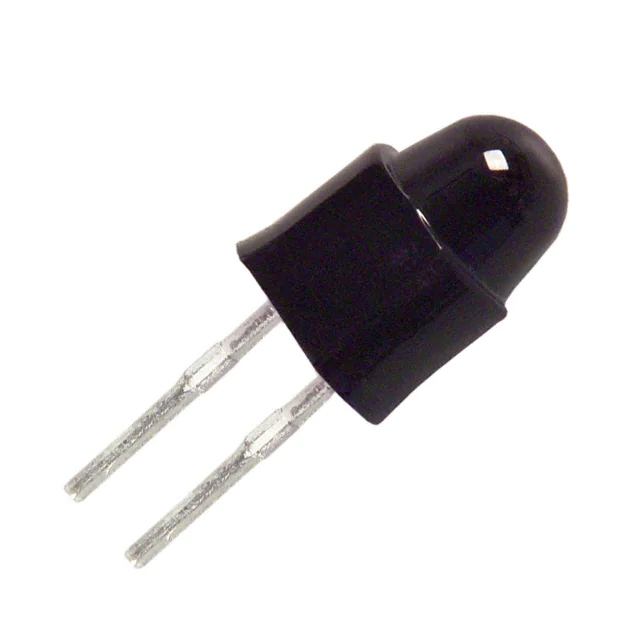

SFH 4515EMITTER IR 950NM 100MA T 1 3/4 |
2,273 | - |
|
Datasheet | - | T 1 3/4 | Tape & Reel (TR) | Obsolete | Infrared (IR) | 100mA | 25mW/sr @ 100mA | 950nm | 1.3V | 28° | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
SFH 4047CHIP LED W LENSVISUALIZATIONLED |
2,421 | - |
|
Datasheet | Chip LED Lens | 2-SMD, No Lead | Tape & Reel (TR) | Active | Infrared (IR) | 100mA | 18mW/sr @ 100mA | 950nm | 1.5V | 40° | Top View | -40°C ~ 85°C | - | - | Surface Mount |
|
SFH 420EMITTER IR 950NM 100MA SMD |
1,772 | - |
|
Datasheet | - | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Infrared (IR) | 100mA | 2.5mW/sr @ 100mA | 950nm | 1.3V | 120° | Top View | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
SFH 4113EMITTER IR 950NM 50MA MODULE |
4,597 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Infrared (IR) | 50mA | - | 950nm | 1.25V | 66°/86° | Top View | -40°C ~ 85°C (TA) | - | - | Chassis Mount |
