LED White Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | CCT (K) | Flux @ 85°C, Current - Test | Flux @ 25°C, Current - Test | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Current - Max | Viewing Angle | Grade | Qualification | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZ1-00WW02-0035LED LZ1 WARM WHT 3500K SMD |
2,103 | - |
|
Datasheet | LZ1 | 4-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Obsolete | White, Warm | 3500K | - | 164lm (146lm ~ 182lm) | 1A | 3.7V | 44 lm/W | 85 (Typ) | 1.2A | 85° | - | - | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.102" (2.60mm) |
|
LCW CQAR.EC-MQMS-5L7N-35-700-R18LED OSLON NEU WHITE 4000K 2SMD |
1,650 | - |
|
Datasheet | OSLON® Square | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K | - | 217lm (194lm ~ 240lm) | 700mA | 3.05V | 102 lm/W | 80 | 1.5A | 120° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.077" (1.95mm) |
|
|
LCW CQAR.EC-MQMS-5H7I-35-700-R18LED OSLON COOL WHITE 5000K 2SMD |
2,390 | - |
|
Datasheet | OSLON® Square | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | - | 217lm (194lm ~ 240lm) | 700mA | 3.05V | 102 lm/W | 80 | 1.5A | 120° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.077" (1.95mm) |
|

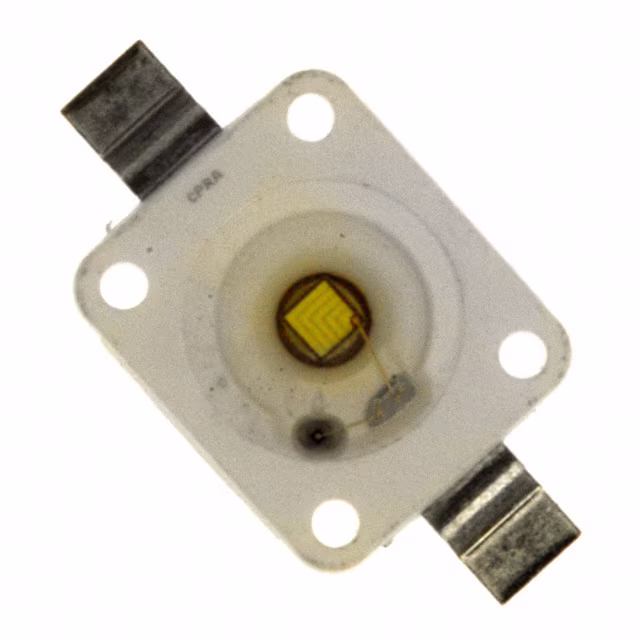

LW W5SM-JXJY-5K8L-ZLED GOLDEN DRAGON COOL WHT SMD |
2,490 | - |
|
Datasheet | Golden DRAGON® | 2-SMD, Gull Wing Exposed Pad | Tape & Reel (TR) | Obsolete | White, Cool | 6500K | - | 53lm (45lm ~ 61lm) | 350mA | 3.2V | 47 lm/W | 80 | 500mA | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.236" W (7.00mm x 6.00mm) | 0.079" (2.00mm) |
|
|
LUW CQDP-LQLS-M8MILED OSLON WHITE SMD |
2,450 | - |
|
Datasheet | OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White | - | - | 136lm (121lm ~ 150lm) | 350mA | 3.2V | 121 lm/W | 65 (Typ) | 1A | 150° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
|
LUW CQDP-LQLS-MJMWLED OSLON 65CRI 2SMD |
2,416 | - |
|
Datasheet | OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White | - | - | 136lm (121lm ~ 150lm) | 350mA | 3.2V | 121 lm/W | 65 (Typ) | 1A | 150° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
|
LCW CP7P.PC-KTLP-5L7N-1LED OSLON NEU WHT 4000K 2SMD |
3,665 | - |
|
Datasheet | OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4000K | - | 109lm (97lm ~ 121lm) | 350mA | 3.2V | 97 lm/W | 70 (Typ) | 800mA | 80° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LCW CP7P.PC-KTLP-5J7K-1LED OSLON NEU WHT 4500K 2SMD |
4,994 | - |
|
Datasheet | OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White, Neutral | 4500K | - | 109lm (97lm ~ 121lm) | 350mA | 3.2V | 97 lm/W | 70 (Typ) | 800mA | 80° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LCW CP7P.PC-KTLP-5H7I-1LED OSLON COOL WHITE 5000K SMD |
4,975 | - |
|
Datasheet | OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | - | 109lm (97lm ~ 121lm) | 350mA | 3.2V | 97 lm/W | 70 (Typ) | 800mA | 80° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LCW CQ7P.EC-KSKU-5H7I-1LED WARM WHITE 3000K SMD |
4,895 | - |
|
Datasheet | OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | - | 5000K | 91lm | 101lm (89lm ~ 112lm) | 350mA | 3.2V | 90 lm/W | 82 | 800mA | 80° | - | - | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
