LED White Lighting
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | CCT (K) | Flux @ 85°C, Current - Test | Flux @ 25°C, Current - Test | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Current - Max | Viewing Angle | Grade | Qualification | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

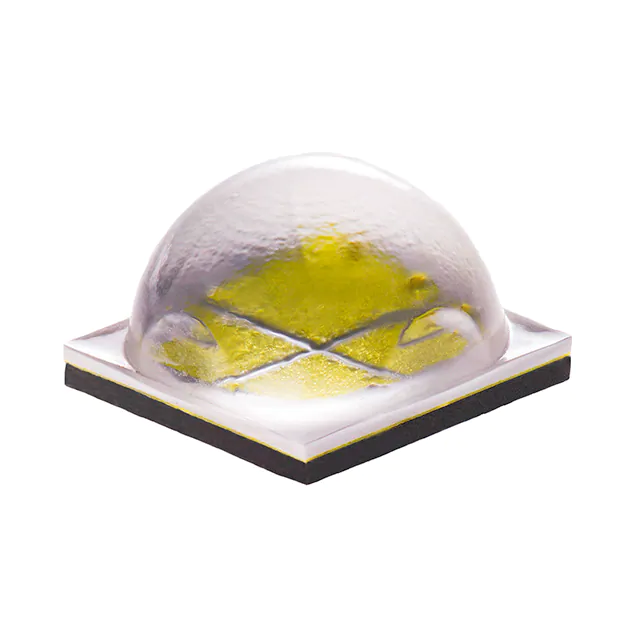

XHP70A-00-0000-0D0UM20DTLED XLAMP COOL WHITE 7000K SMD |
2,667 | - |
|
Datasheet | Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 7000K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20DVLED XLAMP COOL WHITE 6000K SMD |
3,483 | - |
|
Datasheet | Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6000K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
|
XHP70A-00-0000-0D0UM20E1LED XLAMP COOL WHITE 6500K SMD |
4,413 | - |
|
Datasheet | Xlamp® XHP70 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 6500K | 1433lm (1380lm ~ 1485lm) | - | 2.1A, 1.05A | 6V, 12V | 114 lm/W | 90 | 4.8A, 2.4A | 120° | - | - | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.182" (4.62mm) |
|
JE2835AWT-00-0000-000A0BH650ELED J COOL WHITE 5000K SMD |
1,350 | - |
|
Datasheet | J | 1113 (2835 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | - | 79lm (Typ) | 150mA | 3V | 176 lm/W | 70 | 240mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.035" (0.90mm) |
|
|
JE2835AWT-00-0000-000A0BH657ELED J COOL WHITE 5700K SMD |
1,355 | - |
|
Datasheet | J | 1113 (2835 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5700K | - | 79lm (Typ) | 150mA | 3V | 176 lm/W | 70 | 240mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.035" (0.90mm) |
|
|
JE2835AWT-00-0000-000A0HG957ELED J COOL WHITE 5700K SMD |
1,728 | - |
|
Datasheet | J | 1113 (2835 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5700K | - | 75lm (Typ) | 150mA | 3V | 167 lm/W | 80 | 240mA | 120° | - | - | Surface Mount | SMD | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.035" (0.90mm) |
|
XHP35B-00-0000-0D0HE20E5LED XLAMP NEUTRAL WHT 4000K SMD |
1,817 | - |
|
Datasheet | XLamp® XHP35.2 | 1414 (3535 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | White, Neutral | 4000K | 613lm (590lm ~ 635lm) | - | 350mA | 11.2V | 156 lm/W | 80 | 1.05A | 135° | - | - | Surface Mount | SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.109" (2.78mm) |
|
|
MX2835LED |
4,658 | - |
|
Datasheet | * | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XHP50B-01-0000-0D0BJ20CBLED XLAMP COOL WHITE 6500K 2020 |
1,011 | - |
|
Datasheet | Xlamp® XHP50 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | White, Cool | 6500K | 1080lm (1040lm ~ 1120lm) | - | 700mA | 12V | 129 lm/W | 70 | 1.5A | 120° | - | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.146" (3.71mm) |
|
|
JE2835AWT-00-0000-000A0ZF950ELED J COOL WHITE 5000K 1411 |
3,065 | - |
|
Datasheet | J | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | 5000K | - | 60lm (Typ) | 150mA | 3V | 133 lm/W | 95 | 240mA | 120° | - | - | Surface Mount | 1411 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.035" (0.90mm) |
