Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVN2000DSWITCH SNAP ACTION DPST 6A 120V |
3,692 | - |
|
Datasheet | EVN2000 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC) | 120 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1428gf | - | 1.100" (28.0mm) | - | 0.040" (1.0mm) | 0.158" (4.0mm) | -25°C ~ 85°C |
|
GLLA01A1YSWITCH SNAP ACTION SPDT 10A 300V |
2,490 | - |
|
Datasheet | GLL | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Rubber Roller | 12gfm | 2.039gfm | 30° | 30° | 18° | 40° | -10°C ~ 80°C |
|
SZL-VL-FSWITCH SNAP ACTION SPDT 5A 250V |
4,376 | - |
|
Datasheet | SZL-VL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 90gf | - | - | 1.180" (30.0mm) | - | 0.788" (20.0mm) | -20°C ~ 60°C |
|
SZL-VL-GSWITCH SNAP ACTION SPDT 5A 250V |
1,412 | - |
|
Datasheet | SZL-VL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 250 V | 125 V | Spring, Wire | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 90gf | - | - | 1.180" (30.0mm) | - | 0.788" (20.0mm) | -20°C ~ 60°C |
|

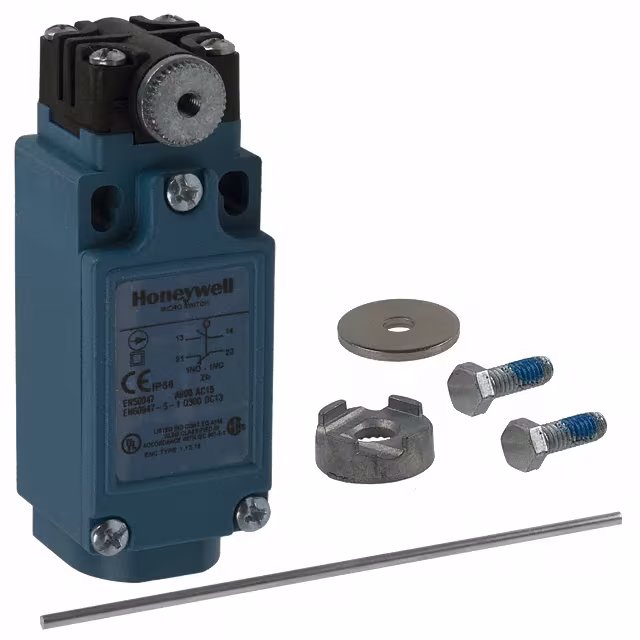

GLCA01A4JSWITCH SNAP ACTION SPDT 6A 120V |
4,933 | - |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
GLCA01BSWITCH SNAP ACTION SPDT 6A 120V |
3,428 | - |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|

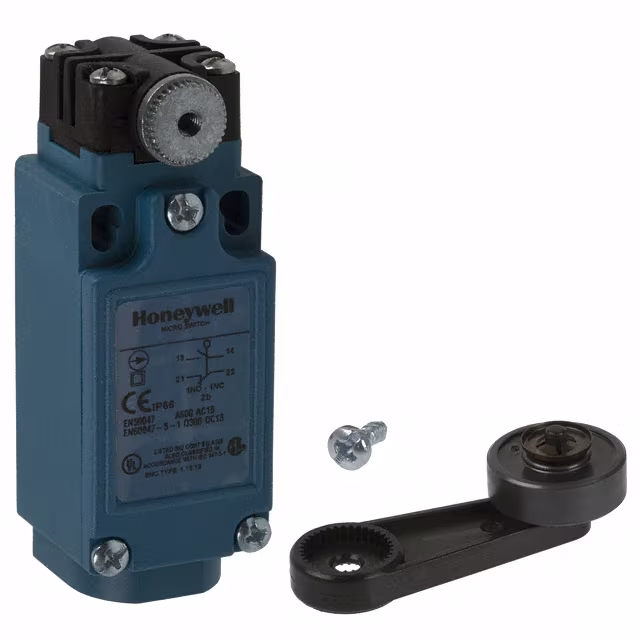

GLDA01A1ASWITCH SNAP ACTION SPDT 6A 120V |
1,342 | - |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|

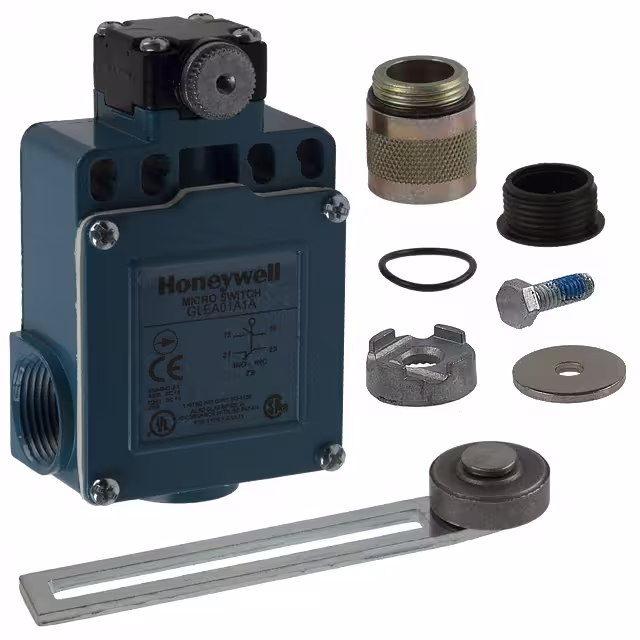

GLEA01A1ASWITCH SNAP ACTION SPDT 6A 120V |
3,427 | - |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|

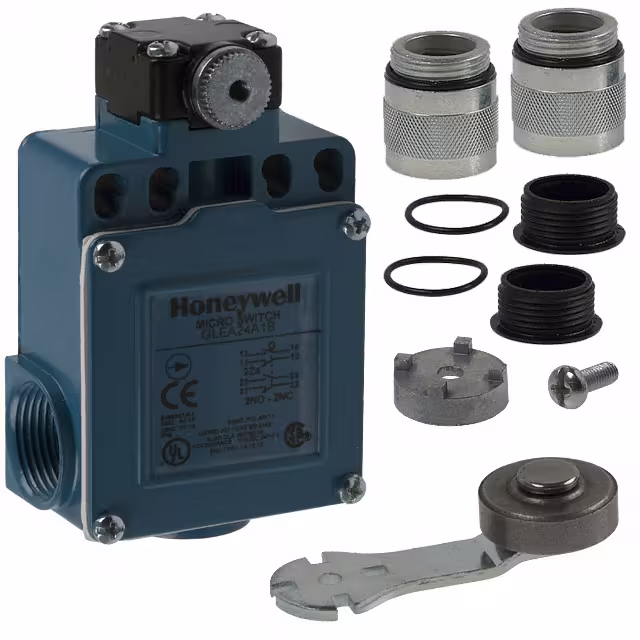

GLEA24A1BSWITCH SNAP ACTION DPDT 6A 120V |
4,110 | - |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|
GLLC01CSWITCH SNAP ACTION SPDT 10A 300V |
1,268 | - |
|
Datasheet | GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1000gf | 153gf | 1.130" (28.7mm) | 0.110" (2.8mm) | 0.060" (1.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

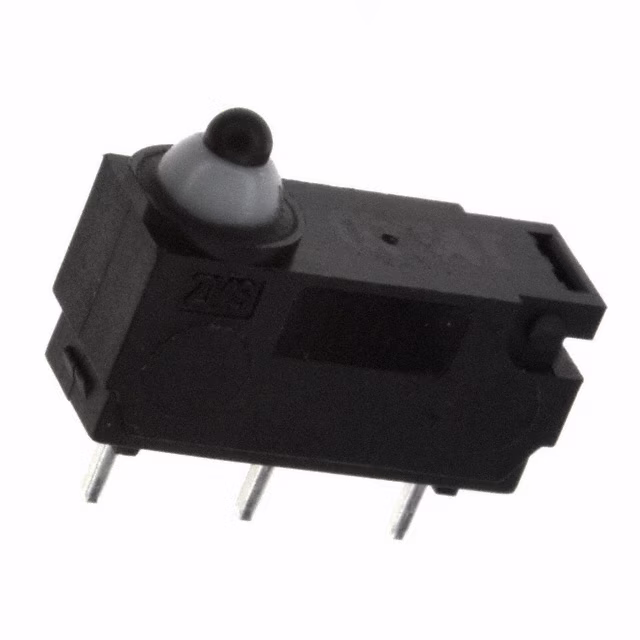

ZMSL03130P00PSCSWITCH SNAP ACTION SPDT 3A 125V |
1,010 | - |
|
Datasheet | ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

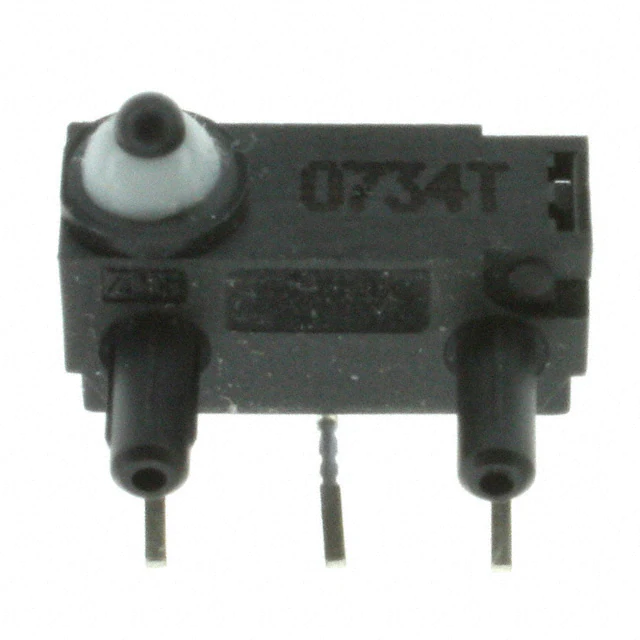

ZMSL03130P00RRCSWITCH SNAP ACTION SPDT 3A 125V |
0 | - |
|
Datasheet | ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

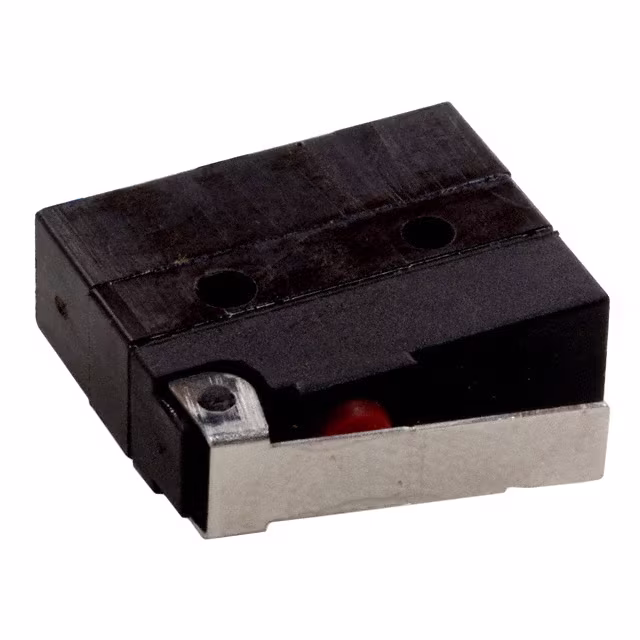

LCS06A060L27QCSWITCH SNAP ACTION SPDT 6A 125V |
1,213 | - |
|
Datasheet | LCS | Tray | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 8.000gf | - | 0.420" (10.7mm) | 0.354" (9.0mm) | - | 0.094" (2.4mm) | -40°C ~ 125°C |
|
WLCA12-TSSWITCH SNAP ACTION SPDT 10A 125V |
4,318 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
WLCA2-TSSWITCH SNAP ACTION SPDT 10A 125V |
4,954 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 227gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
WLCL-TSSWITCH SNAP ACTION SPDT 10A 125V |
2,816 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 141gf | 28gf | - | 15° | 12° | 30° | -10°C ~ 80°C |
|
WLD-TSSWITCH SNAP ACTION SPDT 10A 125V |
2,219 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.339" (34.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.252" (6.4mm) | -10°C ~ 80°C |
|
WLD2-TSSWITCH SNAP ACTION SPDT 10A 125V |
1,648 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
WLG2-LDSWITCH SNAP ACTION SPDT 5A 125V |
4,585 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 100gf | - | 10° | 7° | 65° | -10°C ~ 80°C |
|
WLNJ-TSSWITCH SNAP ACTION SPDT 10A 125V |
4,979 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
