Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
831540C3.B9SWITCH SNAP ACTION SPDT 5A 250V |
4,957 | - |
|
Datasheet | 83154 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (DC) | - | 250 V | Ball Bearing Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Magnetic Blowout | 408gf | 102gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | - | -40°C ~ 125°C |
|
|
831604IW3.ULSWITCH SNAP ACTION QC 1/4" |
4,567 | - |
|
Datasheet | 83160 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
831607B6.ASWITCH SNAP ACT SPST-NC 6A 250V |
2,962 | - |
|
Datasheet | 83160 | Bulk | Active | SPST-NC | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

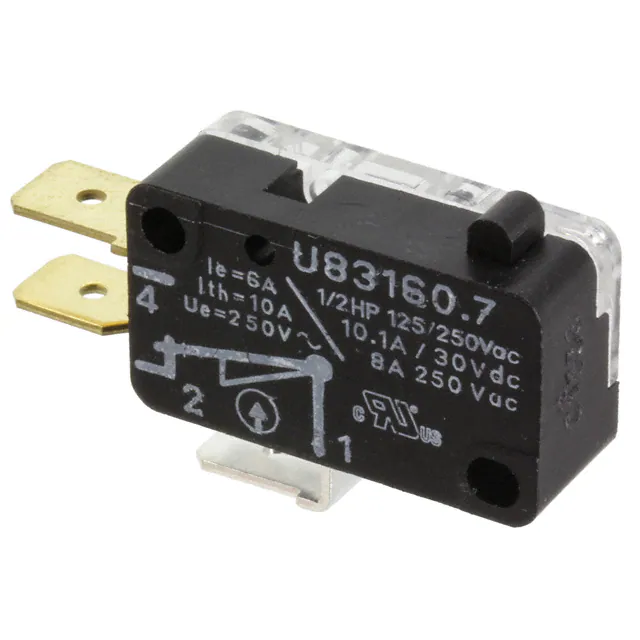

831607C3.0SWITCH SNAP ACTION SPDT 6A 250V |
4,112 | - |
|
Datasheet | 83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 408gf | 153gf | 0.583" (14.8mm) | - | - | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
831607C3.ASWITCH SNAP ACTION SPDT 6A 250V |
2,672 | - |
|
Datasheet | 83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|

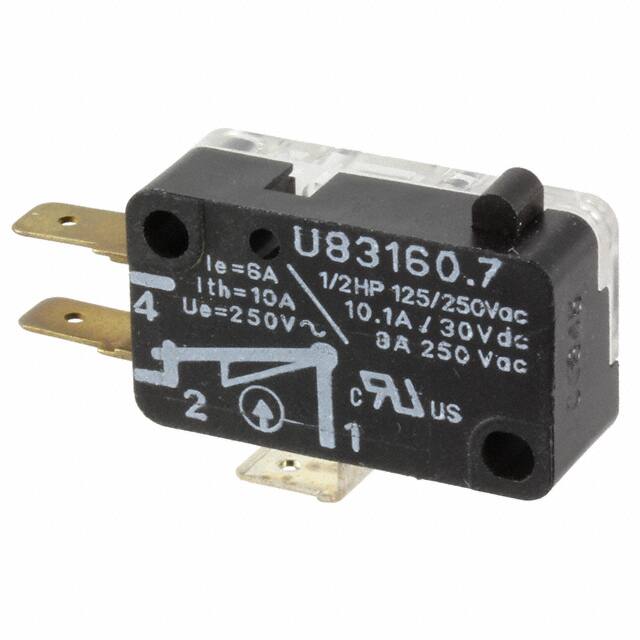

831607C6.0SWITCH SNAP ACTION SPDT 6A 250V |
4,024 | - |
|
Datasheet | 83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 408gf | 153gf | 0.583" (14.8mm) | - | - | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
831607C6.LSWITCH SNAP ACTION SPDT 6A 250V |
3,106 | - |
|
Datasheet | 83160 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
831611A2.0SWITCH SNAP ACT SPST-NO 16A 250V |
2,458 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 306gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|
|
831611C3.FASWITCH SNAP ACTION SPDT 16A 250V |
1,972 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 34gf | 0.803" (20.4mm) | - | 0.041" (1.05mm) | 0.130" (3.3mm) | -20°C ~ 125°C |
|
831611C6.BBSWITCH SNAP ACTION SPDT 16A 250V |
1,488 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 153gf | 51gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
|
|
831612A2.0SWITCH SNAP ACT SPST-NO 20A 250V |
4,524 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
831612A3.0SWITCH SNAP ACT SPST-NO 20A 250V |
1,157 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831612A5.0SWITCH SNAP ACT SPST-NO 20A 250V |
3,211 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
831612A6.0SWITCH SNAP ACT SPST-NO 20A 250V |
3,586 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831612A6.BBSWITCH SNAP ACT SPST-NO 20A 250V |
3,298 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NO | Off-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
|
831612B5.0SWITCH SNAP ACT SPST-NC 20A 250V |
4,730 | - |
|
Datasheet | 83161 | Bulk | Active | SPST-NC | On-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831612C2.EASWITCH SNAP ACTION SPDT 20A 250V |
4,760 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 41gf | 10gf | 0.806" (20.5mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
|
831612C3.LSWITCH SNAP ACTION SPDT 20A 250V |
4,608 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.846" (21.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
831612C5.0SWITCH SNAP ACTION SPDT 20A 250V |
3,763 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
831612C6.BBSWITCH SNAP ACTION SPDT 20A 250V |
3,990 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
