Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12SM4SWITCH SNAP ACTION SPDT 1A 125V |
3,002 | - |
|
Datasheet | SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|
|
12BS201SWITC ADJ PLUNGER SPDT 15A SCREW |
1,982 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-2RW82212-A2SWITCH SNAP ACTION SPDT 15A 125V |
3,903 | - |
|
Datasheet | BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
2SX27-TSWITCH SNAP ACTION SPDT 7A 250V |
4,568 | - |
|
Datasheet | SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 85gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
BZ-2AW84223TSWITCH SNAP ACTION SPDT 15A 125V |
2,131 | - |
|
Datasheet | BZ | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 7.087gf | 1.188" (30.2mm) | 0.200" (5.1mm) | 0.025" (0.6mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
WZ-RX65-A2F1SWITCH LARGE BASIC |
4,375 | - |
|
Datasheet | WZ | Bulk | Obsolete | SPST-NC | On-Mom | 15A | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 85°C |
|
|
WA-1RVX132-A4SWITCH SNAP ACT SPST-NC 20A 125V |
1,016 | - |
|
Datasheet | WA | Bulk | Obsolete | SPST-NC | On-Off | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 482gf | - | 0.738" (18.7mm) | - | - | 0.010" (0.25mm) | -55°C ~ 85°C |
|

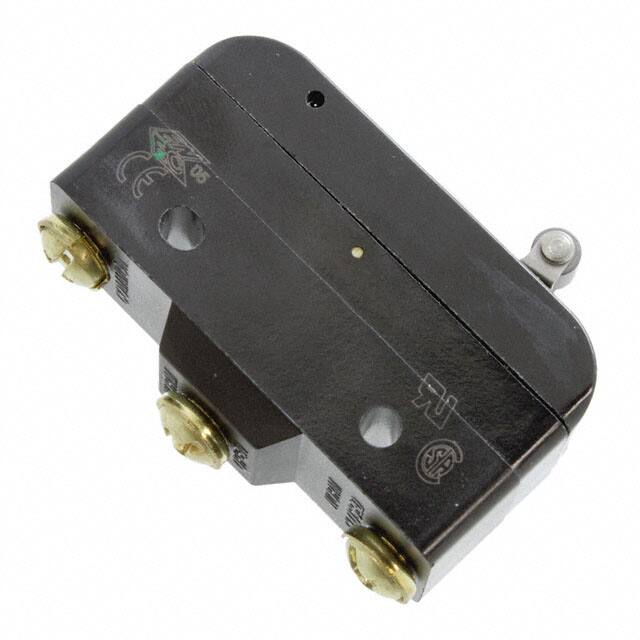

BZ-2RW828-A2SWITCH SNAP ACTION SPDT 15A 125V |
2,953 | - |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 71gf | 7.087gf | 0.984" (25.0mm) | 0.125" (3.2mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
BZ-2RQ25272TSWITCH LARGE BASIC |
2,717 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-RQ66SWITCH SNAP ACTION SPDT 15A 125V |
1,491 | - |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 170 ~ 269gf | 113gf | 1.500" (38.1mm) | 0.012" (0.3mm) | 0.0005" (0.013mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
