Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NGCMB10AX01LSWITCH SNAP ACTION DPST 6A 120V |
1,634 | - |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

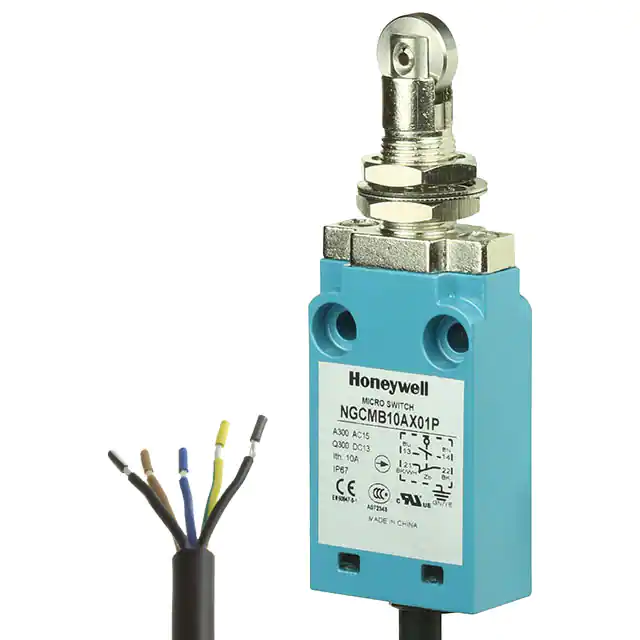

NGCMB10AX01PSWITCH SNAP ACTION DPST 6A 120V |
4,853 | - |
|
Datasheet | NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
NGCPC10BX07JSWITCH LIMIT |
2,362 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLDA03DSWITCH SNAP ACTION SPDT 6A 120V |
4,253 | - |
|
Datasheet | GLS | Bulk | Obsolete | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 953gf | - | 1.409" (35.8mm) | 0.138" (3.5mm) | 0.050" (1.3mm) | 0.205" (5.2mm) | -40°C ~ 85°C |
|
BZ-2R708-P7SWITCH SNAP ACTION SPDT 15A 125V |
4,134 | - |
|
Datasheet | BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
NGCPB15BX01A2ASWITCH LIMIT |
4,136 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCMC10RX01J-L40SWITCH LIMIT |
3,276 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91MCE28-SQSWITCH SNAP ACTION DPST 6A 120V |
2,975 | - |
|
Datasheet | 91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
|
91MCE28-S1SWITCH SNAP ACTION DPST 6A 120V |
4,047 | - |
|
Datasheet | 91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
|
91MCE30-SQSWITCH SNAP ACTION DPST 6A 120V |
2,312 | - |
|
Datasheet | 91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
