Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS2YAB4KSWITCH SNAP ACTION SPDT 10A 120V |
1,778 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Stainless Steel | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|

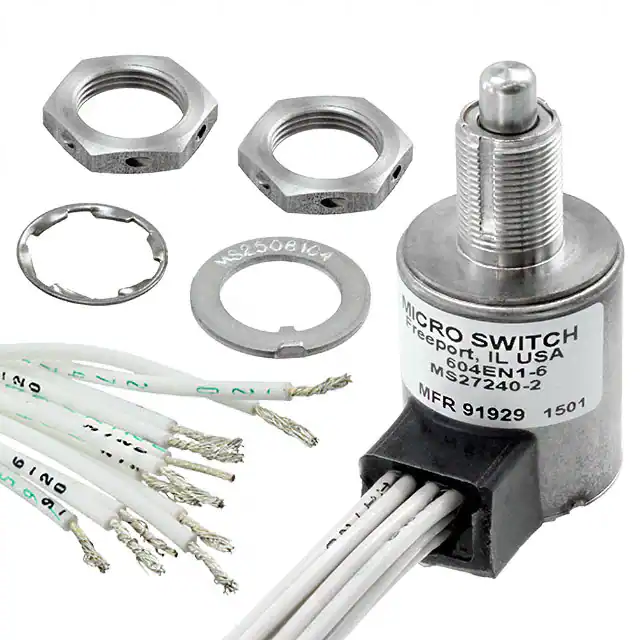

604EN1-6SWITCH SNAP ACTION 4PDT 7A 28V |
1,586 | - |
|
Datasheet | EN | Bulk | Active | 4PDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -54°C ~ 85°C |
|

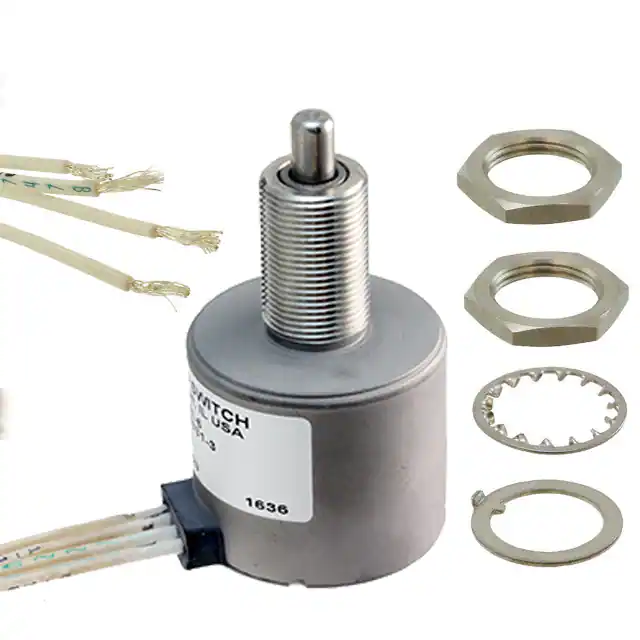

3EN1-6SWITCH SNAP ACTION SPDT 15A 28V |
1,036 | - |
|
Datasheet | EN | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 2268gf | - | 0.060" (1.5mm) | 0.035" (0.9mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|
9EN2C11BC5BB1SWITCH AERO SEALED |
1,169 | - |
|
Datasheet | EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
BZ-2R72-A2SWITCH SNAP ACTION SPDT 1A 125V |
2,023 | - |
|
Datasheet | BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
GLLC01A1BSWITCH SNAP ACTION SPDT 10A 300V |
4,803 | - |
|
Datasheet | GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Metal Roller | 12gfm | 2.039gfm | 30° | 30° | 18° | 40° | -10°C ~ 80°C |
|
BZ-3YTSWITCH SNAP ACTION SPDT 5A 250V |
1,988 | - |
|
Datasheet | BZ | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
BZE6-7RNSWITCH SNAP ACTION SPDT 15A 125V |
4,577 | - |
|
Datasheet | E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 624 ~ 1106gf | 113gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.005" (0.13mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
914CE1-6ASWITCH SNAP ACTION SPDT 5A 240V |
2,036 | - |
|
Datasheet | 914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
SL1-HSWITCH SNAP ACTION SPDT 5A 125V |
3,190 | - |
|
Datasheet | SL1 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
