Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007C54JS9SWITCH LIMIT 10A 600V |
2,526 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
9007ML03S0500SWITCH LIMIT SPDT 6A 120V |
2,400 | - |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
XCKD25H2P16SWITCH LIMIT DPST 3A 240V |
4,500 | - |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007ML07S0100SWITCH LIMIT SPDT 6A 120V |
4,361 | - |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
9007MS04G0510SWITCH LIMIT SPDT 0.1A 125V |
3,811 | - |
|
Datasheet | 9007 | Box | Active | SPDT | On-Mom | 100mA (AC), 30mA (DC) | 125 V | 28 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|

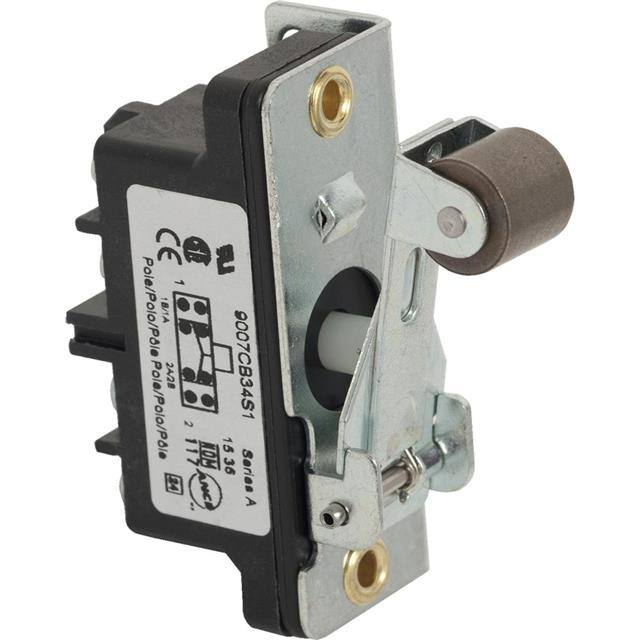

9007CB34SWITCH LIMIT 4PST 3A 120V |
3,225 | - |
|
Datasheet | Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 3A (AC), 200mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C62B2M11SWITCH LIMIT 4PST 6A 120V |
1,650 | - |
|
Datasheet | Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
XCKD2128M12SWITCH LIMIT DPST 3A 50V |
4,625 | - |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Lever, Roller | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007C62B2Y128SWITCH NEMA LIMIT 4PST 6A 120V |
2,589 | - |
|
Datasheet | Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
9007C62B2Y231SWITCH LIMIT 10A 600V |
2,087 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
