Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L100WDR2M5SWITCH LIMIT DPST-NC 20A 120V |
2,425 | - |
|
Datasheet | Square D L100 | Box | Active | DPST-NC | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
L100WDR2M4SWITCH LIMIT DPST 20A 120V |
3,860 | - |
|
Datasheet | L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L100WDL2M7SWITCH LIMIT DPST 20A 120V |
3,027 | - |
|
Datasheet | L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
L100WNSL2M29SWITCH LIMIT DPST 20A 120V |
3,728 | - |
|
Datasheet | Square D L100 | Box | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
XCSM3716L2SWITCH SAFETY LMT 3PST 1.5A 240V |
4,913 | - |
|
Datasheet | XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMW159MINI WIRELESS LIMIT SW PLASTIC R |
2,933 | - |
|
Datasheet | XCMW | Bulk | Active | - | - | - | - | - | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 55°C |
|
|
9007AEQ4097LIMIT SWITCH 240VAC 10 AMP DEUTC |
2,442 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCLJ565H29SWITCH LIMIT DPST 3A 240V |
4,681 | - |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XC2JC161SWITCH LIMIT 3A 240V |
1,283 | - |
|
Datasheet | OsiSense XC | Box | Active | - | - | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

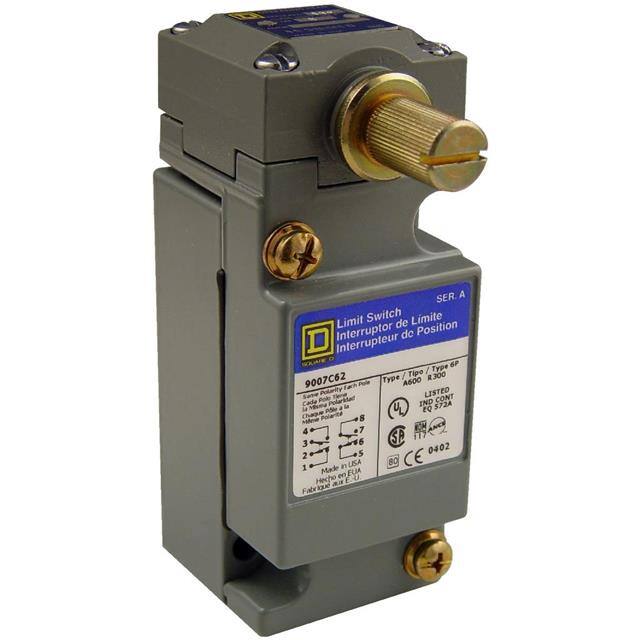

9007C66B2Y247SWITCH LIMIT 4PST 6A 120V |
1,096 | - |
|
Datasheet | Square D 9007C | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
