Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L300WDR2M4SWITCH LIMIT DPST 20A 120V |
1,873 | - |
|
Datasheet | L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L300WDL2M8SWITCH LIMIT DPST 20A 120V |
3,536 | - |
|
Datasheet | L100/300 | Bulk | Active | DPST-NC (DB) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L300WDL2M7SWITCH LIMIT DPST 20A 120V |
3,060 | - |
|
Datasheet | L100/300 | Bulk | Active | DPST-NO (DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007C54BWBA17SWITCH LIMIT 10A 600V |
3,966 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54DY1905SWITCH LIMIT 10A 600V |
4,471 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | Roller Plunger | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
XCLJ561H29SWITCH LIMIT DPST 3A 240V |
4,017 | - |
|
Datasheet | XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

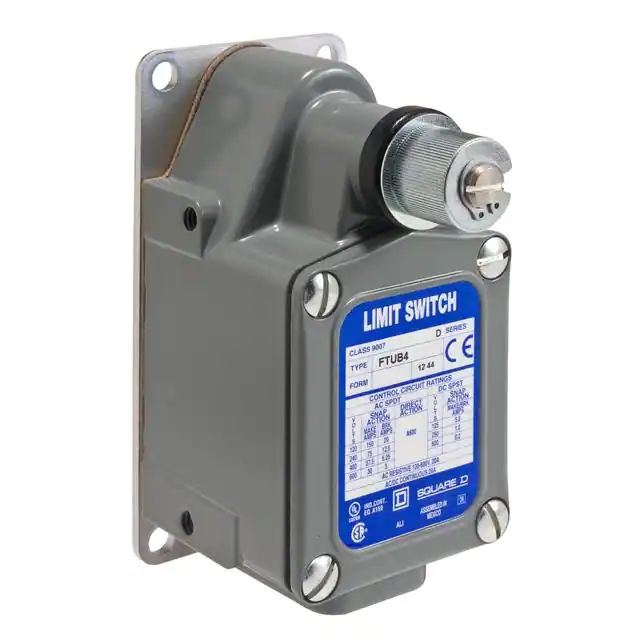

9007FTUB5SWITCH NEMA LIMIT SPDT 20A 120V |
4,828 | - |
|
Datasheet | Square D 9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007FTUB1SWITCH LIMIT SPDT 20A 120V |
3,088 | - |
|
Datasheet | Square D 9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007C54DY19022SWITCH LIMIT 10A 600V |
2,656 | - |
|
Datasheet | C | Box | Active | - | - | 10A (AC) | 600 V | - | Roller Plunger | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
XC2JC105SWITCH LIMIT 3A 240V |
2,754 | - |
|
Datasheet | OsiSense XC | Box | Active | - | - | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
