Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007AB41SWITCH LIMIT SPDT 15A 120V |
4,547 | - |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
XCKP2145M12SWITCH LIMIT DPDT 3A 240V |
4,120 | - |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKP2106M12SWITCH LIMIT DPDT 3A 240V |
4,440 | - |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007MS12S0100SWITCH LIMIT SPDT 6A 120V |
2,289 | - |
|
Datasheet | 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
XCMD6106L1SWITCH LIMIT DPDT 1.5A 240V |
4,787 | - |
|
Datasheet | XCMD | Box | Active | DPDT (DB/DM) | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

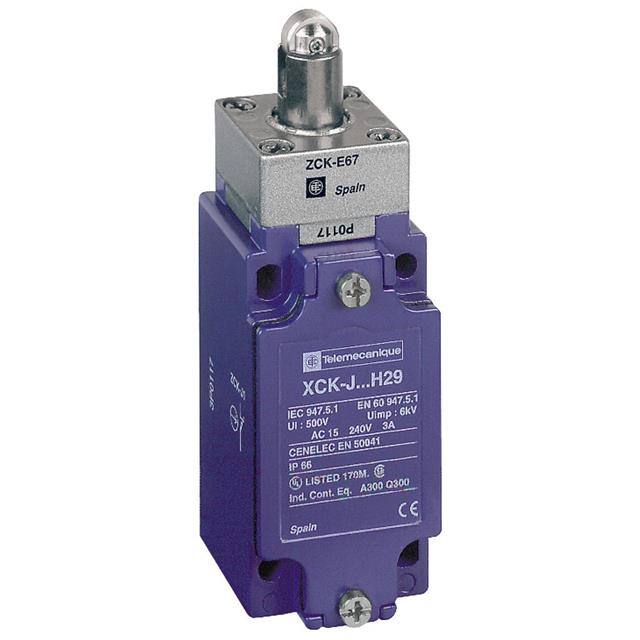

XCKJ567H7SWITCH LIMIT DPDT 3A 240V |
1,501 | - |
|
Datasheet | XCKJ | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKD6802G11SWITCH LIMIT DPDT 3A 240V |
4,390 | - |
|
Datasheet | XCKD | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007AD2SWITCH SNAP ACTION 15A 600V |
3,795 | - |
|
Datasheet | Square D 9007 | Box | Active | - | - | 15A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
XCKD2106M12SWITCH LIMIT DPDT 3A 50V |
3,513 | - |
|
Datasheet | XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Spring, Cat Whisker | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
9007CO54B2SWITCH NEMA LIMIT SPDT 10A 120V |
2,970 | - |
|
Datasheet | 9007C | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
