Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3CQF1802L07SWITCH LIMIT SPDT 16A 125V |
3,302 | - |
|
Datasheet | VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
VM3AQF0801L00SWITCH LIMIT SPST-NO 16A 125V |
1,600 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 40gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
VM3AQF0802L00SWITCH LIMIT SPST-NO 16A 125V |
2,714 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 40gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
VM3AQF1801L02SWITCH LIMIT SPST-NO 16A 125V |
4,775 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 40gf | 0.697" (17.7mm) | 0.122" (3.1mm) | 0.027" (0.7mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF1802L04SWITCH LIMIT SPST-NO 16A 125V |
2,594 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 145gf | 60gf | 0.560" (14.2mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|

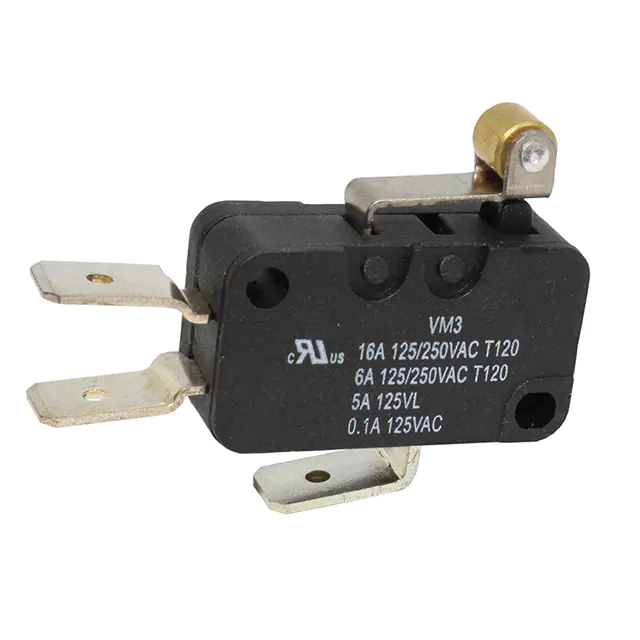

VM3CQF1801L06SWITCH LIMIT SPDT 16A 125V |
2,913 | - |
|
Datasheet | VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 80gf | 0.785" (19.9mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
VM3AQF0801L03SWITCH LIMIT SPST-NO 16A 125V |
3,529 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF0802L03SWITCH LIMIT SPST-NO 16A 125V |
3,519 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF1801L01SWITCH LIMIT SPST-NO 16A 125V |
2,776 | - |
|
Datasheet | VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 60gf | 0.732" (18.6mm) | 0.146" (3.7mm) | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 120°C |
|
VM3CQF1801L07SWITCH LIMIT SPDT 16A 125V |
2,083 | - |
|
Datasheet | VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
