Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83181006SWITCH SNAP ACTION SPDT 6A 250V |
2,916 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
831613C5.0SWITCH SNAP ACTION SPDT 16A 250V |
3,607 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
|
83262028SWITCH SNAP ACTION SPDT 20A 250V |
1,975 | - |
|
Datasheet | V3D | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 102gf | 25gf | 0.806" (20.5mm) | - | 0.031" (0.8mm) | 0.079" (2.0mm) | -20°C ~ 125°C |
|
X0229209SWITCH SNAP ACTION SPDT 6A 250V |
1,074 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 125°C |
|
X0229211SWITCH SNAP ACTION SPDT 6A 250V |
3,541 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.512" (13.0mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
|
X0221749SWITCH SNAP ACTION SPDT 16A 250V |
1,304 | - |
|
Datasheet | 83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | - | - | - | 306gf | 102gf | 0.846" (21.5mm) | - | 0.014" (0.35mm) | 0.045" (1.1mm) | -20°C ~ 125°C |
|

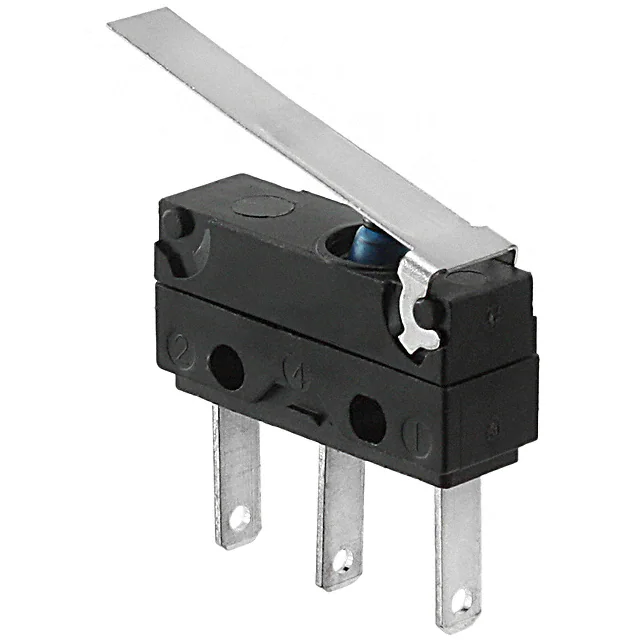

83181061SWITCH SNAP ACTION SPDT 6A 250V |
2,199 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 125°C |
|
83180002SWITCH SNAP ACTION SPDT 10A 250V |
1,848 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
83181055SWITCH SNAP ACTION SPDT 6A 250V |
2,220 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 255gf | 82gf | 0.579" (14.7mm) | - | 0.006" (0.15mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
83180001SWITCH SNAP ACTION SPDT 10A 250V |
4,555 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
