Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

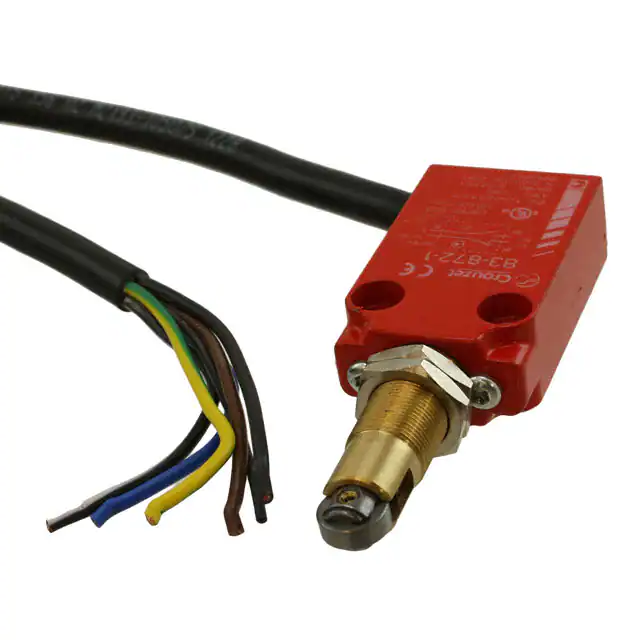

83872102SWITCH SNAP ACTION DPST 6A 120V |
4,633 | - |
|
Datasheet | 83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83133073SWITCH SNAP ACTION SPDT 5A 125V |
1,413 | - |
|
Datasheet | 83133 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | -20°C ~ 125°C |
|
83200004SWITCH SNAP ACTION SPDT 4A 250V |
3,676 | - |
|
Datasheet | 83200 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 153gf | 20gf | 0.413" (10.5mm) | - | 0.006" (0.15mm) | 0.079" (2.0mm) | -40°C ~ 90°C |
|
83186057SWITCH SNAP ACTION SPDT 6A 250V |
2,530 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.512" (13.0mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
X0229210SWITCH SNAP ACTION SPDT 6A 250V |
1,929 | - |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
X0229189SWITCH SNAP ACTION SPDT 6A 250V |
3,629 | - |
|
Datasheet | 83180 | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 105°C |
|
|
831064C3.0SWITCH SNAP ACTION SPDT 5A 250V |
4,941 | - |
|
Datasheet | 83106 | Bulk | Active | SPDT (DB/DM) | On-On | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 46gf | - | - | - | - | - | -20°C ~ 85°C |
|
831180C1.0SWITCH SNAP ACTION 10A SCRW NONE |
4,749 | - |
|
Datasheet | 83118 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83169024SWITCH SNAP ACTION SPDT 8A 125V |
3,959 | - |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 8A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1.2m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
83241020SWITCH SNAP ACTION DPST 0.1A 30V |
2,609 | - |
|
Datasheet | PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 100mA (AC/DC) | 30 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
