Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLAA29J1BSWITCH SNAP ACTION DPDT 0.1A 50V |
1,575 | - |
|
Datasheet | GLS | Bulk | Obsolete | DPDT | Mom-Off-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 998gf | - | 16° | 16° | 8° | - | -25°C ~ 85°C |
|
DTE6-2RQSWITCH SNAP ACTION DPDT 10A 125V |
2,584 | - |
|
Datasheet | E6 | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 567 ~ 1134gf | - | 1.885" (47.9mm) | 0.150" (3.8mm) | 0.060" (1.5mm) | 0.087" (2.2mm) | -32°C ~ 71°C |
|
|
LSE6B5SWITCH SNAP ACTION DPDT 10A 120V |
3,368 | - |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
1SE2SWITCH SNAP ACT SPST-NC 5A 250V |
3,196 | - |
|
Datasheet | SE | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|

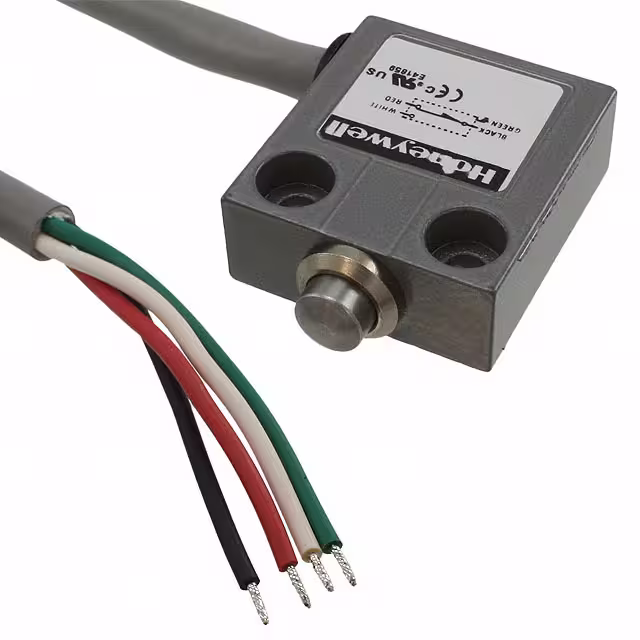

914CE1-9ASWITCH SNAP ACTION SPDT 5A 240V |
3,228 | - |
|
Datasheet | 914CE | Bulk | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 240 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 1200gf | 450gf | 0.618" (15.7mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
WLCA2-A-NSWITCH LIMIT RLLR LVR DBL LVR |
1,553 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLD18-TS-NSWITCH PLUNGR SWITCH 1/2-14NPT |
1,080 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLSD-NSWITCH PLUNGER HRZTL |
3,744 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLRCA2-G1-NSWITCH LIMIT WITHOUT LEVER |
2,481 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

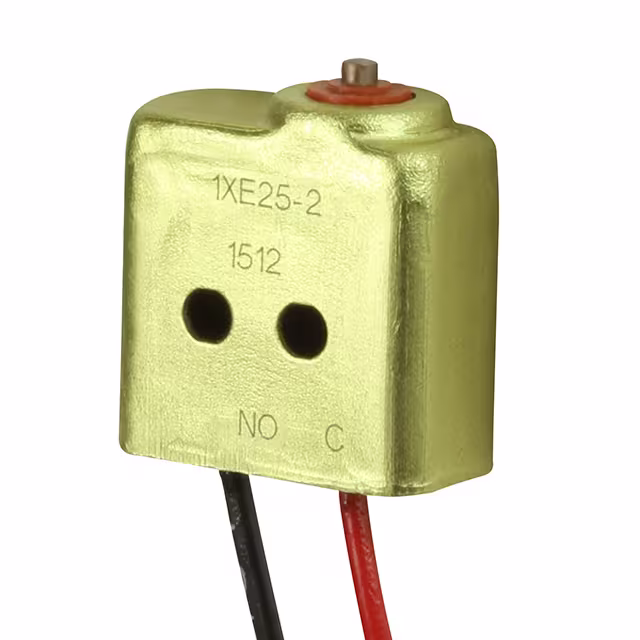

1XE25-2SWITCH SNAP ACT SPST-NO 7A 115V |
4,173 | - |
|
Datasheet | XE | Bulk | Active | SPST-NO | Off-Mom | 7A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -54°C ~ 105°C |
|
BZLN-RH5SWITCH SNAP ACTION SPDT 15A 125V |
4,421 | - |
|
Datasheet | LN | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Right Side | 2268gf | 454gf | 1.640" (41.65mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.203" (5.15mm) | -32°C ~ 55°C |
|
3SE51320CJ82SWITCH LIMIT DPST 6A 125V |
4,586 | - |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52421KC05SWITCH LIMIT 3PST 3A 24V |
4,667 | - |
|
Datasheet | 3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
LSW3KSWITCH SNAP ACTION SPDT 10A 120V |
1,176 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Side Plunger | Chassis Mount | Screw Terminal | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSA5A-1DSWITCH SNAP ACTION SPDT 10A 120V |
4,580 | - |
|
Datasheet | HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 93°C |
|
|
GLGA12A4JSWITCH SNAP ACT SPDT 0.1A 250V |
3,899 | - |
|
Datasheet | GLS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 250 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Status Indicator | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
924CE3-S9SWITCH SNAP ACTION SPDT 10A 250V |
4,753 | - |
|
Datasheet | 924CE | Bulk | Obsolete | SPDT (BBM) | On-Mom | 10A (AC) | 250 V | - | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 9' | 2300gf | - | 1.193" (30.3mm) | 0.087" (2.2mm) | - | 0.039" (1.0mm) | 0°C ~ 70°C |
|
BZV6-2RN2SWITCH SNAP ACTION SPDT 15A 125V |
3,070 | - |
|
Datasheet | V6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 283 ~ 567gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
XCKD2545N12SWITCH LIMIT 10A 240V |
4,092 | - |
|
Datasheet | XCKD | Box | Active | - | - | 10A (AC) | 240 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

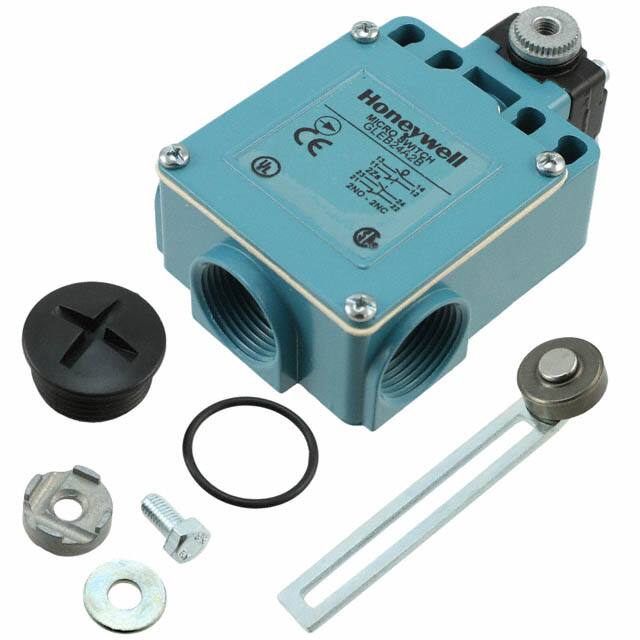

GLEB24A2BSWITCH SNAP ACTION DPDT 6A 120V |
2,252 | - |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
