Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206LS2SWITCH SNAP ACTION SPDT 10A 120V |
4,913 | - |
|
Datasheet | LS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 34gfm | - | - | 55° | - | - | -29°C ~ 71°C |
|
|
WLGCA2-2-TSSWITCH SNAP ACTION SPDT 5A 125V |
4,132 | - |
|
Datasheet | WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 150gf | - | 5° | 3° | 40° | -10°C ~ 80°C |
|
|
WLG2-LD-NSWITCH SNAP ACTION SPDT 5A 125V |
4,919 | - |
|
Datasheet | WL-N | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 10° | 7° | 80° | -10°C ~ 80°C |
|
|
BAF3-2RN-RHPGSWITCH SNAP ACTION SPDT 20A 125V |
3,202 | - |
|
Datasheet | BAF3 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | 0°C ~ 70°C |
|
|
612.1377.850SWITCH LIMIT METAL BODY |
4,251 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
612.1377.849SWITCH LIMIT DPST 3A 240V |
2,652 | - |
|
Datasheet | GC | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC), 4A (DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
3SE51320CJ60SWITCH LIMIT DPST 6A 125V |
3,506 | - |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
GLAA20A2BSWITCH SNAP ACTION DPDT 6A 120V |
4,574 | - |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
|
WLG2-LE-NSWITCH LIMIT RLR LVR LAMP |
3,352 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
612.1167.862SWITCH LIMIT METAL BODY |
2,038 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZLN-LH5SWITCH SNAP ACTION SPDT 15A 125V |
3,137 | - |
|
Datasheet | LN | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Left Side | 2268gf | 454gf | 1.640" (41.65mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.203" (5.15mm) | -32°C ~ 55°C |
|
|
LSM4N-1ASWITCH SNAP ACTION DPDT 10A 120V |
4,571 | - |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
LSM7N-1ASWITCH SNAP ACTION DPDT 10A 120V |
4,445 | - |
|
Datasheet | HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
51.652RFOOT SWITCHFM1SU1F1UBKREDGD SPDT |
3,514 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

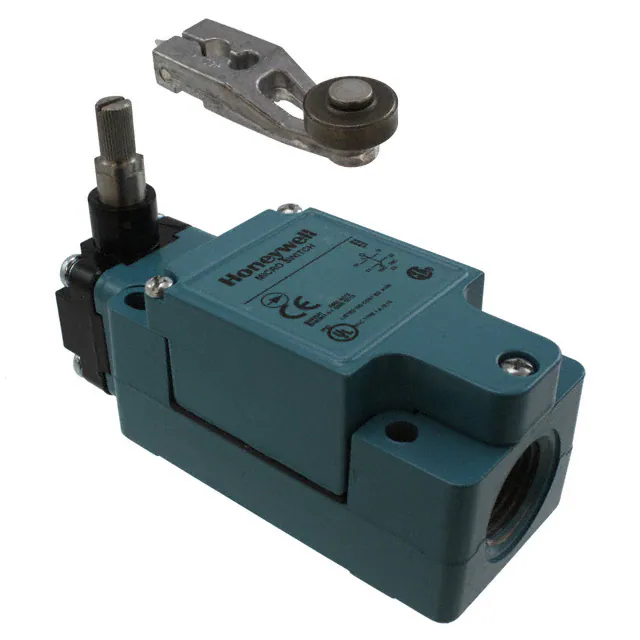

GLBC02A1BSWITCH SNAP ACTION SPDT 6A 120V |
3,233 | - |
|
Datasheet | GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 33gfm | - | 26° | 26° | 12° | 59° | -25°C ~ 85°C |
|
BZE6-2RN4SWITCH SNAP ACTION SPDT 15A 125V |
4,624 | - |
|
Datasheet | E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Manual Palm Button | Chassis Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Actuator Seal Boot | 283 ~ 567gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
1SE7SWITCH SNAP ACTION SPDT 1A 30V |
4,420 | - |
|
Datasheet | SE | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | Waterproof | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -54°C ~ 105°C |
|
|
GLFB34BLIMIT SWITCH |
3,231 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DT-2R3-A7SWITCH SNAP ACTION DPDT 10A 125V |
1,893 | - |
|
Datasheet | DT | Bulk | Obsolete | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 340 ~ 567gf | 57gf | 0.615" (15.6mm) | 0.075" (1.9mm) | 0.060" (1.5mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
LSYAC1A-4NSWITCH SNAP ACTION SPDT 10A 120V |
2,772 | - |
|
Datasheet | HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
