Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCKJ1524911LIMIT SWITCH THERMOPLAS RLLR LVR |
2,758 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
14XE17-TSWITCH SNAP ACTION SPDT 7A 28V |
3,839 | - |
|
Datasheet | XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 255gf | 57gf | 0.429" (10.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
601.0853.002SWITCH LIMIT REMOTE RESET |
1,919 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSA5ASWITCH SNAP ACTION SPDT 10A 120V |
1,080 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Status Indicator | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 93°C |
|
|
LSA1A2-2JSWITCH SNAP ACTION SPDT 10A 120V |
2,642 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | - | Counterclockwise Operation Only | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
3SE54230CC211EA2SWITCH LIMIT DPST 6A 125V |
4,970 | - |
|
Datasheet | 3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
ZC-Q2255-MR VCT 5MSWITCH SNAP ACTION SPDT 10A 125V |
3,640 | - |
|
Datasheet | ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1200gf | 500gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
SHL-W255-L6MD7 3.0MSWITCH SNAP ACTION SPDT 10A 125V |
3,927 | - |
|
Datasheet | SHL | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | - | IP67 - Dust Tight, Waterproof | Status Indicator | 400gf | 80gf | 1.300" (33.0mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
LSYEC4LX-FPSWITCH SNAP ACTION DPDT 10A 120V |
1,036 | - |
|
Datasheet | HDLS | Bulk | Discontinued at Digi-Key | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 105°C |
|
|
OPD-AR62SWITCH SNAP ACTION OPSIDE |
3,724 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
44506-1010SWITCH SNAP ACTION 2NC/1NO NPT |
1,839 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

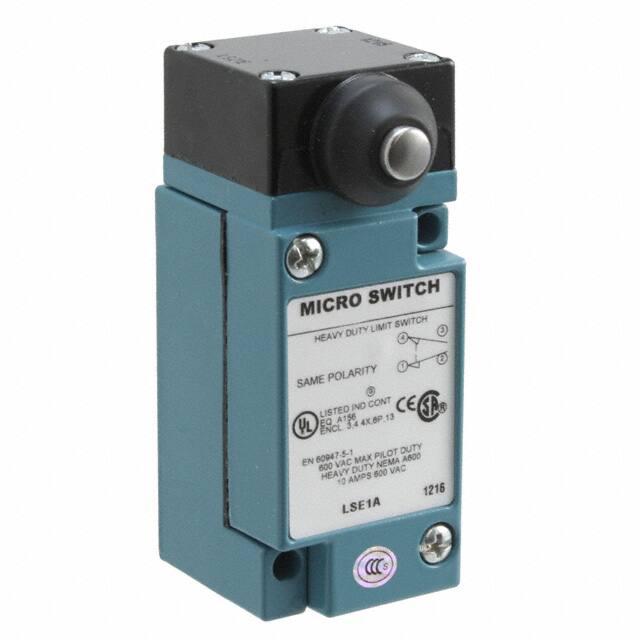

LSE1ASWITCH SNAP ACTION SPDT 10A 120V |
1,025 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

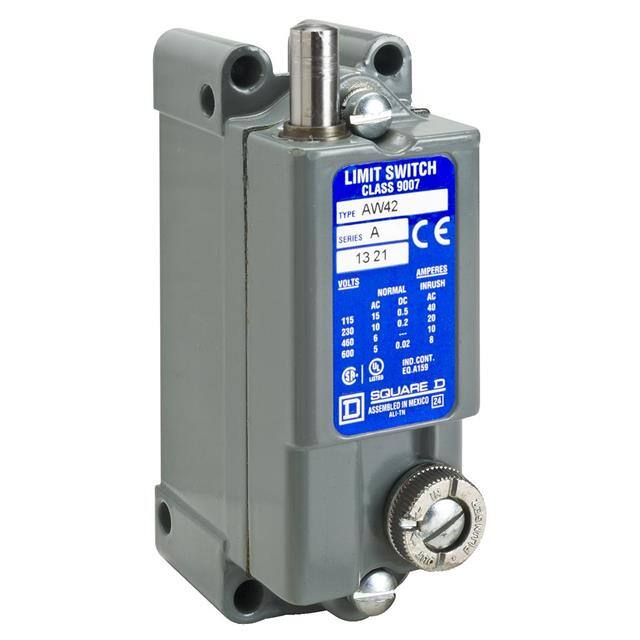

9007AW46SWITCH LIMIT SPDT-DB 15A 120V |
2,609 | - |
|
Datasheet | Square D 9007AW | Box | Active | SPDT-DB | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Top Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
GLAA20K8CSWITCH SNAP ACTION DPDT 6A 120V |
4,971 | - |
|
Datasheet | GLS | Bulk | Active | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 10gfm | - | 18° | 18° | 8° | - | -25°C ~ 85°C |
|
|
D4F-202-1DSWITCH SNAP ACT DPST-NC 15A 120V |
4,028 | - |
|
Datasheet | D4F | Bulk | Active | DPST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
208LS1SWITCH SNAP ACTION SPDT 10A 120V |
4,227 | - |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Flexible Cable | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 141gf | - | 1.125" (28.6mm) | 1.125" (28.6mm) | - | - | -29°C ~ 71°C |
|
|
WLCA2-55LDK43-NSWITCH LIMIT DIRCTWIRED AIRTIGT |
4,052 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4ER-1A22N-DTK1EJSWITCH LIMIT OIL RESISTANT 1A |
2,580 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4ER-1B22N-DTK1EJSWITCH LIMIT OIL RESISTANT 1A |
3,742 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4ER-1C21N-DTK1EJSWITCH LIMIT OIL RESISTANT 1A |
1,973 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
