Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

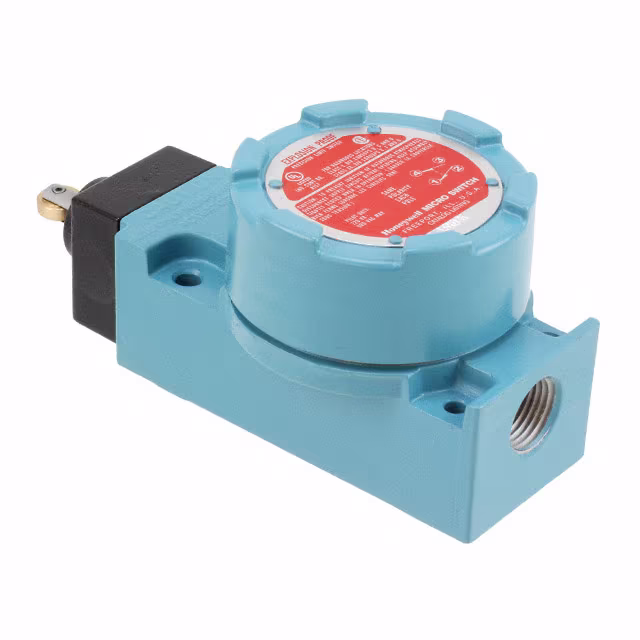

LSXD3K6SWITCH SNAP ACTION SPDT 10A 120V |
2,129 | - |
|
Datasheet | LSX | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Roller Perpendicular to Mounting Surface | 1814gf | - | 2.700" (68.6mm) | 0.070" (1.78mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
LSA6SSWITCH SNAP ACT DPDT 50MA 250V |
2,132 | - |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
LSA4SSWITCH SNAP ACT DPDT 0.05A 250V |
3,271 | - |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
D4SL-2JDG-DSWITCH SNAP ACTION |
4,960 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2KDG-DSWITCH SNAP ACTION |
1,990 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2LDG-DSWITCH SNAP ACTION |
2,069 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-2MDG-DSWITCH SNAP ACTION |
3,376 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3JDG-DNSWITCH SNAP ACTION |
1,672 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3KDG-DNSWITCH SNAP ACTION |
1,236 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3LDG-DNSWITCH SNAP ACTION |
4,161 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3MDG-DNSWITCH SNAP ACTION |
4,097 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4JDG-DSWITCH SNAP ACTION |
3,003 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4KDG-DSWITCH SNAP ACTION |
1,726 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4LDG-DSWITCH SNAP ACTION |
2,621 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4MDG-DSWITCH SNAP ACTION |
2,927 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1SE112SWITCH AERO SEALED |
1,771 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03AW16PSWITCH LIMIT WOBBLE HEAD |
3,077 | - |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
LSYEC3KY-FPSWITCH SNAP ACTION SPDT 10A 120V |
1,072 | - |
|
Datasheet | HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 2720gf | - | - | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 105°C |
|
|
LSYDB3KSWITCH SNAP ACTION SPDT 10A 120V |
3,128 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -40°C ~ 93°C |
|
LSYAB7LSWITCH SNAP ACTION DPDT 10A 120V |
3,425 | - |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
