Limit Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSN2BSWITCH SNAP ACTION DPDT 10A 120V |
2,654 | - |
|
Datasheet | HDLS | Bulk | Active | DPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 65° | 40° | 20° | -1°C ~ 121°C |
|

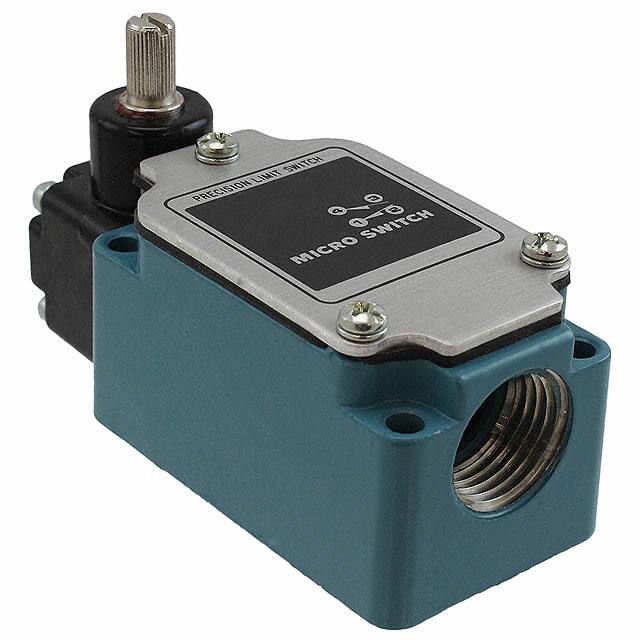

1LS197SWITCH SNAP ACTION SPDT 10A 120V |
4,330 | - |
|
Datasheet | LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 19gfm | 2.160gf | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
3SE03AT36PSWITCH LIMIT ROLLER TOP PLUNGER |
4,688 | - |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Roller Plunger | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
WLGCA2-LDK43-NSWITCH LIMIT LVR CONN LED |
1,453 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03AM16PSWITCH LIMIT SIDE ROTARY |
4,199 | - |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
51.714BFOOT SWITCHFM2SU2(2X)F1BK DPDTMO |
3,636 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.411RFOOT SWITCHFL1U2SSTDCLR 2NO/2NCS |
4,587 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GKBA10L7SWITCH SAFETY LIMIT HD |
3,024 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03BT3SWITCH LIMIT ROLLER TOP PLUNGER |
4,360 | - |
|
Datasheet | - | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Roller Plunger | - | - | - | - | - | - | - | - | - | - | - |
|
|
20PA2-CESWITCH LIMIT SPDT 10A 125V |
3,728 | - |
|
Datasheet | PA | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | 34gfm | 7.200gfm | - | 30° | 3° | 40° | - |
|
SL1-BKSWITCH SNAP ACT SPDT 100MA 125V |
4,562 | - |
|
Datasheet | SL1 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.630" (41.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4SL-3MDG-DSWITCH SNAP ACTION |
2,628 | - |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4HS109-318NSWITCH SNAP ACTION SPDT 1A 125V |
2,453 | - |
|
Datasheet | HS | Bulk | Active | SPDT | On-Mom | 1A (AC), 5A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Wire Leads | - | - | 283 ~ 624gf | 113gf | 0.615" (15.6mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.010" (0.25mm) | -54°C ~ 82°C |
|
|
9007AEQ4107LIMIT SWITCH 600V 10A LOW TEMP 1 |
3,382 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03BM1SWITCH LIMIT SIDE ROTARY |
4,550 | - |
|
Datasheet | - | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
3SE03BH1SWITCH LIMIT 2-SIDED PLUNGER |
3,606 | - |
|
Datasheet | - | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | - | - | - | Side Plunger | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03AW16PCSWITCH LIMIT WOBBLE HEAD |
3,382 | - |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | - | - | - | - | - | - | - | - | - |
|

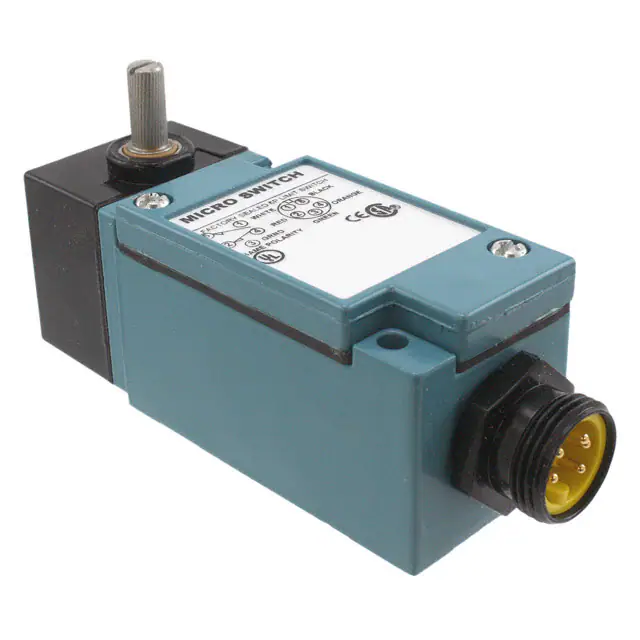

LSYAC3KQ-FPSWITCH SNAP ACTION SPDT 7A 120V |
1,091 | - |
|
Datasheet | HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 7A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
12025-0177SWITCH SNAP ACTION |
2,310 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GKBA36LXSWITCH SAFETY LIMIT HD |
3,277 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
