Position, Proximity, Speed (Modules)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Output Type | Actuator Material | Termination Style | Frequency | Voltage - Supply | Must Operate | Must Release | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

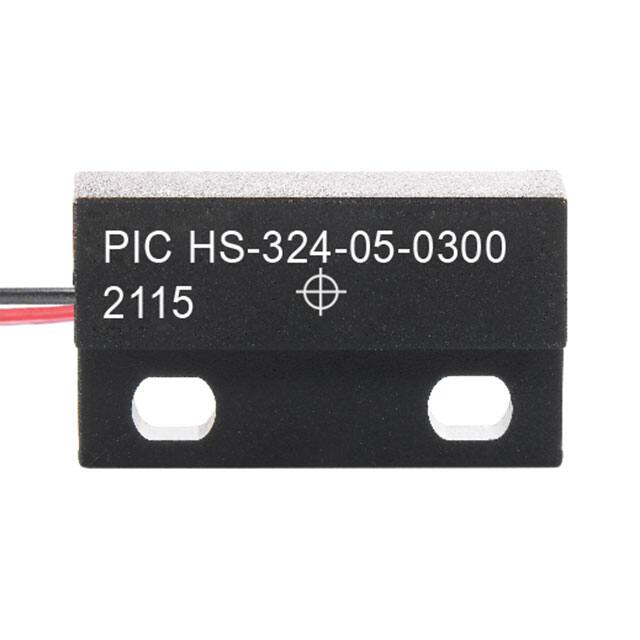

HS-324-05-0300UNIPOLAR 2 - WIRE |
4,086 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Unipolar Switch | Current | Magnet | Wire Leads | - | 3V ~ 24V | 6mT | 4mT | -20°C ~ 85°C | - | - |
|
MS-313-3-2-0500MAGNETIC REED SPST-NO WIRE LEAD |
1,153 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | 600 Hz | - | 15 ~ 20AT | - | -20°C ~ 85°C | - | - |
|
59065-1-T-02-FSENSOR REED SW SPST-NO W LEADS |
2,301 | - |
|
Datasheet | 59065 | Cylinder, Threaded | Box | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | - | - | 7.00mm | - | -40°C ~ 105°C | - | - |
|
MS-2212M-6-6-0500POWER REED SENSOR M12 METAL THRE |
4,461 | - |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | 500 Hz | - | 35 ~ 40AT | - | -20°C ~ 85°C | - | - |
|
MS-228-7-2-0500NORMALLY CLOSED REED SENSOR M8 T |
2,621 | - |
|
Datasheet | - | Cylinder, Threaded - M8 | Bulk | Active | Reed Switch | SPST-NC | Magnet | Wire Leads | 100 Hz | - | 15 ~ 20AT | - | -20°C ~ 85°C | - | - |
|
59140-3-T-02-ASENSOR REED SWITCH SPDT W LEADS |
133 |
1+：$4.83200 5+：$4.35040 10+：$4.17200 25+：$3.95808 50+：$3.81200 100+：$3.67808 500+：$3.40850 1000+：$3.30802 |
|
Datasheet | 59140 | Flange Mount | Box | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | - | 10.60mm | - | -40°C ~ 105°C | - | - |
|
|
MS-2212M-3-1-0500SENSOR REED SW SPST-NO W LEADS |
33 |
1+：$6.88000 5+：$6.21600 10+：$5.96880 25+：$5.67232 50+：$5.46976 100+：$5.28424 500+：$4.91048 1000+：$4.77119 |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | 500 Hz | - | 10 ~ 15AT | - | -20°C ~ 85°C | - | - |
|
MS-332-7-3-0500NORMALLY CLOSED REED SENSOR |
2,002 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPST-NC | Magnet | Wire Leads | 100 Hz | - | 20 ~ 25AT | - | -20°C ~ 85°C | - | - |
|
|
59070-4-S-02-FSENSOR REED SW SPST-NC W LEADS |
100 | - |
|
Datasheet | 59070 | Cylinder, Threaded | Box | Active | Reed Switch | SPST-NC | Magnet | Wire Leads | - | - | 7.50mm | - | -40°C ~ 105°C | - | - |
|
MPSA 240/30 PROX RH BLUEMINI BLUE RH 400VAC/0.5A RECTANG |
1,218 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | - | - | - | - | -40°C ~ 105°C | - | - |
|
PSB 175/30 BLUEBLUE 125VAC/0.28A RECTANGULAR PR |
1,224 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPST-NC | Magnet | Cable Leads | - | - | - | - | -20°C ~ 85°C | - | - |
|
HS-2212M-01-0300BIPOLAR 3 - WIRE |
4,558 | - |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Bipolar Switch | Voltage | Magnet | Wire Leads | - | 2.7V ~ 24V | 0.5mT | -0.5mT | -20°C ~ 85°C | - | - |
|
HS-2210M-01-0300SEN BIPOLAR SW VOLTAGE W LEADS |
53 |
1+：$7.20800 5+：$6.50880 10+：$6.25120 25+：$5.94272 50+：$5.73184 100+：$5.53856 500+：$5.14931 1000+：$5.00421 |
|
Datasheet | - | Cylinder, Threaded - M10 | Bulk | Active | Bipolar Switch | Voltage | Magnet | Wire Leads | - | 2.7V ~ 24V | 0.5mT | -0.5mT | -20°C ~ 85°C | - | - |
|
PRC 175/30 BLUEBLUE 125VAC/0.28A TUBULAR PROXIM |
4,776 | - |
|
Datasheet | - | Cylinder | Bulk | Active | Reed Switch | SPDT | Magnet | Cable Leads | - | - | - | - | -20°C ~ 85°C | - | - |
|
PRC-SP-039BLACK 125VAC/0.28A RECTANGULAR P |
1,011 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPDT | Magnet | Wire Leads | - | - | - | - | -40°C ~ 105°C | - | - |
|
PRA-SA-001 BLUEBLUE ALUMINIUM 400VAC/0.5A RECTA |
1,066 | - |
|
Datasheet | - | Flange Mount | Bulk | Active | Reed Switch | SPST-NO | Magnet | Cable Leads | - | - | - | - | -20°C ~ 85°C | - | - |
|
HS-2212M-05-0300UNIPOLAR 2 - WIRE |
1,418 | - |
|
Datasheet | - | Cylinder, Threaded - M12 | Bulk | Active | Unipolar Switch | Current | Magnet | Wire Leads | - | 3V ~ 24V | 6mT | 4mT | -20°C ~ 85°C | - | - |
|
59021-1-S-02-FSENSOR REED SW SPST-NO W LEADS |
3,048 | - |
|
Datasheet | 59021 | Probe | Box | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | - | - | 6.00mm | - | -40°C ~ 105°C | - | - |
|

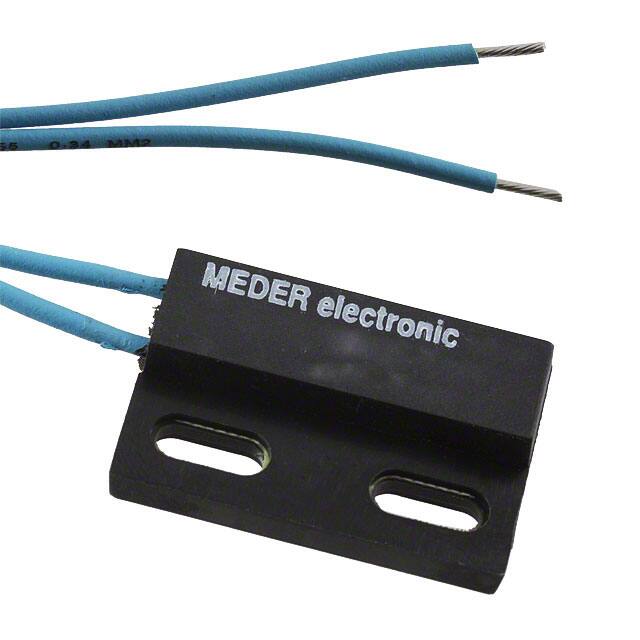

MK21M-1A66C-500WSENSOR REED SW SPST-NO W LEADS |
2,602 | - |
|
Datasheet | MK21 | Molded Body | Bulk | Active | Reed Switch | SPST-NO | Magnet | Wire Leads | - | - | 10 ~ 60AT | 4 ~ 54AT | -30°C ~ 150°C | - | - |
|

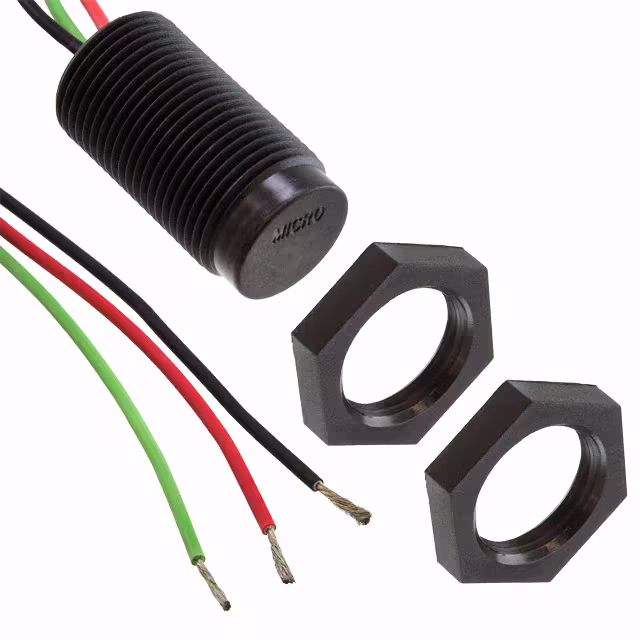

SR3C-A1SENSOR UNIPOLAR SW CUR W LEADS |
2,735 | - |
|
Datasheet | SR3 | Cylinder, Threaded | Bulk | Active | Unipolar Switch | Current | Magnet, South Pole | Wire Leads | 100 kHz | 4.5V ~ 24V | 19mT | 6mT | -40°C ~ 85°C | - | - |
