Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103MG5MAGNET 0.078" SQ X 0.040" H SQU |
2,297 | - |
|
Datasheet | MG | Tube | Not For New Designs | Square | Axial | Rare Earth | - | - | 1110G @ 0.01" | 0.078" Sq x 0.040" H (1.98mm x 1.02mm) | 200°C (TA) |
|
101MG7-BPMAGNET 0.248"D X 0.248"THICK CYL |
3,320 | - |
|
Datasheet | MG | Bulk | Active | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.248" Dia x 0.248" H (6.30mm x 6.30mm) | 250°C (TA) |
|

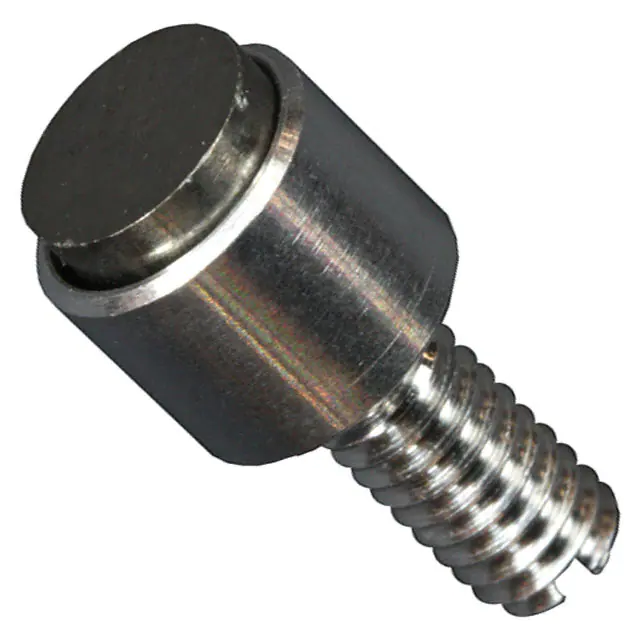

102MG11-BPMAGNET 0.311"D X 0.669"THICK CYL |
181 |
1+：$32.72800 5+：$30.03840 10+：$29.03840 25+：$27.84544 50+：$27.03024 100+：$26.28320 |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|

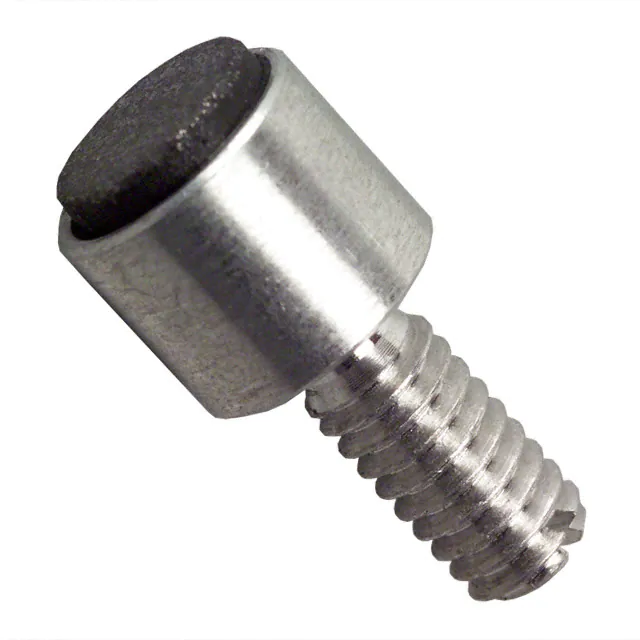

102MG11MAGNET 0.311"D X 0.669"THICK CYL |
1,451 | - |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.669" H (7.90mm x 17.0mm) | 140°C (TA) |
|
|
101MG7MAGNET 0.248"D X 0.248"THICK CYL |
115 | - |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.248" Dia x 0.248" H (6.30mm x 6.30mm) | 250°C (TA) |
|
102MG15MAGNET 0.311"D X 0.480"THICK CYL |
183 | - |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.480" H (7.90mm x 12.2mm) | 140°C (TA) |
|
103MG8MAGNET 0.220" SQ X 0.200" H SQU |
1,713 | - |
|
Datasheet | MG | Tube | Not For New Designs | Square | Axial | Rare Earth | - | - | 2620G @ 0.01" | 0.220" Sq x 0.200" H (5.60mm x 5.08mm) | 200°C (TA) |
|

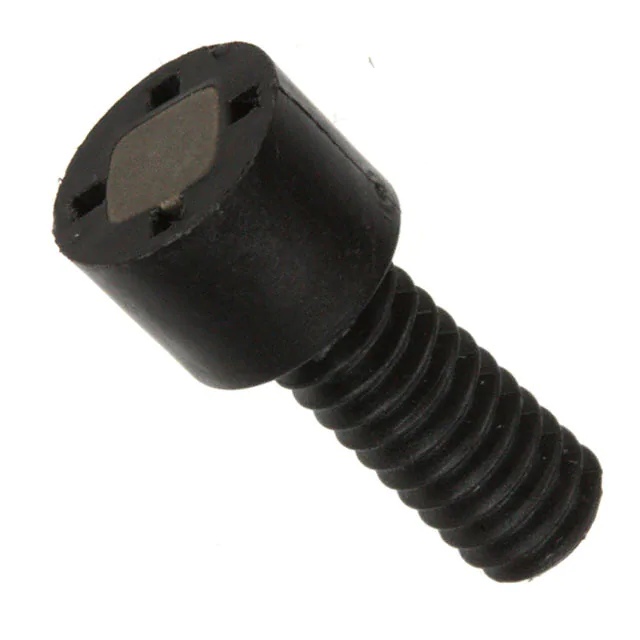

106MG10-BPMAGNET 0.400"D X 0.930"THICK CYL |
100 | - |
|
Datasheet | MG | Bulk | Active | Cylindrical | Axial | Rare Earth | - | - | 2620G @ 0.01" | 0.400" Dia x 0.930" H (10.2mm x 23.6mm) | 150°C (TA) |
|
101MG2L1MAGNET 0.125" SQ X 0.375" H RECT |
2,834 | - |
|
Datasheet | MG | Bulk | Active | Rectangular | Axial | Alnico 6 (AlNiCo) | - | - | 730G @ 0.01" | 0.125" Sq x 0.375" H (3.20mm x 9.50mm) | 250°C (TA) |
|
|
103MG9MAGNET 0.125" SQ X 0.040" H SQU |
4,220 | - |
|
Datasheet | MG | Tube | Obsolete | Square | Axial | Rare Earth | - | - | 2500G @ 0.01" | 0.125" Sq x 0.040" H (3.18mm x 1.02mm) | - |
