Phototransistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Dark (Id) (Max) | Wavelength | Viewing Angle | Power - Max | Mounting Type | Orientation | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS-PT19-315C/L177/TR8SENSOR PHOTO 630NM 2SMD |
58,703 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 5.5 V | - | 100 nA | 630nm | - | - | Surface Mount | - | -40°C ~ 85°C | - | - |
|
PT19-21C/L41/TR8SENSOR PHOTO 940NM TOP VIEW 0603 |
62,083 | - |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|
PT12-21C/TR8SENSOR PHOTO 940NM SIDE VIEW SMD |
0 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 30 V | 50 mA | 100 nA | 940nm | - | 75 mW | Surface Mount, Right Angle | Side View | -25°C ~ 85°C | - | - |
|
PT12-21B/TR8SENSOR PHOTO 940NM SIDE VIEW SMD |
0 | - |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | 30 V | 50 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Side View | -25°C ~ 85°C | - | - |
|
ALS-PT204-6C/L177SENSOR PHOTO 630NM RADIAL |
5,351 |
1+：$0.36000 5+：$0.31360 10+：$0.29600 25+：$0.27552 50+：$0.26176 100+：$0.24912 500+：$0.22376 1000+：$0.21434 5000+：$0.19540 |
|
Datasheet | - | Radial | Bag | Active | 5.5 V | - | 100 nA | 630nm | - | - | Through Hole | - | -40°C ~ 85°C | - | - |
|
PT26-51B/TR8(DGK)SENSOR 940NM TOP/SIDE VIEW 1206 |
4,646 |
1+：$0.44000 10+：$0.30240 100+：$0.21808 500+：$0.17994 1000+：$0.16741 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Universal | -25°C ~ 85°C | - | - |
|
PT42-21B/TR8SENSOR PHOTO 940NM TOP VIEW 1210 |
38,686 |
1+：$0.49600 10+：$0.34400 100+：$0.24888 500+：$0.20622 |
|
Datasheet | - | 1210 (3225 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|

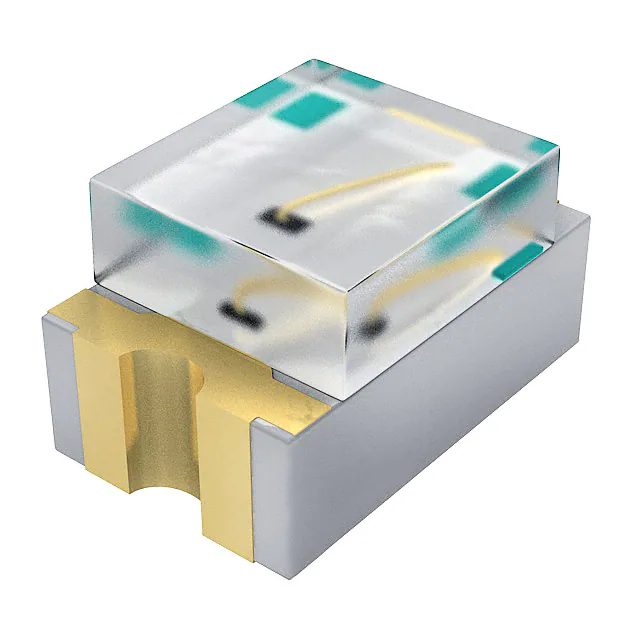

PT17-21C/L41/TR8SENSOR PHOTO 940NM TOP VIEW 0805 |
16,085 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|
PT15-21B/TR8SENSOR PHOTO 940NM TOP VIEW 1206 |
94,118 | - |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
|
PT11-21C/L41/TR8SENSOR PHOTO 940NM TOP VIEW 1206 |
115,528 | - |
|
Datasheet | - | 1206 (3016 Metric) | Tape & Reel (TR) | Active | 30 V | 20 mA | 100 nA | 940nm | - | 75 mW | Surface Mount | Top View | -25°C ~ 85°C | - | - |
