Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

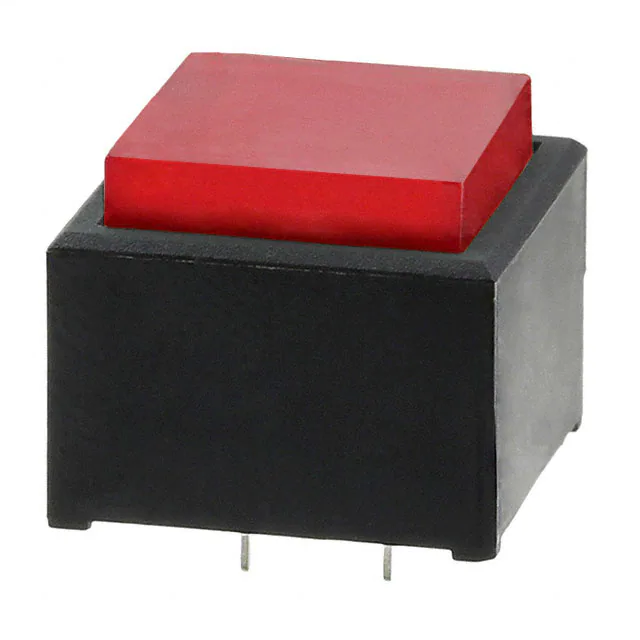

LP1S-L2-ZPILOT LIGHT 12MM SQ RED CAP RED |
4,626 | - |
|
Datasheet | - | Tube | Obsolete | LED | Red | Red | Clear | Vf (Typ), If (Max) | 2V | 30mA | Square | - | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|
LP1S-L5-ZPILOT LIGHT 12MM SQ GREEN LED |
1,195 | - |
|
Datasheet | - | Tube | Obsolete | LED | Green | Green | Clear | Vf (Typ), If (Max) | 2.1V | 25mA | Square | - | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|
LP2S-L2-ZPILOT LIGHT 12MM SQ RED LED |
3,097 | - |
|
Datasheet | - | Tube | Obsolete | LED | Red | Red | Clear | Vf (Typ), If (Max) | 2V | 30mA | Square | 0.64" x 0.64" (16.20mm x 16.20mm) | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|

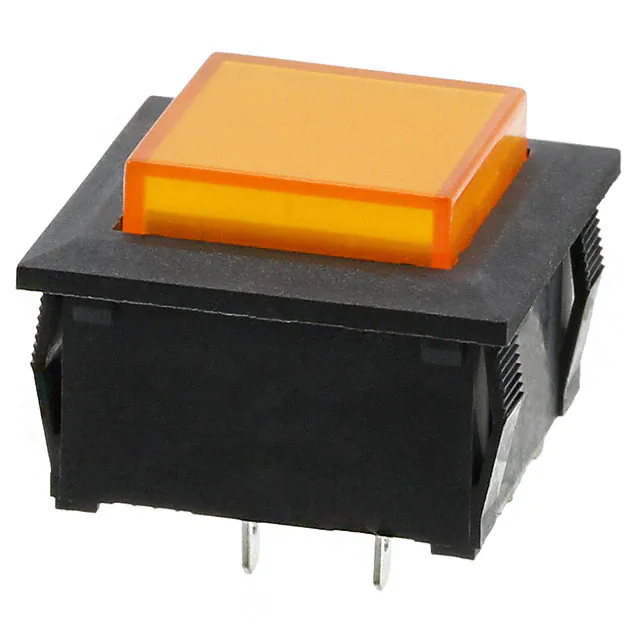

LP2S-L8-ZPILOT LIGHT 12MM SQ YELLOW LED |
2,900 | - |
|
Datasheet | - | Tube | Obsolete | LED | Yellow | Yellow | Clear | Vf (Typ), If (Max) | 2.2V | 30mA | Square | 0.64" x 0.64" (16.20mm x 16.20mm) | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|

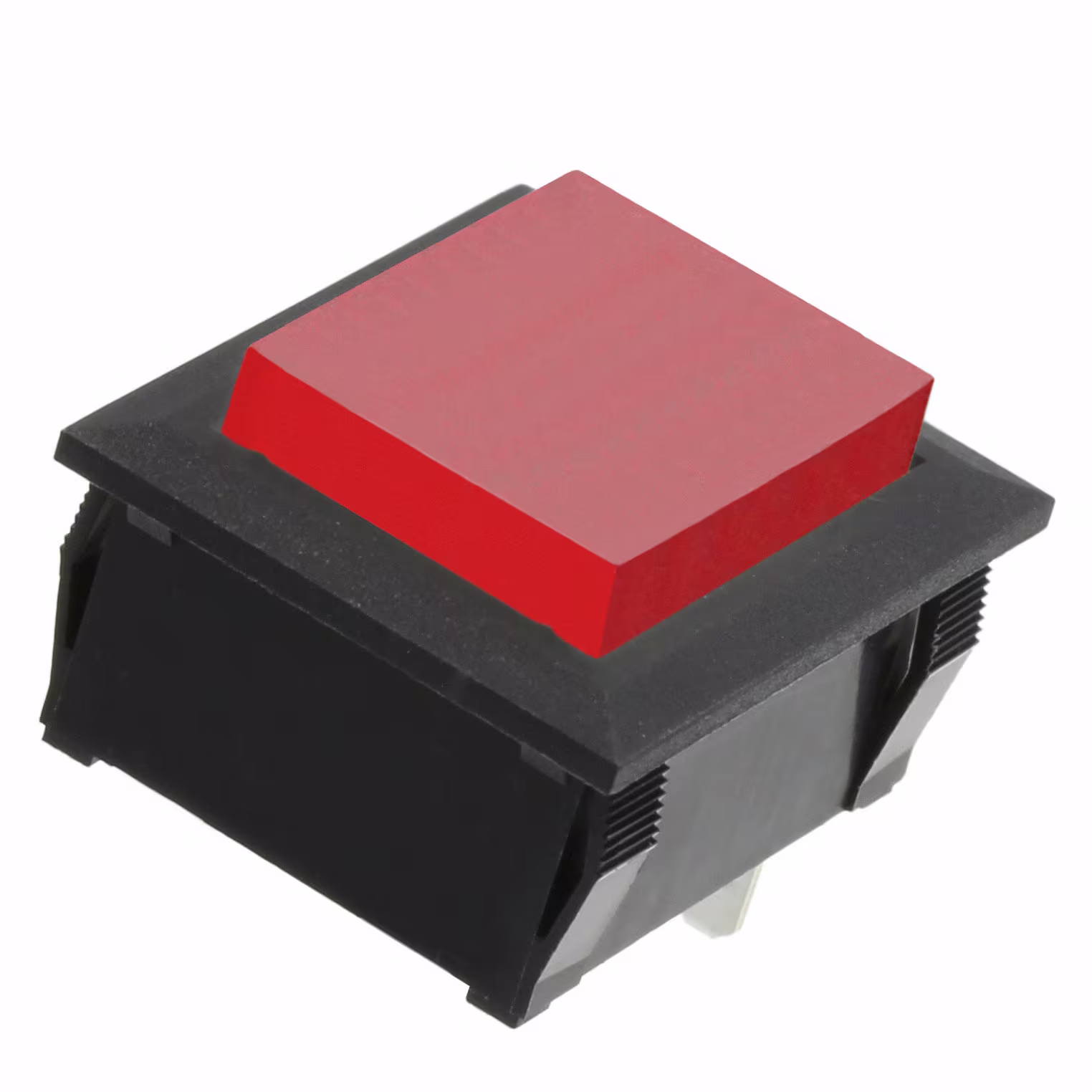

LP2W-L2-ZPILOT LIGHT 12X15.6MM RED LED |
4,210 | - |
|
Datasheet | - | Tube | Obsolete | LED | Red | Red | Clear | Vf (Typ), If (Max) | 2V | 30mA | Rectangle | 0.76" x 0.64" (19.20mm x 16.20mm) | 15.60mm x 12.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
