Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB03KW01-5D24-JBLED PANEL INDICATOR AMB 24V |
3,953 | - |
|
Datasheet | YB | Bulk | Active | LED | Amber | Amber | Diffused | DC | 24V | 10mA | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB03KW01-5F24-JBLED PANEL INDICATOR GRN 24V |
2,274 | - |
|
Datasheet | YB | Bulk | Active | LED | Green | Green | Diffused | DC | 24V | 10mA | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
YB01KW01-5C24-JCINDICATOR PB SQ RED LED 24V ILL |
2,508 | - |
|
Datasheet | YB | Box | Active | LED | Red | Red | Clear | Vf (Typ), If (Max) | 24V | 10mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB01KW01-5C12-JBLED PANEL INDICATOR RED 12V |
4,721 | - |
|
Datasheet | YB | Bulk | Active | LED | Red | White | Diffused | Vf (Typ), If (Max) | 12V | 20mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB01KW01-5D05-JBLED PANEL INDICATOR AMB 5V |
3,082 | - |
|
Datasheet | YB | Bulk | Active | LED | Amber | White | Clear | Vf (Typ), If (Max) | 5V | 25mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB01KW01-5F24-JFLED PANEL INDICATOR GRN 24V |
4,246 | - |
|
Datasheet | YB | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 24V | 10mA | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect, Solder Lug - 0.110" (2.8mm) | - | - |
|
|
YB03KW01-5F12-JBLED PANEL INDICATOR GRN 12V |
2,984 | - |
|
Datasheet | YB | Bulk | Active | LED | Green | Green | Diffused | DC | 12V | 20mA | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|

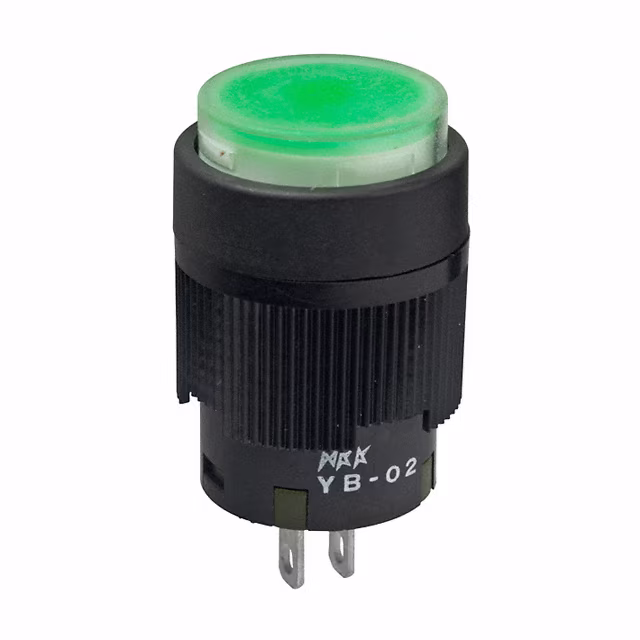

YB02KW01-5F24-JFINDICATOR PB RND GRN 24V ILLUM |
1,183 | - |
|
Datasheet | YB | Box | Active | LED | Green | Green | Clear | AC | 24V | 10mA | Round | 0.63" (16.00mm) | 15.00mm Dia | Round with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
|
UB01KW036BLED PANEL INDICATOR WHITE 2.1V |
3,962 | - |
|
Datasheet | UB | Bulk | Active | LED | White | - | - | Vf (Typ), If (Max) | 2.1V | 25mA | Square | - | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|
|
YB04KW01-2CF02-JBLED PANEL IND GRN/RED 2V |
3,264 | - |
|
Datasheet | YB | Bulk | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2V Green, 2V Red | 60mA Green, 60mA Red | Round | 0.63" (16.00mm) | 15.00mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
