Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G01PFINDICATOR SW GRN LED STRAIGHT PC |
3,418 | - |
|
Datasheet | - | Tray | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2.1V | 25mA | Rectangle | - | 3mm, T-1 | Round with Domed Top | - | - | - | - | - | - |
|
HB01KW01SW INDICATOR PB SQ BLK HSNG SLD |
2,072 | - |
|
Datasheet | HB | Box | Active | - | - | - | - | - | - | - | Round | 0.32" (8.13mm) | 7.40mm | Square with Flat Top | - | - | - | - | - | - |
|
LB03GW01IND PB ILLUM RECT GRAY SLV SLD |
4,881 | - |
|
Datasheet | LB | Box | Active | - | - | - | - | - | - | - | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
UB201KW035DINDICATOR PB SQ BRIGHT LED AMBER |
2,729 | - |
|
Datasheet | UB2 | Box | Active | LED | Amber | - | - | Vf (Typ), If (Max) | 2V | 30mA | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|

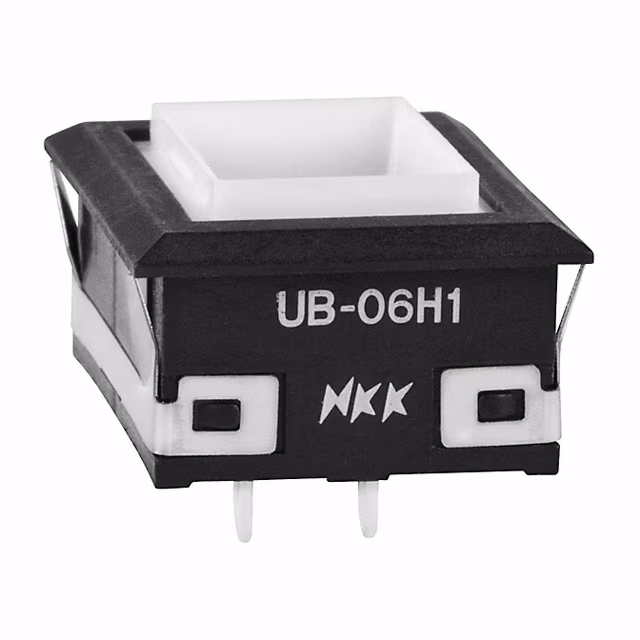

UB06KW015DINDICATOR RECT BLK HSNG AMB LED |
1,198 | - |
|
Datasheet | UB | Box | Active | LED | Amber | - | - | Vf (Typ), If (Max) | 2V | 30mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 17.00mm x 12.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
LB01KW01-5C-JCIND PB ILLUM SQ BLK RED LED |
3,012 | - |
|
Datasheet | LB | Box | Active | LED | Red | Red | Clear | Vf (Typ), If (Max) | 1.9V | 30mA | Round | 0.64" (16.26mm) | 13.20mm | Square with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|
G01PCINDICATOR SW RED LED STRAIGHT PC |
3,562 | - |
|
Datasheet | - | Tray | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 30mA | Rectangle | - | 3mm, T-1 | Round with Domed Top | - | - | - | - | - | - |
|
G01VELED PANEL INDICATOR YELLOW 2.1V |
1,990 | - |
|
Datasheet | G | Bulk | Active | LED | Yellow | - | - | Vf (Typ), If (Max) | 2.1V | 30mA | Rectangle | - | 3mm, T-1 | Round with Domed Top | - | - | - | - | - | - |
|
|
G01VFLED PANEL INDICATOR GREEN 2.25V |
3,591 | - |
|
Datasheet | G | Bulk | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2.25V | 25mA | Rectangle | - | 3mm, T-1 | Round with Domed Top | - | - | - | - | - | - |
|
|
UB04KW015F-FJLED PANEL INDICATOR GRN 2.1V |
3,012 | - |
|
Datasheet | UB | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Square | 0.64" x 0.64" (16.20mm x 16.20mm) | 12.00mm | Square with Flat Top | - | - | - | Solder Lug | - | - |
