Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

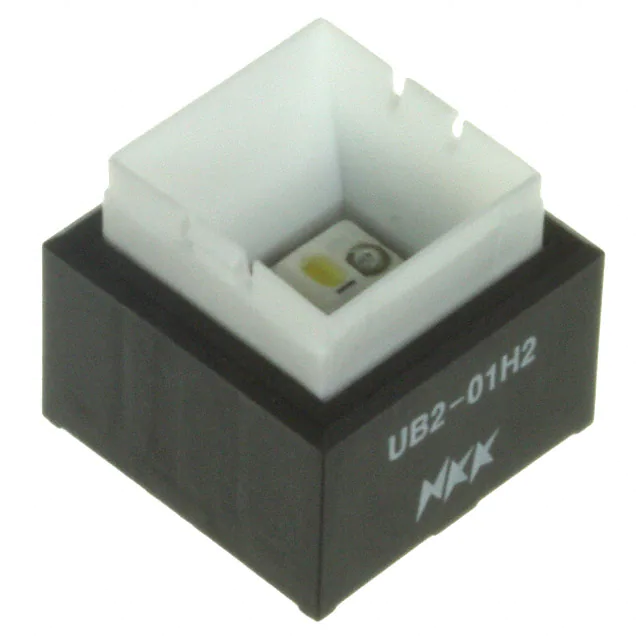

UB201KW036BINDICATOR PB SQ SUPER BRGHT WHT |
3,817 | - |
|
Datasheet | UB2 | Box | Active | LED | White | - | - | Vf (Typ), If (Max) | 3.3V | 20mA | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
UB201KW036GINDICATOR PB SQ SUPER BRGHT BLUE |
2,948 | - |
|
Datasheet | UB2 | Box | Active | LED | Blue | - | - | Vf (Typ), If (Max) | 3.6V | 30mA | - | - | 15.24mm x 15.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
G01VCINDICATOR SW RED LED VERT PC |
3,733 | - |
|
Datasheet | - | Tray | Active | LED | Red | - | - | Vf (Typ), If (Max) | 2V | 30mA | Rectangle | - | 3mm, T-1 | Round with Domed Top | - | - | - | - | - | - |
|
HB01KW01-5F-FBSW IND PB SQ GREEN LED DIFF GRN |
3,974 | - |
|
Datasheet | HB | Box | Active | LED | Green | White | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32" (8.13mm) | 7.40mm | Square with Flat Top | - | - | - | - | - | - |
|
UB04KW015FINDICATOR SQ BLK HSNG GREEN LED |
4,957 | - |
|
Datasheet | UB | Box | Active | LED | Green | - | - | Vf (Typ), If (Max) | 2.1V | 30mA | Square | 0.70" x 0.70" (17.78mm x 17.78mm) | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|
UB04KW015CINDICATOR SQ BLK HSNG RED LED |
1,317 | - |
|
Datasheet | UB | Box | Active | LED | Red | - | - | Vf (Typ), If (Max) | 1.85V | 30mA | Square | 0.70" x 0.70" (17.78mm x 17.78mm) | 12.00mm | Square with Flat Top | - | - | - | - | - | - |
|

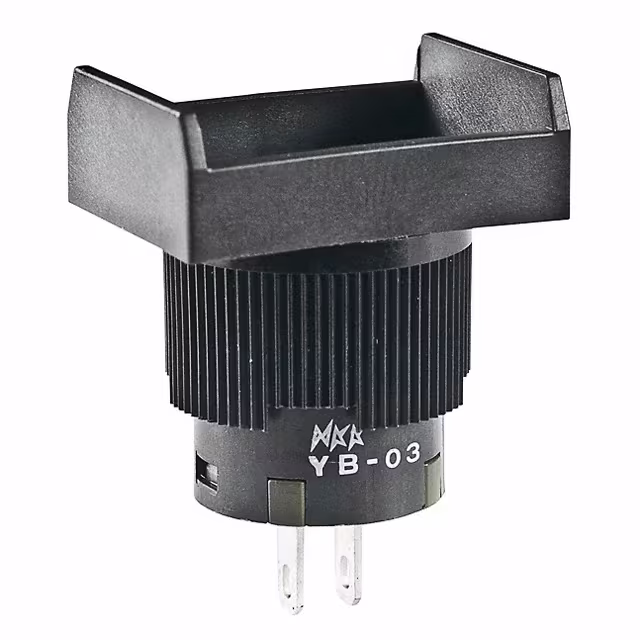

YB03KW01INDICATOR PB RECT SILVER SLD LUG |
2,929 | - |
|
Datasheet | YB | Box | Active | - | - | - | - | - | - | - | Round | 0.63" (16.00mm) | 21.00mm x 15.00mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
|

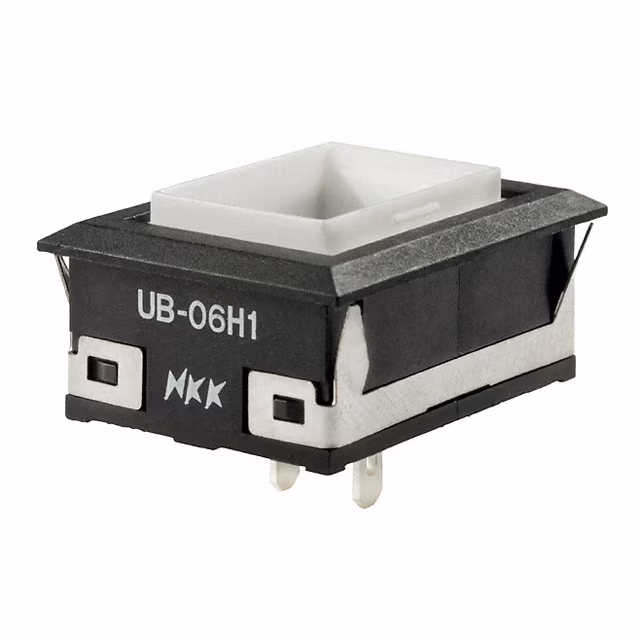

UB06KW015CINDICATOR RECT BLK HSNG RED LED |
2,141 | - |
|
Datasheet | UB | Box | Active | LED | Red | - | - | Vf (Typ), If (Max) | 1.85V | 30mA | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 17.00mm x 12.00mm | Rectangle with Flat Top | - | - | - | - | - | - |
|
HB02KW01-5C-CBSW IND PB RND RED LED DIFF SLD |
1,255 | - |
|
Datasheet | HB | Tray | Active | LED | Red | White | Diffused | Vf (Typ), If (Max) | 1.95V | 30mA | Round | 0.32" (8.13mm) | 7.40mm Dia | Round with Flat Top | - | - | - | - | - | - |
|

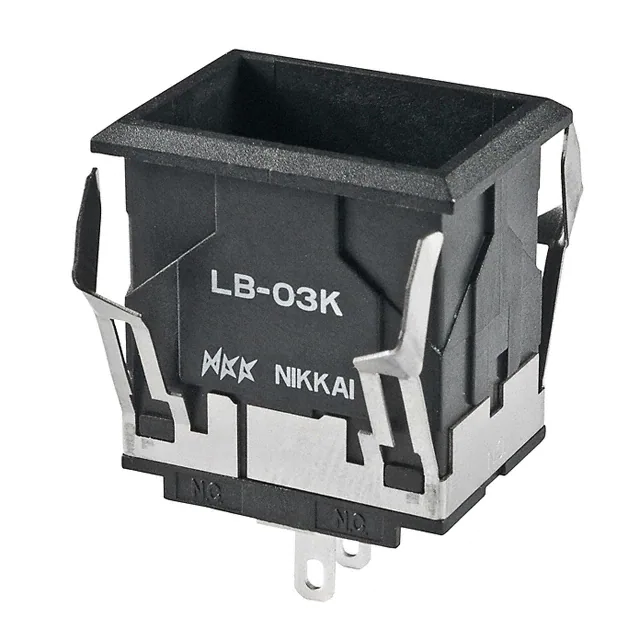

LB03KW01IND PB RECT SILVER SLD LB SER |
3,172 | - |
|
Datasheet | LB | Box | Active | - | - | - | - | - | - | - | Rectangle | 0.88" x 0.64" (22.35mm x 16.26mm) | 19.40mm x 13.20mm | Rectangle with Flat Top | - | - | - | Quick Connect - 0.110" (2.8mm) | - | - |
