Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q16F1BXXHR12E3PBLED INDICATOR 16MM |
3,440 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Q14P5CXXW12ELED INDICATOR 14MM |
2,244 | - |
|
Datasheet | Q14 | Bulk | Active | LED | White | White | Diffused | DC | 12V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 1000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q14P5CXXW24ELED INDICATOR 14MM |
4,528 | - |
|
Datasheet | Q14 | Bulk | Active | LED | White | White | Diffused | DC | 24V | 20mA | Round | 0.55" (14.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 1000mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
Q12P3BXXHR12ELED INDICATOR 12MM |
2,910 | - |
|
Datasheet | Q12 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 20mA | Round | 0.47" (12.00mm) | 8.00mm Dia | Round with Domed Top | 1900mcd | - | 100° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|

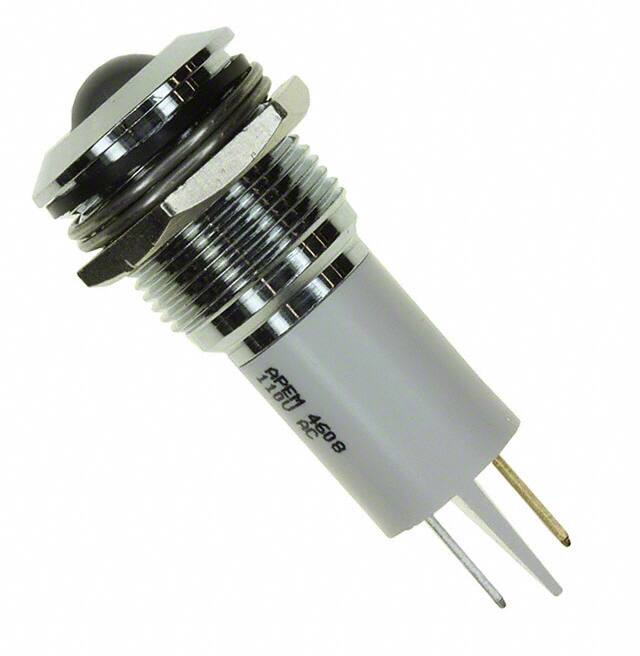

Q16P1CXXW110EINDICATOR 110V 16MM PROM WHITE |
3,967 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

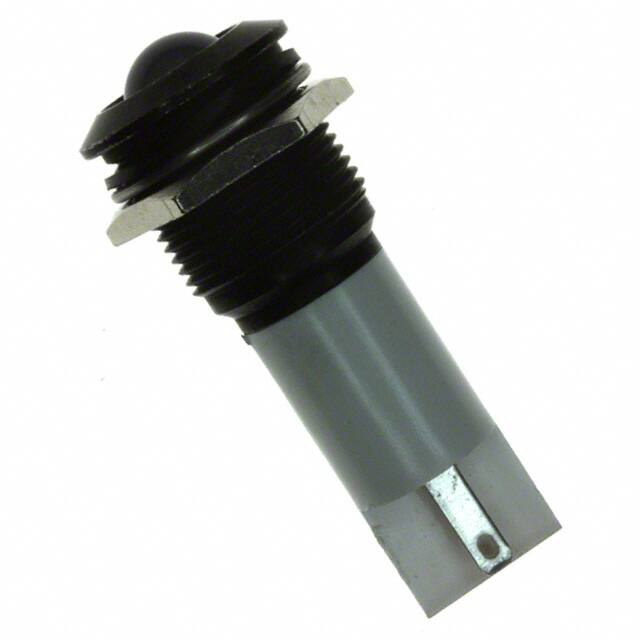

Q16P1BXXW110EINDICATOR 110V 16MM PROM WHITE |
2,107 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Domed Top | 1000mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

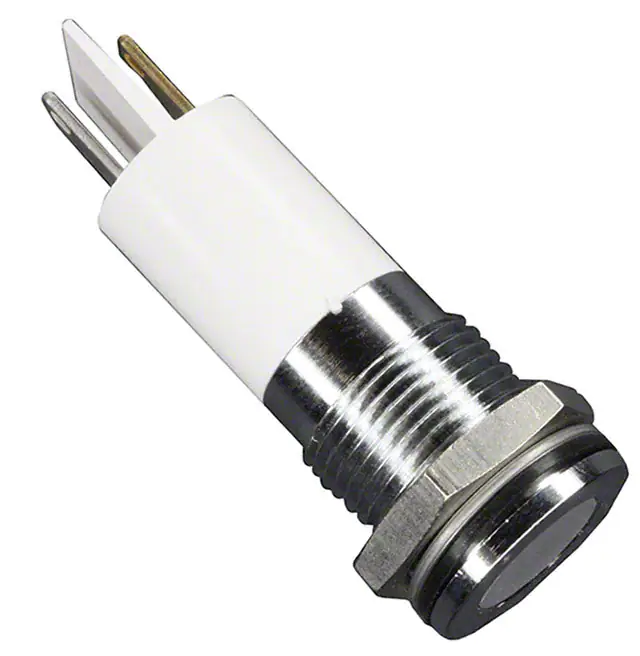

Q16F1CXXW110EINDICATOR 110V 16MM FLUSH WHITE |
1,632 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 20mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|

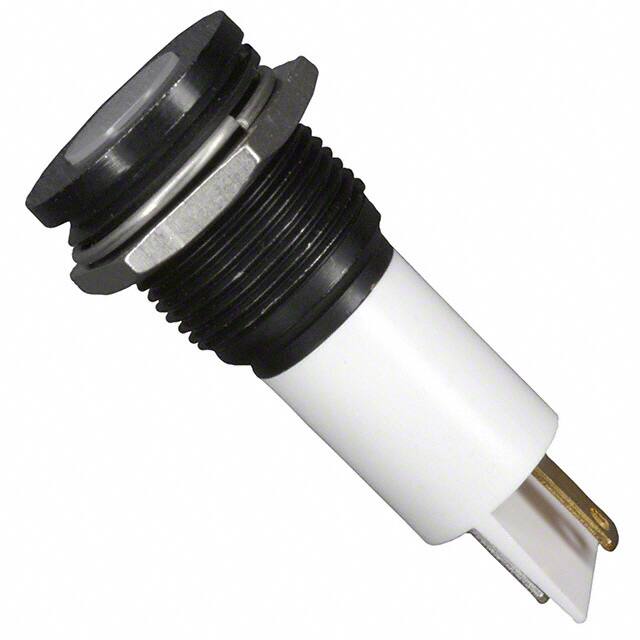

Q16F1BXXW110EINDICATOR 110V 16MM FLUSH WHITE |
4,842 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 110V | 6mA | Round | 0.63" (16.00mm) | 10.00mm Dia | Round with Flat Top | 120mcd | - | 100° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q16P1CXXW220ELED INDICATOR 16MM |
2,315 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 220V | 3mA | Round | 0.63" (16.00mm) | 10mm, T-3 1/8 | Round with Domed Top | 1000mcd | - | 100° | Solder Lug | IP67 | - |
|
|
Q16F1BXXW220ELED INDICATOR 16MM |
4,047 | - |
|
Datasheet | Q16 | Bulk | Active | LED | White | White | Diffused | AC | 220V | 3mA | Round | 0.63" (16.00mm) | 10mm, T-3 1/8 | Round with Flat Top | 150mcd | - | 100° | Solder Lug | IP67 | - |
