Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5563904304FLED PANEL MT 1" 24V WT DOME ORG |
4,525 | - |
|
Datasheet | 556 | Bulk | Active | LED | Orange | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
556150A314F1"FLAT RED LED PMI CONST INT |
1,820 | - |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
556350A304F1"DOME RED LED PMI CONST INT |
3,865 | - |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561603304FLED PNL MT 1" 12V WT FLAT GRN |
3,730 | - |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 12V | 60mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

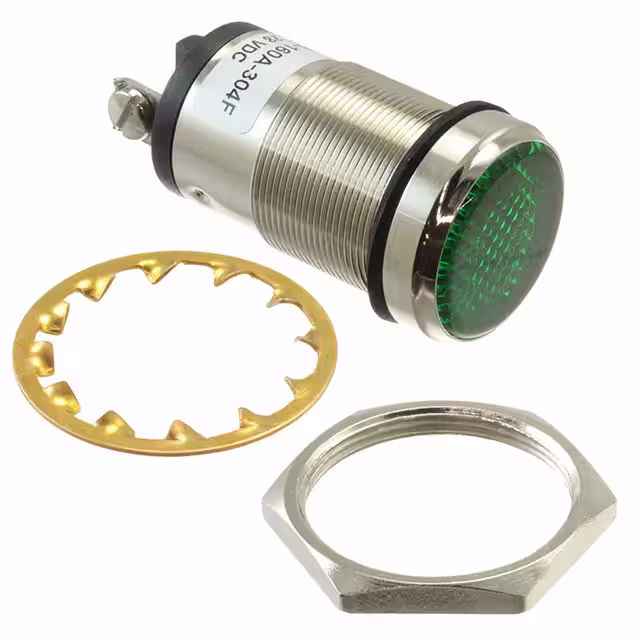

556160A304F1"FLAT GRN LED PMI CONST INT |
3,055 | - |
|
Datasheet | 556 | Bag | Active | LED | Green | Green | Clear | DC | 18V ~ 48V | 7.4mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 170mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
556360A204F1"DOME GRN LED PMI CONST INT |
3,086 | - |
|
Datasheet | 556 | Bag | Active | LED | Green | Green | Clear | DC | 18V ~ 48V | 7.4mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 170mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
6303504304F30MM DOM RD 24VDC W/TERM |
1,266 | - |
|
Datasheet | 630 | Bag | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.18" (30.00mm) | 24.89mm Dia | Round with Domed Top | 1300mcd | - | - | Screw Terminal | - | - |
|
5563606304FLED PNL MT 1" DOME GREEN 72VDC |
4,525 | - |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | DC | 72V | 16mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561503304FLED PNL MT 1" 12V WT FLAT RED |
4,072 | - |
|
Datasheet | 556 | Bulk | Active | LED | Red | Red | Fresnel | DC | 12V | 95mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
6301503304F30MM FLT RD 12VDC W/TERM |
4,595 | - |
|
Datasheet | 630 | Bag | Active | LED | Red | - | - | DC | 12V | 95mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 3000mcd | - | - | Screw Terminal | - | - |
