Power Driver Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSBB30CH60CIGBT IPM 600V 30A 27-PWRDIP MOD |
202 |
1+：$21.56800 10+：$15.67280 100+：$12.41744 |
|
Datasheet | Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Not For New Designs | IGBT | 3 Phase | 30 A | 600 V | 2500Vrms | - | - | Through Hole |
|
FDMF5062MOSFET IPM 30V 70A 39-PWRVFQFN |
2,074 |
1+：$4.49600 10+：$2.98720 100+：$2.12984 500+：$1.92670 1000+：$1.81764 |
|
Datasheet | - | 39-PowerVFQFN | Tape & Reel (TR) | Active | MOSFET | 1 Phase | 70 A | 30 V | - | - | - | Surface Mount |
|
FNB43060T2MODULE SPM 600V 30A SPMAB |
131 | - |
|
Datasheet | Motion SPM® 45 | 26-PowerDIP Module (1.024", 26.00mm) | Tube | Active | IGBT | 3 Phase | 30 A | 600 V | 2000Vrms | - | - | Through Hole |
|
STK541UC62K-EMOD IPM 600V 10A 23PWRSIP |
806 | - |
|
Datasheet | - | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Not For New Designs | IGBT | 3 Phase | 10 A | 600 V | 2000Vrms | - | - | Through Hole |
|

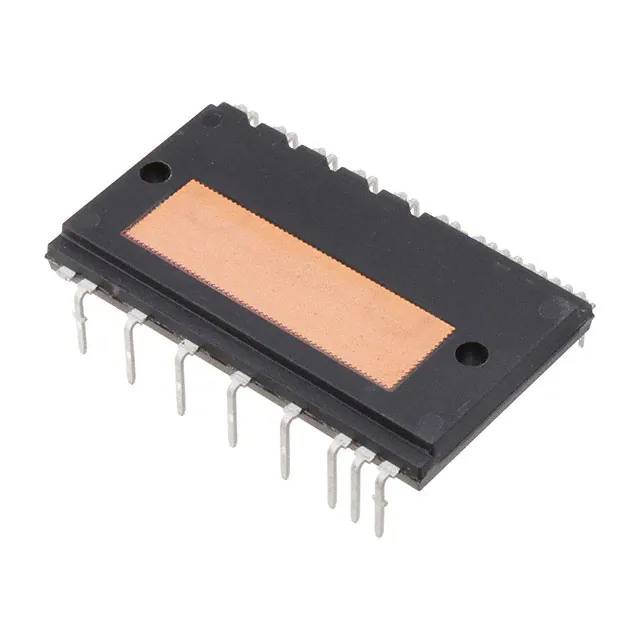

NFAM5065L4B3 PHASE INVERTER IPM |
105 | - |
|
Datasheet | - | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 650 V | 2500Vrms | - | - | - |
|

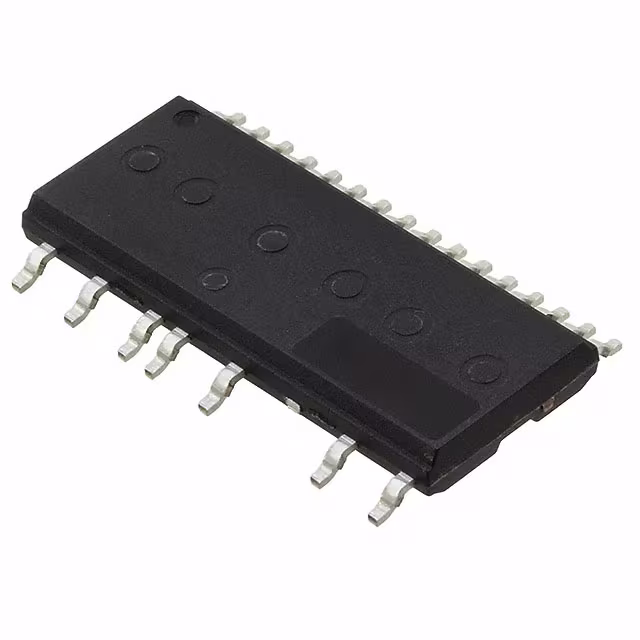

FSB50450ASMODULE SPM 500V 1.5A SPM5Q |
759 | - |
|
Datasheet | Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Active | MOSFET | 3 Phase | 1.5 A | 500 V | 1500Vrms | - | - | Surface Mount |
|
NFA50460R4BIPM SPMS 600V 4A F256-MOD23 |
162 | - |
|
Datasheet | Motion SPM® 5 | 23-PowerDIP Module (0.551", 14.00mm) | Tube | Active | IGBT | 3 Phase Inverter | 4 A | 600 V | 1500Vrms | - | - | Through Hole |
|

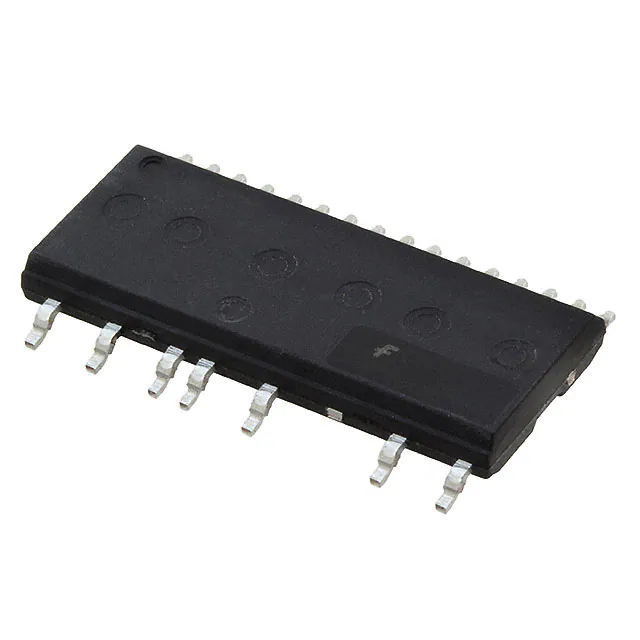

FSB50550ASMODULE SPM 500V 2A SPM5Q |
758 | - |
|
Datasheet | Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Not For New Designs | MOSFET | 3 Phase | 2 A | 500 V | 1500Vrms | - | - | Surface Mount |
|
FSB50550ABFET 3PH 500V 2A MODULE |
306 | - |
|
Datasheet | Motion-SPM® | 23-PowerDIP Module (0.644", 16.35mm) | Tube | Active | MOSFET | 3 Phase | 2 A | 500 V | 1500Vrms | - | - | Through Hole |
|
FSB50550ATMODULE SPM 500V 2A SPM5N |
157 | - |
|
Datasheet | Motion SPM® 5 | 23-PowerDIP Module (0.748", 19.00mm) | Tube | Active | MOSFET | 3 Phase | 2 A | 500 V | 1500Vrms | - | - | Through Hole |
