Power Driver Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Configuration | Current | Voltage | Voltage - Isolation | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGIPN3H60AIGBT IPM MODULE 3A 600V NDIP-26L |
272 | - |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase | 3 A | 600 V | 1000VDC | - | - | Through Hole |
|
STIPN2M50T-HLMOSFET IPM 500V 2A 26-PWRDIP MOD |
522 |
1+：$8.24800 17+：$5.25741 102+：$4.20510 510+：$3.59370 |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.573", 14.50mm) | Tube | Active | MOSFET | 3 Phase Inverter | 2 A | 500 V | 1000Vrms | - | - | Through Hole |
|
STGIPS35K60L1IGBT IPM 600V 35A 22-PWRDIP MOD |
0 |
1+：$27.52800 11+：$20.14327 110+：$17.94996 |
|
Datasheet | SLLIMM™ | 22-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 1 Phase | 35 A | 600 V | 2500Vrms | - | - | Through Hole |
|
STGIB10CH60TS-LSLLIMM(TM) - 2ND SERIES IPM, 3-P |
4,776 | - |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 15 A | 600 V | 1500Vrms | - | - | Through Hole |
|

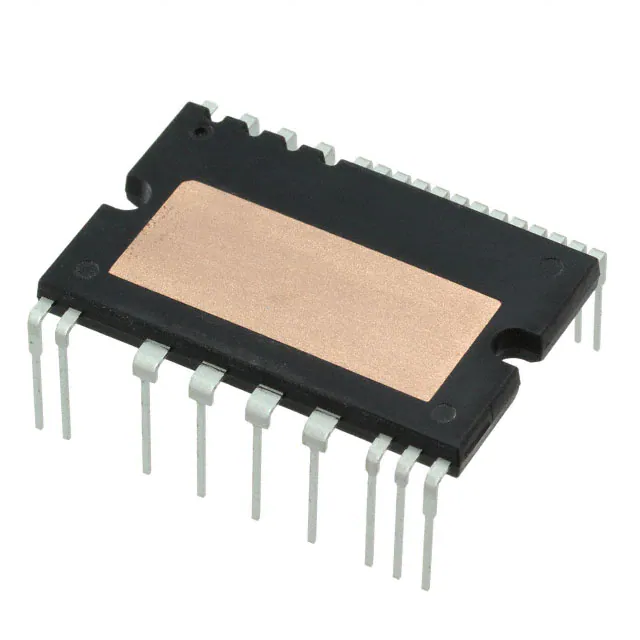

STGIB15CH60TS-LSLLIMM(TM) - 2ND SERIES IPM, 3-P |
2,815 | - |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 20 A | 600 V | 1500Vrms | - | - | Through Hole |
|
STIB1560DM2-ZSLLIMM 2ND SERIES IPM, 3-PHASE I |
100 | - |
|
Datasheet | SLLIMM 2nd | 26-PowerDIP Module (1.327", 33.70mm) | Tube | Active | MOSFET | 3 Phase Inverter | 17 A | 600 V | 1600Vrms | - | - | Through Hole |
|
|
STGIK10M120TDISCRETE |
3,413 | - |
|
Datasheet | SLLIMM | 30-PowerDIP Module (1.413", 35.90mm) | Bulk | Active | IGBT | 3 Phase Inverter | 10 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
STGIPNS3HD60-HSLLIMM-NANO SMALL LOW-LOSS INTEL |
100 | - |
|
Datasheet | SLLIMM™ | 26-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Obsolete | IGBT | 3 Phase Inverter | 3 A | 600 V | 1000Vrms | - | - | Surface Mount |
|
STGIPN3H60T-HMOD IGBT SLLIMM NANO 26-NDIP |
2,049 | - |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | IGBT | 3 Phase | 3 A | 600 V | 1000Vrms | - | - | Through Hole |
|
|
STIPQ5M60T-HZPOWER TRANSISTORS |
3,312 | - |
|
Datasheet | SLLIMM™ | 26-PowerDIP Module (0.846", 21.48mm) | Tube | Active | MOSFET | 3 Phase Inverter | 80 mA | 600 V | 1500Vrms | - | - | Through Hole |
