Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

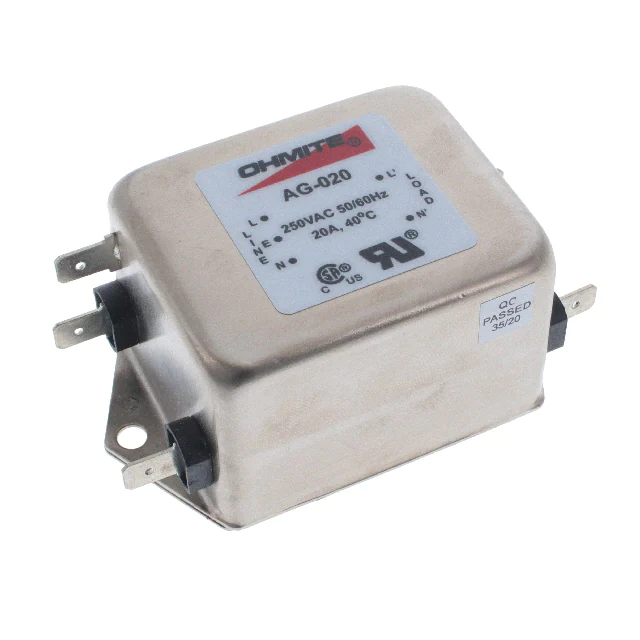

AG-020LINE FILTER 110V/250VAC 20A CHAS |
2,971 | - |
|
Datasheet | AG | Box | Obsolete | Single Phase | Single Stage | - | 110V, 250V | - | - | 20 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
AHM-L03LINE FILTER 250VAC 3A CHASS MNT |
2,224 | - |
|
Datasheet | AHML | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 3 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
AH-15LINE FILTER 110V/250VAC 15A CHAS |
3,459 | - |
|
Datasheet | AH | Box | Obsolete | Single Phase | Two Stage | - | 110V, 250V | - | - | 15 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
AGM-20LINE FILTER 250VAC 20A CHASS MNT |
3,069 | - |
|
Datasheet | AGM | Box | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
AHM-L06LINE FILTER 250VAC 6A CHASS MNT |
4,669 | - |
|
Datasheet | AHML | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 6 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
AH-L12LINE FILTER 110V/250VAC 12A CHAS |
2,826 | - |
|
Datasheet | AHL | Box | Obsolete | Single Phase | Two Stage | - | 110V, 250V | - | - | 12 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | - | - |
|
|
AHM-L10LINE FILTER 250VAC 10A CHASS MNT |
3,827 | - |
|
Datasheet | AHML | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 10 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
AHM-15LINE FILTER 250VAC 15A CHASS MNT |
3,097 | - |
|
Datasheet | AHM | Box | Obsolete | Single Phase | Two Stage | - | 250V | - | - | 15 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Quick Connect | - |
|
|
AGM-30LINE FILTER 250VAC 30A CHASS MNT |
3,662 | - |
|
Datasheet | AGM | Box | Obsolete | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | Medical | CE, UR | -25°C ~ 85°C | Chassis Mount | Threaded Post (M5) | - |
|
AG-030LINE FILTER 110V/250VAC 30A CHAS |
4,537 | - |
|
Datasheet | AG | Box | Obsolete | Single Phase | Single Stage | - | 110V, 250V | - | - | 30 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | Threaded Post (M5) | - |
