Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN402-1-02LINE FILTER 250VAC 1A TH |
139 |
1+：$11.24800 10+：$9.18000 25+：$8.46688 50+：$7.96464 200+：$7.04700 400+：$6.62814 600+：$6.39446 1000+：$6.22000 |
|
Datasheet | FN 402 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 10mH |
|
FN402-1.6-02LINE FILTER 250VAC 1.6A TH |
773 |
1+：$11.99200 10+：$9.78640 25+：$9.02656 50+：$8.49088 200+：$7.51264 400+：$7.06604 600+：$6.81694 1000+：$6.63560 |
|
Datasheet | FN 402 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 1.6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 6mH |
|
FN406-0.5-02LINE FILTER 250VAC 0.5A TH |
270 |
1+：$13.35200 10+：$10.89760 25+：$10.05120 50+：$9.45488 100+：$8.89368 250+：$8.20195 500+：$7.71390 1000+：$7.54000 |
|
Datasheet | FN 406 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 500 mA | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 24mH |
|
FN406-1-02LINE FILTER 250VAC 1A TH |
219 |
1+：$13.21600 10+：$10.78240 25+：$9.94528 50+：$9.35504 100+：$8.79984 250+：$8.11536 500+：$7.63254 1000+：$7.45075 |
|
Datasheet | FN 406 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 12mH |
|

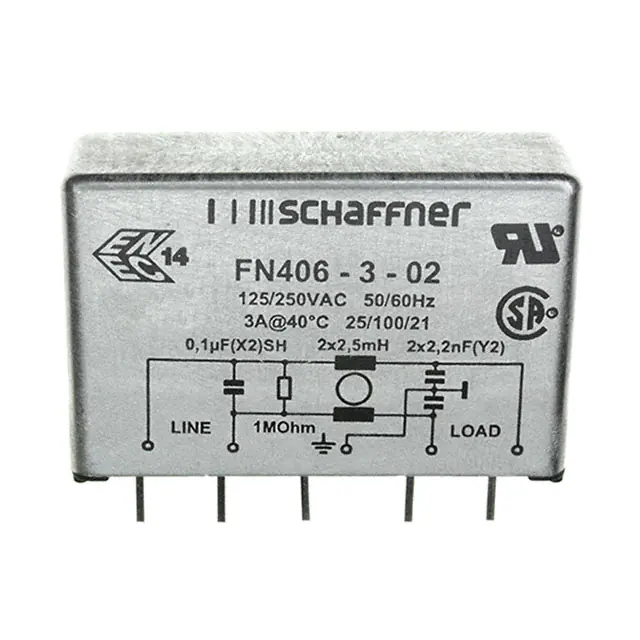

FN406-3-02LINE FILTER 250VAC 3A TH |
521 |
1+：$14.10400 10+：$11.51120 25+：$10.61696 50+：$9.98688 100+：$9.39408 250+：$8.66339 500+：$8.14795 1000+：$7.96079 |
|
Datasheet | FN 406 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 2.5mH |
|

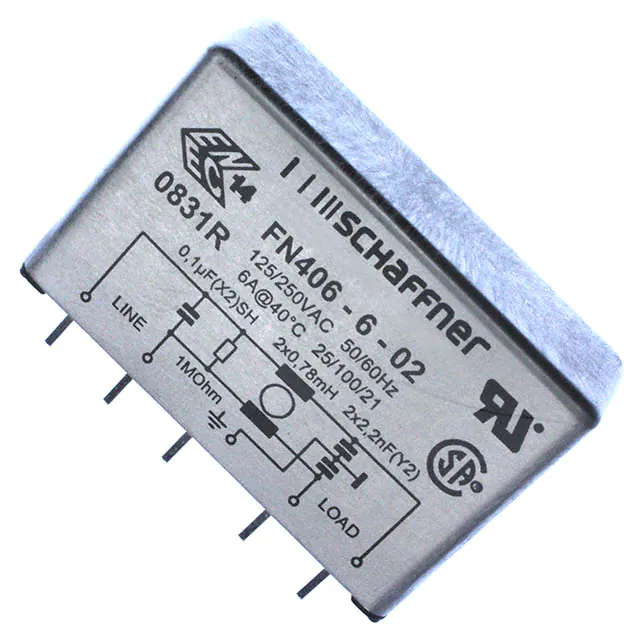

FN406-6-02LINE FILTER 250VAC 6A TH |
544 | - |
|
Datasheet | FN 406 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 780µH |
|

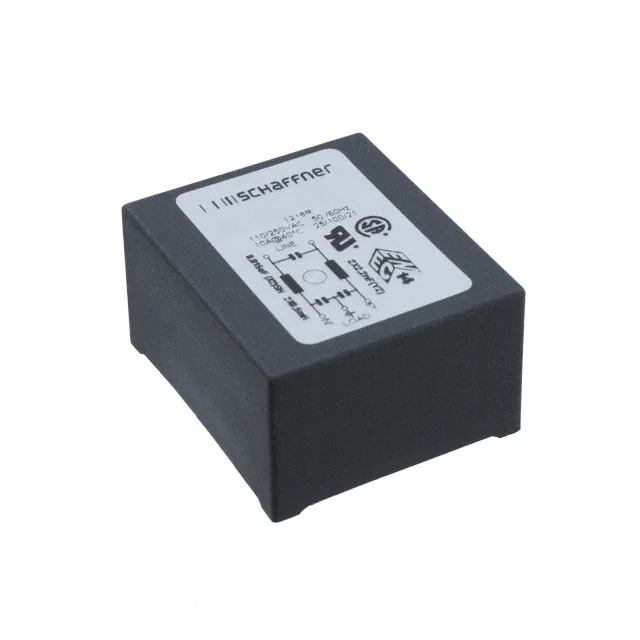

FN405-10-02LINE FILTER 250VAC 10A TH |
215 |
1+：$15.77600 10+：$12.87360 25+：$11.87360 50+：$11.16912 100+：$10.50600 250+：$9.68854 500+：$9.11181 |
|
Datasheet | FN 405 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Through Hole | PC Pins | 500µH |
|
FN2010-3-06LINE FILTER 250VAC 3A CHASS MNT |
307 | - |
|
Datasheet | FN 2010 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 3 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 2.5mH |
|
|
FN2010-6-06LINE FILTER 250VAC 6A CHASS MNT |
571 |
1+：$16.24000 10+：$13.25120 25+：$12.22176 60+：$11.31294 120+：$10.64114 300+：$9.81280 540+：$9.38945 |
|
Datasheet | FN 2010 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 6 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 1mH |
|
|
FN2010-10-06LINE FILTER 250VAC 10A CHASS MNT |
151 | - |
|
Datasheet | FN 2010 | Tray | Active | Single Phase | Single Stage | - | 250V | - | - | 10 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Quick Connect | 800µH |
