Power Line Filter Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Filter Type | Configuration | Voltage - Rated DC | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Type | Termination Style | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36KEPS10BFPWHMLINE FILTER 520VAC 36A CHASS MNT |
3,012 | - |
|
Datasheet | KEP | Box | Active | Three Phase (Wye) | Single Stage | - | 520V | - | - | 36 A | 50 ~ 60Hz | Converter | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
6609068-7LINE FILTER 50A CHASSIS MOUNT |
2,251 | - |
|
Datasheet | AYA | Bulk | Active | Three Phase (Wye) | Single Stage | - | - | 250 V | 440 V | 50 A | 50/60Hz | General Purpose | UR | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | - |
|

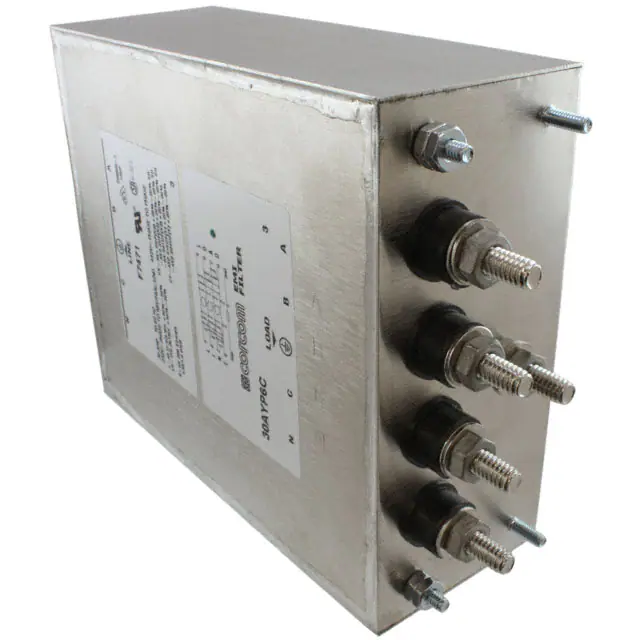

30AYP6CLINE FILTER 30A CHASSIS MOUNT |
4,987 | - |
|
Datasheet | A | Bulk | Last Time Buy | Three Phase (Wye) | Two Stage | - | - | 250 V | 440 V | 30 A | 50/60Hz | General Purpose | CSA, UL | -10°C ~ 40°C | Chassis Mount | Threaded Post (1/4-20) | 1.97mH |
|
|
55KEVD10BBSWHMLINE FILTER 520VAC 55A CHASS MNT |
3,432 | - |
|
Datasheet | KEV-BS | Box | Active | Three Phase (Wye) | Two Stage | - | 520V | - | - | 55 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
6-1609115-2LINE FILTER 80VDC 125A CHASS MNT |
0 |
1+：$238.80000 |
|
Datasheet | DC | - | Obsolete | DC | Single Stage | 80V | - | - | - | 125 A | - | General Purpose | CSA, TUV, UR | -10°C ~ 55°C | Chassis Mount | Threaded Post (1/4-20) | - |
|

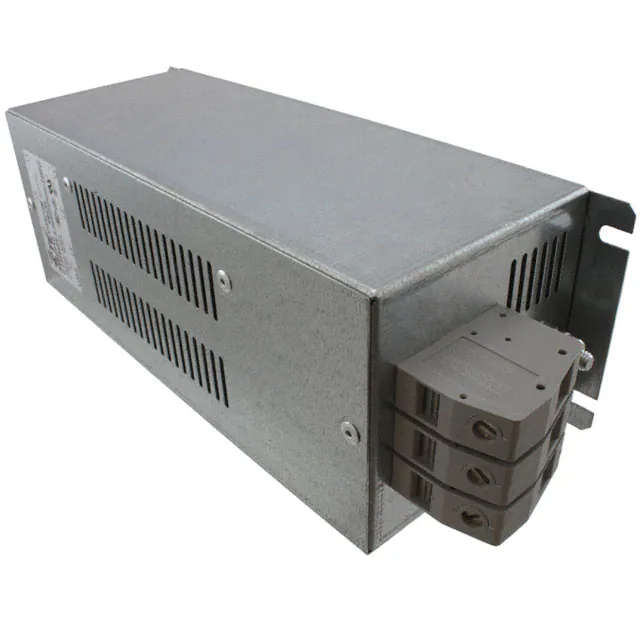

1609989-5LINE FILTER 55A CHASSIS MOUNT |
2,995 | - |
|
Datasheet | BCF | Box | Last Time Buy | Three Phase (Delta) | Two Stage | - | - | 277 V | 480 V | 55 A | 50/60Hz | Inverters, Power Drive Systems | UR, VDE | -10°C ~ 50°C | Chassis Mount | Terminal Block | - |
|
3VAQ8FLINE FILTER 250VAC 3A CHASS MNT |
2,565 | - |
|
Datasheet | AQ | Bulk | Obsolete | Single Phase | Three Stage | - | 250V | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR | -10°C ~ 40°C | Chassis Mount | IEC 320-C14, Wire Leads | - |
|
|
75KEBS6AFPDLINE FILTER 440VAC 75A CHASS MNT |
1,907 | - |
|
Datasheet | KEB | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 75 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M8) | - |
|
|
75KEMS10ABSDDMLINE FILTER 440VAC 75A CHASS MNT |
4,841 | - |
|
Datasheet | KEM-BS | Box | Active | Three Phase (Delta) | Single Stage | - | 440V | - | - | 75 A | 50 ~ 60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
75KESS6AFPWLINE FILTER 440VAC 75A CHASS MNT |
3,940 | - |
|
Datasheet | KES | Box | Active | Three Phase (Wye) | Single Stage | - | 440V | - | - | 75 A | 50/60Hz | General Purpose | CSA, UL | -25°C ~ 85°C | Chassis Mount | Threaded Post (M8) | - |
