Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRV8908QPWPRQ1IC HALF BRIDGE DRVR 6A 24HTSSOP |
2,103 | - |
|
Datasheet | - | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (8) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | 750mOhm LS, 750mOhm HS | 6A | - | 3V ~ 5.5V | 4.5V ~ 32V | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Charge Pump, Slew Rate Controlled | Over Current, Over Voltage, UVLO | Surface Mount | 24-HTSSOP |
|
DRV8718SQRVJRQ1IC HALF BRIDGE DRVR 62MA 56VQFN |
0 |
1+:$7.31200 10+:$5.68080 25+:$5.27328 100+:$4.82560 250+:$4.73075 |
|
Datasheet | - | 56-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM, SPI | Capacitive and Resistive | Power MOSFET | 4mOhm | 62mA | 62mA | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Voltage, Shoot-Through | Surface Mount, Wettable Flank | 56-VQFN (8x8) |
|

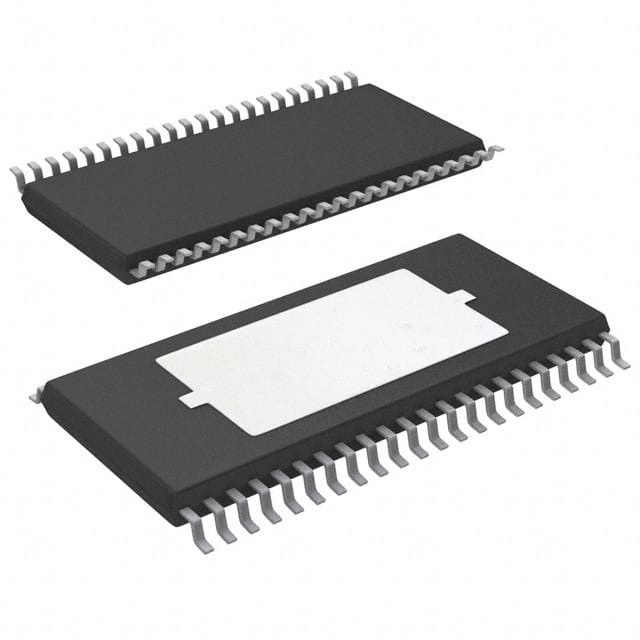

DRV8312DDWRIC HALF BRIDGE DRV 3.5A 44HTSSOP |
6,119 |
1+:$8.00000 10+:$6.22400 25+:$5.77984 100+:$5.29168 250+:$5.19494 1000+:$4.90090 |
|
Datasheet | - | 44-PowerTSSOP (0.244", 6.20mm Width) | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 80mOhm LS, 80mOhm HS | 3.5A | 6.5A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 44-HTSSOP |
|

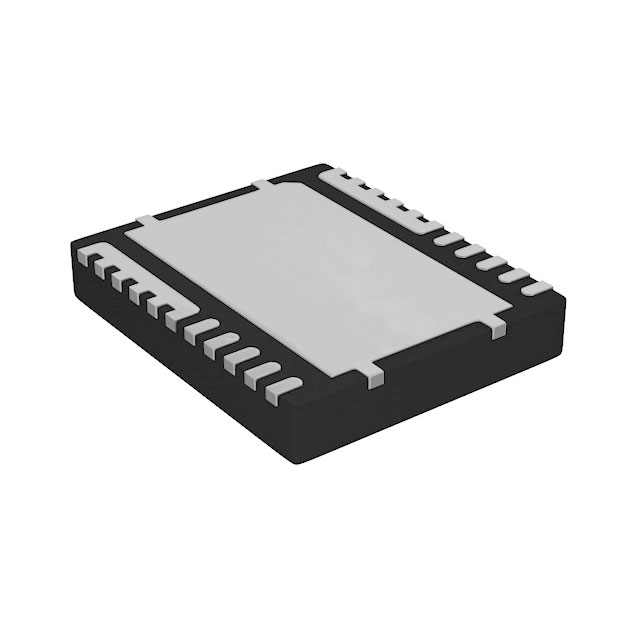

CSD95490Q5MCIC HALF BRIDGE DRIVER 75A 12VSON |
2,170 |
1+:$7.15200 10+:$5.54320 25+:$5.14112 100+:$4.69872 250+:$4.59034 1000+:$4.33051 |
|
Datasheet | NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 75A | 105A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 12-VSON-CLIP (5x6) |
|
DRV8412DDWRIC HALF BRIDGE DRVR 3A 44HTSSOP |
344 |
1+:$10.40000 10+:$8.16080 25+:$7.60160 100+:$6.98648 250+:$6.93482 1000+:$6.54228 |
|
Datasheet | - | 44-PowerTSSOP (0.244", 6.20mm Width) | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Stepper Motors | PWM | Inductive | Power MOSFET | 110mOhm LS, 110mOhm HS | 3A | 6A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 44-HTSSOP |
|
CSD95490Q5MCTIC HALF BRIDGE DRIVER 75A 12VSON |
0 |
1+:$7.72000 10+:$6.00880 25+:$5.58176 100+:$5.11192 |
|
Datasheet | NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 75A | 105A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 12-VSON-CLIP (5x6) |
|
DRV8312DDWIC HALF BRIDGE DRV 3.5A 44HTSSOP |
0 |
1+:$8.90400 10+:$6.96640 35+:$6.33280 105+:$5.93364 280+:$5.66780 525+:$5.53213 1015+:$5.41335 |
|
Datasheet | - | 44-PowerTSSOP (0.244", 6.20mm Width) | Tube | Active | Half Bridge (3) | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 80mOhm LS, 80mOhm HS | 3.5A | 6.5A | 10.8V ~ 13.2V | 0V ~ 52.5V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 44-HTSSOP |
|
LMG2100R044RARR100-V 4.4-M HALF-BRIDGE GAN FET |
0 |
1+:$7.09600 10+:$5.50560 25+:$5.10912 100+:$4.67312 250+:$4.57530 |
|
Datasheet | - | 17-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive, Resistive | NMOS | 4.4mOhm | 35A | 125A | 4.75V ~ 5.25V | 0V ~ 90V | -40°C ~ 125°C | - | - | Bootstrap Circuit | UVLO | Surface Mount | 17-VQFN-FCRLF (5.5x4.5) |
|
DRV3946QPWPRQ1AUTOMOTIVE 12-V CONTACTOR DRIVER |
1,393 |
1+:$13.60800 10+:$10.77120 25+:$10.06304 100+:$9.31560 500+:$8.78832 |
|
Datasheet | - | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge | Relays, Solenoids | SPI | Inductive | - | 37mOhm LS, 57mOhm HS | - | - | 12V | 12V (Max) | -40°C ~ 125°C (TA) | - | - | Status Flag | - | Surface Mount | 28-HTSSOP |
|

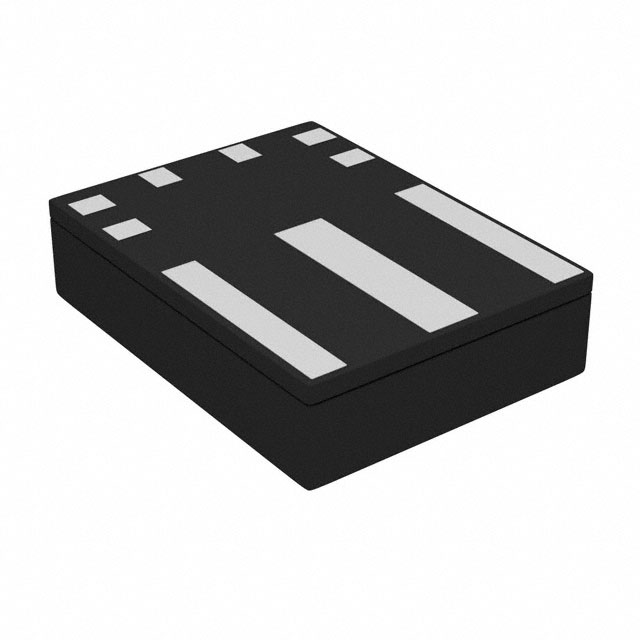

LMG5200MOFRIC HALF BRIDGE DRIVER 10A 9QFN |
54 |
1+:$12.56000 10+:$9.91920 25+:$9.25888 100+:$8.53456 500+:$8.05147 |
|
Datasheet | - | 9-QFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic | Inductive | Gallium Nitride (GaN) FETs | 15mOhm LS, 15mOhm HS | 10A | - | 4.75V ~ 5.25V | 80V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 9-QFN (8x6) |
