Supervisors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Type | Number of Voltages Monitored | Voltage - Threshold | Output | Reset | Reset Timeout | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

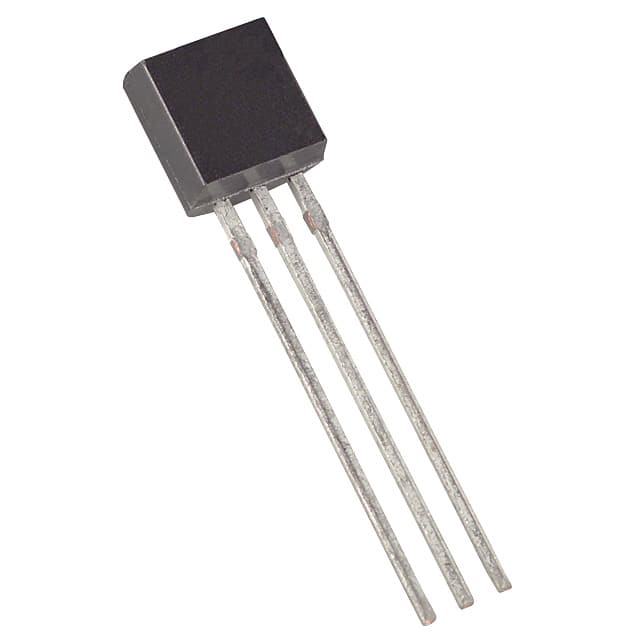

DS1233D-5+IC SUPERVISOR 1 CHANNEL TO92-3 |
2,270 | - |
|
Datasheet | EconoReset | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 4.625V | Open Drain or Open Collector | Active Low | 250ms Minimum | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|

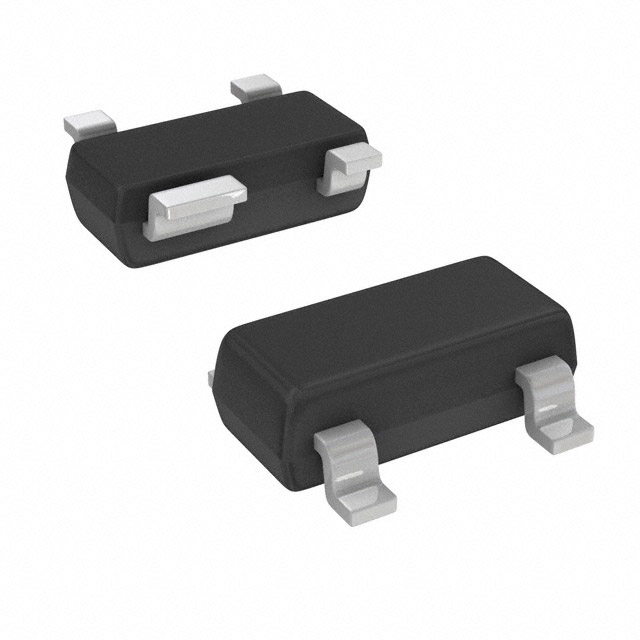

MAX6315US29D3+TIC SUPERVISOR 1 CHANNEL SOT143-4 |
6,793 |
1+：$3.90400 10+：$2.97120 25+：$2.73760 100+：$2.48032 250+：$2.36230 |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 2.93V | Open Drain or Open Collector | Active Low | 140ms Minimum | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-143-4 |
|
|
MAX836EUS+TIC SUPERVISOR 1 CHANNEL SOT143-4 |
7,906 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | Adjustable/Selectable | Open Drain or Open Collector | Active Low | 80µs Typical Propagation Delay | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-143-4 |
|
MAX6895AAZT+TIC SUPERVISOR 1 CHANNEL TSOT23-6 |
1,004 | - |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Not Verified | Sequencer | 1 | Adjustable/Selectable | Push-Pull, Totem Pole | Active High | Adjustable/Selectable | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
MAX16125WTEG00+TIC SUPERVISOR 1 CHANNEL 6WLP |
5,000 | - |
|
Datasheet | - | 6-WFBGA, WLBGA | Tape & Reel (TR) | Active | Not Verified | Monitor | 1 | - | Open Drain or Open Collector | Active Low | 57.6ms Minimum | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-WLP (1.24x0.84) |
|
DS1233DZ-10+T&RIC SUPERVISOR 1 CHANNEL SOT223-3 |
3,732 |
1+：$3.28000 10+：$2.48160 25+：$2.28128 100+：$2.06112 250+：$1.95603 500+：$1.94616 |
|
Datasheet | EconoReset | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 4.375V | Open Drain or Open Collector | Active Low | 250ms Minimum | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-223-3 |
|
MXD1818UR22+TIC SUPERVISOR 1 CHANNEL SOT23-3 |
11,889 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 2.18V | Open Drain, Bidirectional | Active Low | 100ms Minimum | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MAX6467US22D3+TIC SUPERVISOR 1 CHANNEL SOT143-4 |
6,689 | - |
|
Datasheet | - | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 2.188V | Open Drain or Open Collector | Active Low | 150ms Minimum | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-143-4 |
|
|
DS1813R-10+T&RIC SUPERVISOR 1 CHANNEL SOT23-3 |
9,164 | - |
|
Datasheet | EconoReset | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 4.35V | Open Drain or Open Collector | Active Low | 100ms Minimum | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
DS1818R-10+T&RIC SUPERVISOR 1 CHANNEL SOT23-3 |
9,870 | - |
|
Datasheet | EconoReset | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Not Verified | Simple Reset/Power-On Reset | 1 | 2.88V | Open Drain or Open Collector | Active Low | 100ms Minimum | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
