Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,TO-226_straightlead.jpg)
|
AN8025IC REG LINEAR 2.5V 50MA 3SSIP |
2,638 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 2.5V | - | - | 50mA | 1 mA | - | 72dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8003IC REG LINEAR 3V 50MA 3SSIP |
2,765 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 3V | - | - | 50mA | 1 mA | - | 70dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8035IC REG LINEAR 3.5V 50MA 3SSIP |
4,911 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 3.5V | - | - | 50mA | 1 mA | - | 69dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8004IC REG LINEAR 4V 50MA 3SSIP |
3,260 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 4V | - | - | 50mA | 1 mA | - | 67dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8045IC REG LINEAR 4.5V 50MA 3SSIP |
4,569 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 4.5V | - | - | 50mA | 1 mA | - | 66dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8005IC REG LINEAR 5V 50MA 3SSIP |
4,065 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | - | 50mA | 1 mA | - | 64dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8006IC REG LINEAR 6V 50MA 3SSIP |
1,619 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 6V | - | - | 50mA | 1.2 mA | - | 63dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8008IC REG LINEAR 8V 50MA 3SSIP |
2,901 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 8V | - | - | 50mA | 1.3 mA | - | 61dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8009IC REG LINEAR 9V 50MA 3SSIP |
4,648 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 9V | - | - | 50mA | 1.4 mA | - | 59dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
|
AN8010IC REG LINEAR 10V 50MA 3SSIP |
1,538 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | Positive | Fixed | 1 | 20V | 10V | - | - | 50mA | 1.4 mA | - | 58dB (120Hz) | - | Over Current | -30°C ~ 125°C | - | - | Through Hole | 3-SSIP |
|
AN80L18RMSIC REG LINEAR 1.8V 150MA MINI-5D |
4,748 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 1.8V | - | - | 150mA | 5 mA | - | 70dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L22RMSIC REG LINEAR 2.2V 150MA MINI-5D |
2,125 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 2.2V | - | - | 150mA | 5 mA | - | 69dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L25RMSIC REG LINEAR 2.5V 150MA MINI-5D |
3,382 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 2.5V | - | - | 150mA | 5 mA | - | 68dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L30RMSIC REG LINEAR 3V 150MA MINI-5D |
1,534 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 3V | - | - | 150mA | 5 mA | - | 68dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L33RMSIC REG LINEAR 3.3V 150MA MINI-5D |
4,524 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 3.3V | - | - | 150mA | 5 mA | - | 67dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L34RMSTXIC REG LINEAR 3.4V 150MA MINI-5D |
1,021 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14.5V | 3.4V | - | - | 150mA | 5 mA | - | 66dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|
|
AN80L50RMSIC REG LINEAR 5V 150MA MINI-5D |
2,531 | - |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 14.5V | 5V | - | - | 150mA | 5 mA | - | 64dB (120Hz) | Enable | Over Current | -30°C ~ 85°C | - | - | Surface Mount | MINI-5D |
|

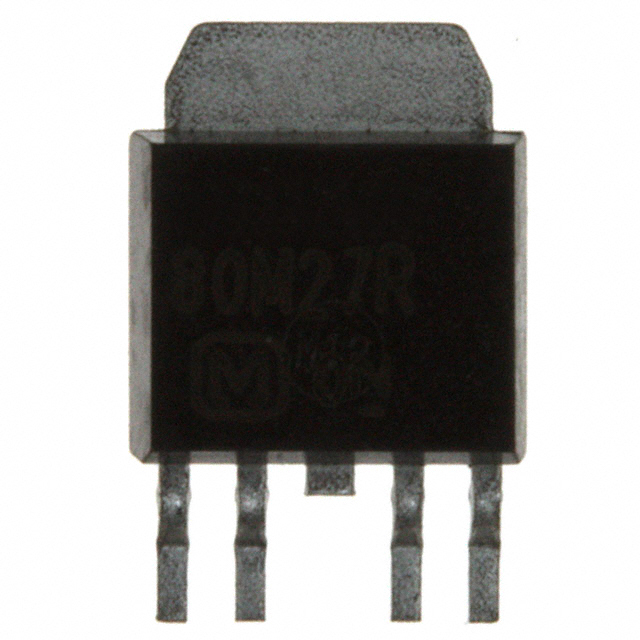

AN80M27RSPIC REG LINEAR 2.7V 500MA SP-5SUA |
4,592 | - |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Bulk | Obsolete | Positive | Fixed | 1 | 14V | 2.7V | - | - | 500mA | 3 mA | - | 58.8dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -30°C ~ 85°C | - | - | Surface Mount | SP-5SUA |
|
MAX1793EUE18IC REG LIN POS ADJ 1A 16TSSOP |
2,370 | - |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (1.8V) | 5V | - | 1A | 200 µA | - | - | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP-EP |
|
AN78L18MIC REG LINEAR 18V 100MA 3HSIP |
1,074 | - |
|
Datasheet | - | TO-243AA | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 18V | - | - | 100mA | 3.5 mA | - | 46dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | 3-HSIP |
