Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KA78R05CTSTUIC REG LINEAR 5V 1A TO220F-4L |
4,322 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
KA317TUIC REG LIN POS ADJ 1.5A TO220-3 |
1,030 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | - | - | 75dB ~ 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
KA78R12CTUIC REG LINEAR 12V 1A TO220F-4L |
3,185 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA78R12CTSTUIC REG LINEAR 12V 1A TO220F-4L |
3,836 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA78R09CTUIC REG LINEAR 9V 1A TO220F-4L |
4,625 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA78R15CTUIC REG LINEAR 15V 1A TO220F-4L |
2,616 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
LM317D2TXMIC REG LINEAR POS ADJ 1.5A D2PAK |
2,207 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 1.5A | 12 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
KA78R33CTUIC REG LINEAR 3.3V 1A TO220F-4L |
2,186 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 3.3V | - | 0.5V @ 1A | 1A | 10 mA | - | - | Enable | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA337TUIC REG LIN NEG ADJ 1.5A TO220-3 |
3,309 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
KA278R33CTUIC REG LINEAR 3.3V 2A TO220F-4L |
4,990 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 3.3V | - | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA278R12CTUIC REG LINEAR 12V 2A TO220F-4L |
2,024 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA278R05CTUIC REG LINEAR 5V 2A TO220F-4L |
2,151 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA278R09CTUIC REG LINEAR 9V 2A TO220F-4L |
3,681 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 9V | - | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA278R51CTUIC REG LINEAR 5.1V 2A TO220F-4L |
2,952 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 5.1V | - | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
KA78RM33TUIC REG LINEAR 3.3V 500MA TO220-3 |
2,717 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 3.3V | - | 0.6V @ 500mA | 500mA | 5 mA | 10 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
KA278RA05CTUIC REG LIN POS ADJ 2A TO220F-4L |
3,732 | - |
|
Datasheet | - | TO-220-4 Full Pack | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 35V | 1.25V (5V) | 32V | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L |
|
|
KA78T15IC REG LINEAR 15V 3A TO220-3 |
1,509 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | Positive | Fixed | 1 | 40V | 15V | - | 2.5V @ 3A | 3A | 6 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
KA78T12TUIC REG LINEAR 12V 3A TO220-3 |
3,349 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 3A | 3A | 6 mA | - | 67dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|

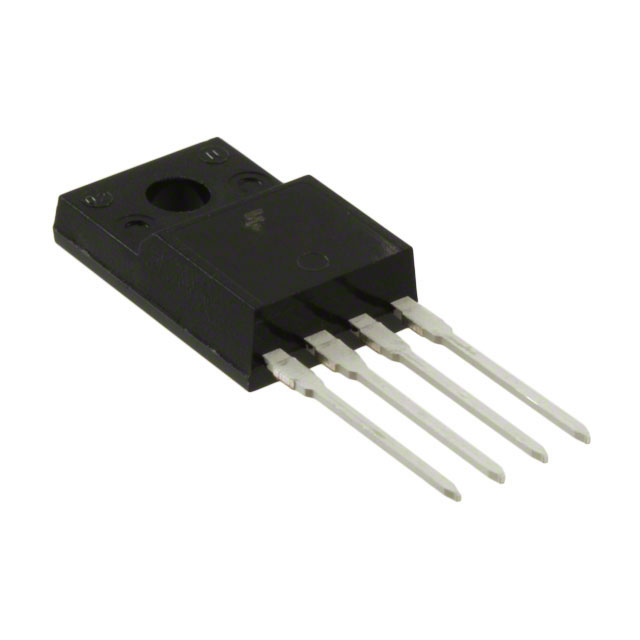

KA278RA05CYDTUIC REG LIN POS ADJ 2A TO220F-4L |
3,219 | - |
|
Datasheet | - | TO-220-4 Full Pack, Formed Leads | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 35V | 1.25V (5V) | 32V | 0.5V @ 2A | 2A | 10 mA | - | - | - | Over Current, Over Temperature, Over Voltage, Short Circuit | -20°C ~ 80°C | - | - | Through Hole | TO-220F-4L (Forming) |
|
|
LM317AHVTIC REG LIN POS ADJ 1.5A TO220-3 |
1,046 | - |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 60V | 1.2V | 57V | - | 1.5A | 12 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
